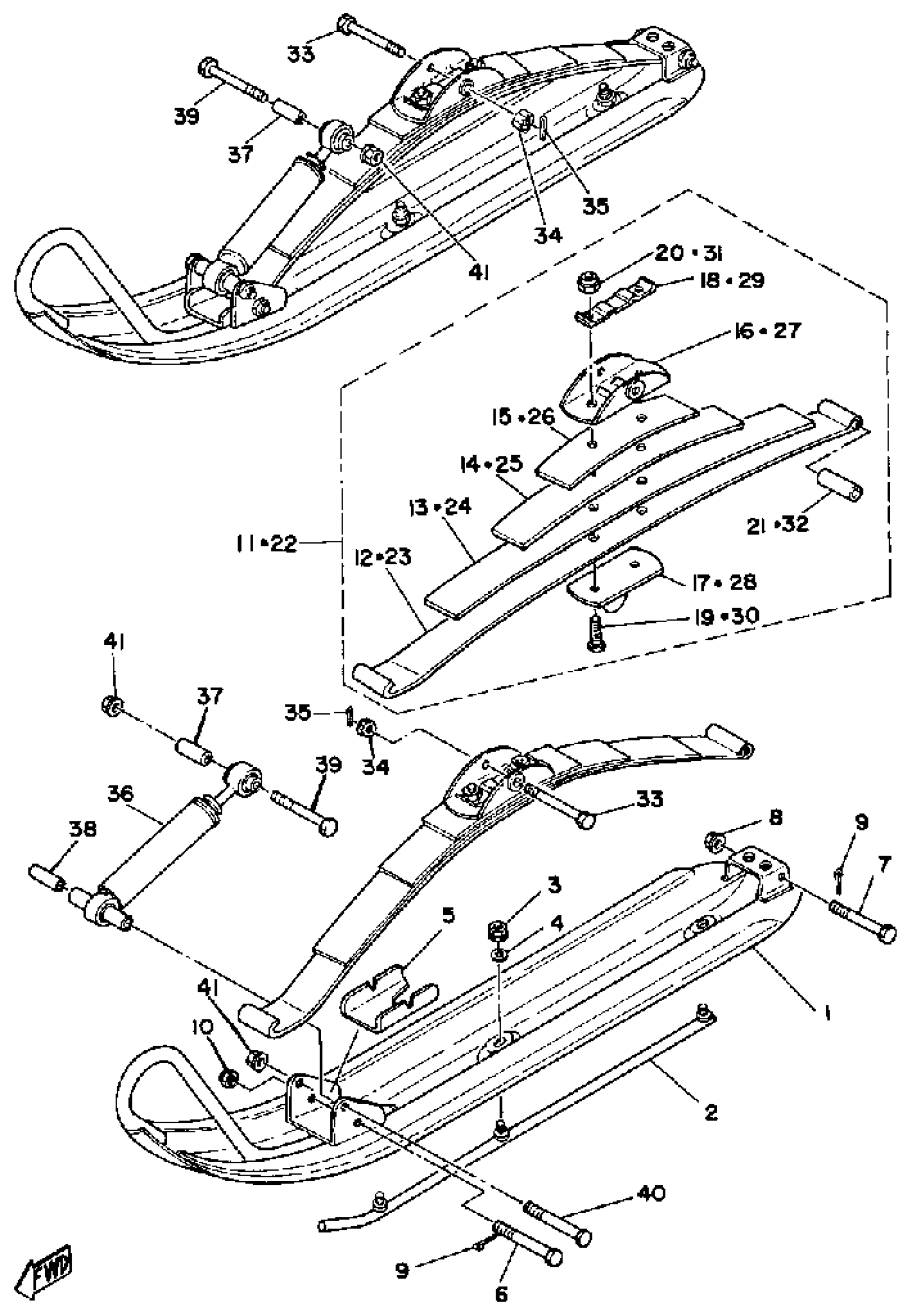

1980 Yamaha ET300D SKI Diagram
Find the part on the SKI diagram for your 1980 Yamaha ET300D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
2
SKI RUNNER, 1
888-23731-01-XX
4
WASHER(6TC)
92907-08200-00
11
SPRING ASY 1
8V2-23760-00-00
12
LEAF 1
888-23761-10-00
13
LEAF 2
865-23762-10-00
14
LEAF 3
888-23763-00-00
15
. LEAF 5
865-23771-00-00
16
. SADDLE 1
806-23766-00-00
19
. BOLT
90109-105E1-00
21
COLLAR
90387-08478-00
22
SPRING ASY 2
8V2-23770-00-00
23
LEAF 1
888-23761-10-00
24
LEAF 2
865-23762-10-00
25
LEAF 3
888-23763-00-00
26
. LEAF 5
865-23771-00-00
27
. SADDLE 1
806-23766-00-00
30
. BOLT
90109-105E1-00
32
COLLAR
90387-08478-00
33
BOLT, WITH HOLE
90102-10023-00
34
NUT, SLOTTED
95306-10900-00
36
SHOCK ABSORBER ASSEMBLY
8J5-23350-00-00
