1980 Yamaha ET300D Shroud - Windshield Diagram

← All diagrams

Find the part on the Shroud - Windshield diagram for your 1980 Yamaha ET300D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

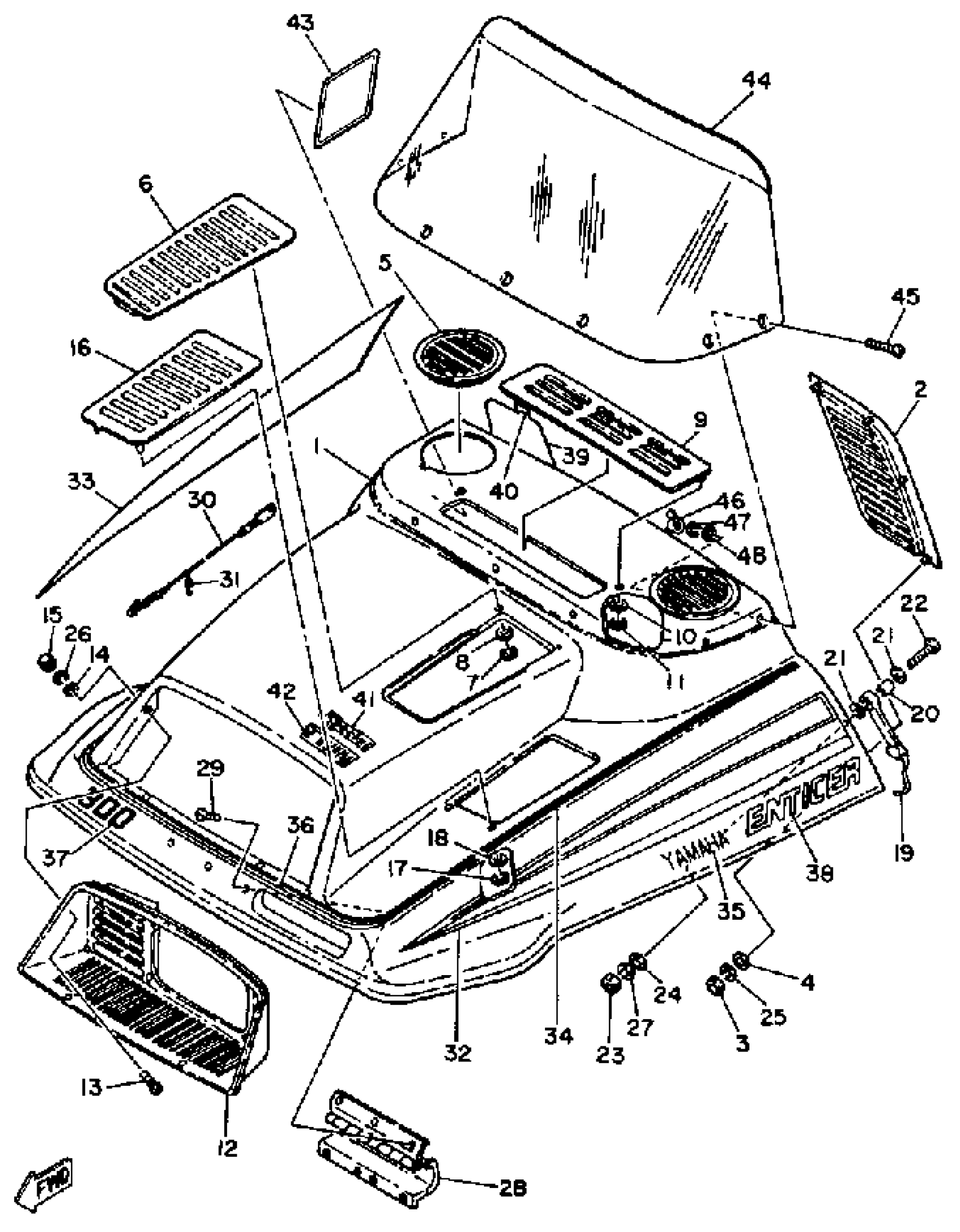

1980 Yamaha ET300D Shroud - Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

8K0-W7711-00-00

1
Out of stock

2

LOUVER 1

8F3-77131-00-00

1
Out of stock

3

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

4

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

5

LOUVER 3

8K0-77133-00-00

1
Out of stock

6

LOUVER 4

8K0-77134-00-00

1
Out of stock

7

NUT 6504269100

90183-05003-00

1
Out of stock

8

EMBLEM 3

838-77143-00-00

1
Out of stock

9

LOUVER 5

8J4-77109-00-00

1
Out of stock

10

EMBLEM 3

838-77143-00-00

1
Out of stock

11

NUT 6504269100

90183-05003-00

1
Out of stock

12

BODY, HEADLIGHT

8F3-84311-00-00

1
Out of stock

13

SCREW, BINDING

98907-05020-00

1

$6.18

In stock

14

WASHER, PLAIN (3GDF)

90201-051K1-00

1

$6.46

In stock

15

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

16

LOUVER 6

8J4-77108-00-00

1
Out of stock

17

NUT 6504269100

90183-05003-00

1
Out of stock

18

EMBLEM 3

838-77143-00-00

1
Out of stock

19

LATCH ASSEMBLY

8G5-77170-00-00

1
Out of stock

20

SPACER

90560-07007-00

—
Out of stock

21

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

22

SCREW, BIND(J39)

98980-06030-00

—

$5.62

In stock

23

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

24

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

25

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

26

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

HINGE ASSEMBLY

8F3-77140-00-00

1
Out of stock

29

SCREW, BIND (705)

98980-06016-00

—
Out of stock

30

STOPPER, SHROUD

8G8-77118-00-00

1
Out of stock

31

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

32

ORNAMENT 1

(8K0-77163-00-00)

1
Out of stock

33

ORNAMENT 2

8K0-77164-00-00

1
Out of stock

34

ORNAMENT 3

(8K0-77169-00-00)

1
Out of stock

35

ORNAMENT 4

8K0-77113-00-00

1
Out of stock

36

STRIPE 1

8K0-77281-00-00

1
Out of stock

37

EMBLEM 6

8K0-77356-00-00

1
Out of stock

38

EMBLEM 7

(8K0-77357-00-00)

1
Out of stock

39

LABEL, WARNING

8F3-77458-00-00

1
Out of stock

40

LABEL, SAFETY

288-21659-00-00

1
Out of stock

41

EMBLEM 8

8K0-77358-00-00

1
Out of stock

42

EMBLEM 9

8K0-77359-00-00

1
Out of stock

43

INDICATOR 3

8K0-77743-00-00

1
Out of stock

44

WINDSHIELD

8N5-77210-00-00

1
Out of stock

45

SCREW, BINDING(3XV)

90154-05059-00

—

$5.21

In stock

46

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

47

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

48

ORNAMENT SET

(8K0-70000-00-00)

1
Out of stock

48

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock
