1980 Yamaha ET300D Crankshaft - Piston Diagram

← All diagrams

Find the part on the Crankshaft - Piston diagram for your 1980 Yamaha ET300D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

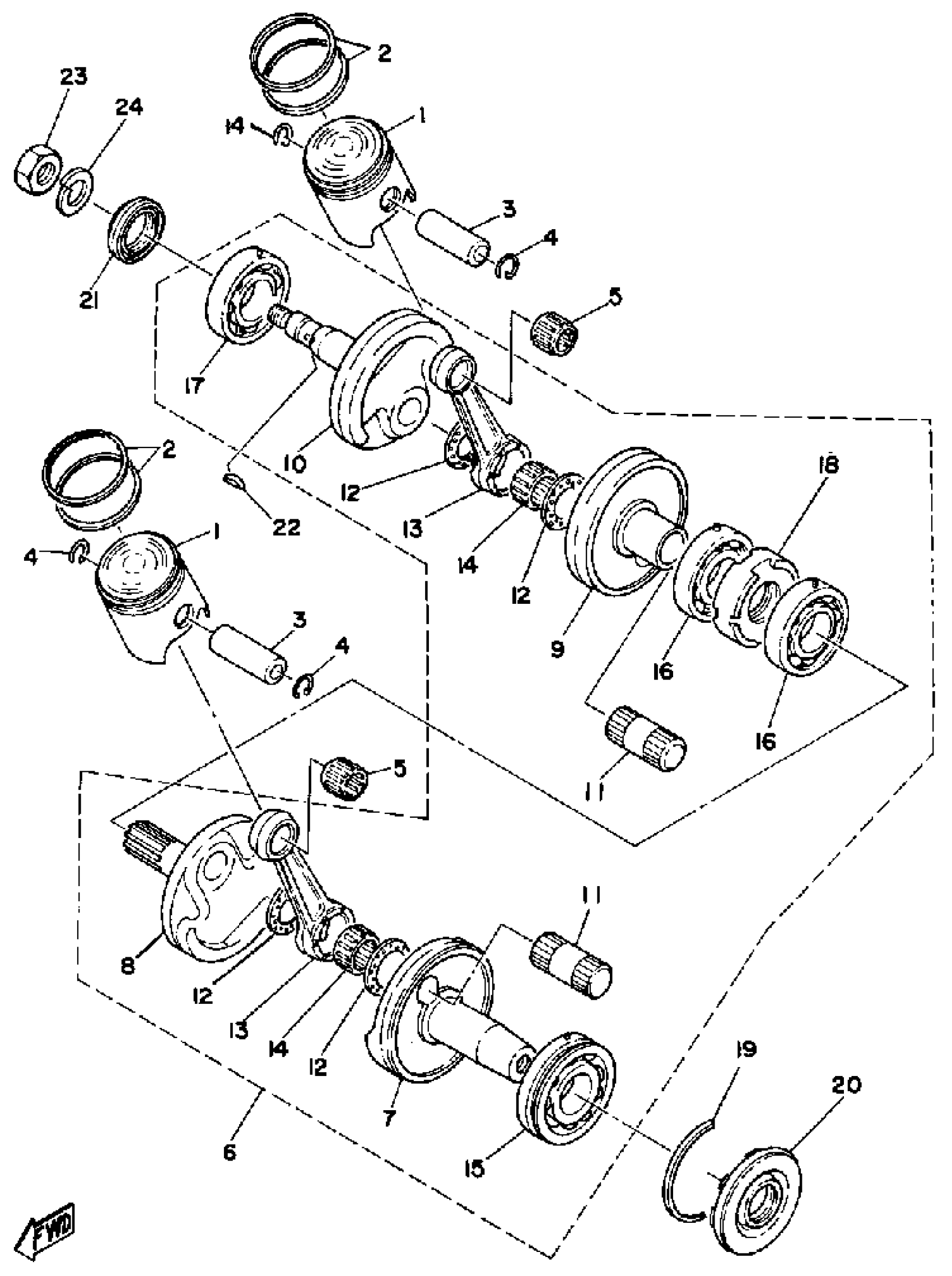

1980 Yamaha ET300D Crankshaft - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON STD

8K0-11631-00-96

1
Out of stock

1

PISTON 1 O/S 0.25 (1ST O/S 0.25MM)

8K0-11635-00-00

1
Out of stock

1

PISTON 2 O/S 0.50 (2ND O/S 0.50MM)

8K0-11636-00-00

1
Out of stock

1

PISTON 3 O/S 0.75 (3RD O/S 0.75MM)

8K0-11637-00-00

1
Out of stock

1

PISTON 4 O/S 1.00

(8K0-11638-00-00)

1
Out of stock

2

PISTON RINGSET STD

8K0-11610-00-00

1
Out of stock

2

PISTON RINGSET 1ST (1ST O/S)

8K0-11610-10-00

1
Out of stock

2

PISTON RINGSET 2ND (2ND O/S)

8K0-11610-20-00

1
Out of stock

2

PISTON RINGSET 3RD (3RD O/S)

8K0-11610-30-00

1
Out of stock

2

PISTON RINGSET 4TH

(8K0-11610-40-00)

1
Out of stock

3

PIN, PISTON

137-11633-10-00

1

$21.92

In stock

4

CIRCLIP (137-11634-00)

93450-17025-00

1

$6.17

In stock

5

BEARING, NEEDLE (24X)

93310-216L2-00

1

$28.54

In stock

6

CRANKSHAFT ASSEMBLY

8L3-11400-00-00

1
Out of stock

7

. CRANK 1

8G8-11412-01-00

1
Out of stock

8

CRANK 2

(8G8-11422-00-00)

1
Out of stock

9

CRANK 3

(8G8-11432-00-00)

1
Out of stock

10

. CRANK 4

8G8-11442-01-00

1
Out of stock

11

PIN, CRANK

8G8-11681-00-00

—

$24.98

In stock

12

WASHER (29L)

90209-22248-00

—
Out of stock

13

ROD, CONNECTING

34X-11651-00-00

—

$77.82

In stock

14

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

—

$42.77

In stock

15

. BEARING (B6306)

93306-30618-00

1
Out of stock

16

BEARING (8G8)

93306-20617-00

—

$69.94

In stock

17

BEARING

93306-30571-00

—
Out of stock

18

. SEAL, LABYRINTH 1

8G8-11515-01-00

1
Out of stock

19

CIRCLIP (1J7)

93440-72049-00

—
Out of stock

20

OIL SEAL, SD-TYPE

93102-30184-00

1
Out of stock

21

OIL SEAL (8G8)

93102-25183-00

—

$11.94

In stock

22

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

23

NUT

90170-16425-00

—
Out of stock

24

WASHER(JN5)

92907-16100-00

—

$12.08

In stock
