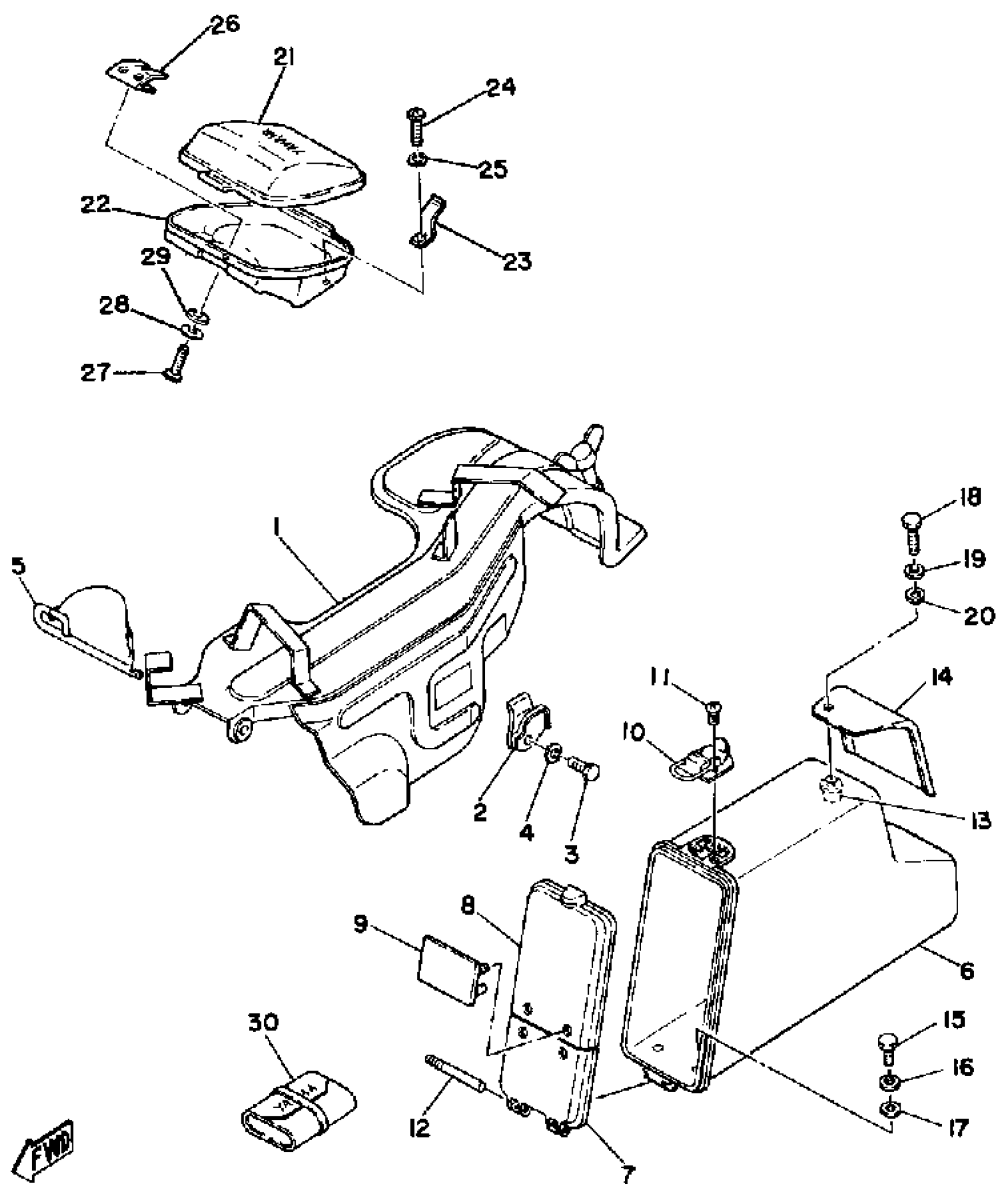

Find the part on the Guard - Luggage Box diagram for your 1980 Yamaha ET300D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha ET300D Guard - Luggage Box Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUARD, DRIVE

8H9-77311-00-00

1
Out of stock

2

PROTECTOR, DRIVE

8F3-77323-00-00

1
Out of stock

3

BOLT(JA9)

90101-08691-00

1
Out of stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

5

SHAFT

8F3-77327-00-00

1
Out of stock

6

LUGGAGE BOX

(8G8-77391-00-00)

1
Out of stock

7

COVER, LUGGAGE BOX

(8H5-77392-00-00)

1
Out of stock

8

COVER, LUGGE BOX 2

(8H5-77377-00-00)

1
Out of stock

9

HINGE, LUGGAGE BOX

(8H5-77395-00-00)

1
Out of stock

10

LUGGE BOX LTCH ASSEMBLY

8E7-77340-00-00

1
Out of stock

11

SCREW, FLAT

98707-03008-00

1
Out of stock

12

PIN, SPEC''L SHAPE

(90249-03128-00)

1
Out of stock

13

NUT, SPEC''L SHAPE

(90179-06254-00)

1
Out of stock

14

STAY 1

(8G8-77397-00-00)

1
Out of stock

15

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1
Out of stock

16

WASHER, SPRING

92995-06100-00

1
Out of stock

17

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

18

BOLT(3DM)

97024-06020-00

—
Out of stock

19

WASHER, SPRING

92995-06100-00

1
Out of stock

20

WASHER, PLATE

90201-06M08-00

1
Out of stock

21

LID

1T4-2177E-00-00

1
Out of stock

22

BOX

1T4-2177A-00-00

1
Out of stock

23

BRACKET, TL BX FTNG

(8H9-21945-00-00)

1
Out of stock

24

SCREW, PAN

98507-06014-00

—
Out of stock

25

WASHER, SPRING

92995-06100-00

1
Out of stock

26

BRACKET, SPARK PLUGPLUG

8H9-77376-00-00

1
Out of stock

27

SCREW, PAN

98507-06014-00

—
Out of stock

28

WASHER, SPRING

92995-06100-00

1
Out of stock

29

WASHER, PLATE (4H7)

90201-061A5-00

—
Out of stock

30

TOOL KIT

85L-28100-01-00

—
Out of stock
