1980 Yamaha ET300D Brake Diagram

← All diagrams

Find the part on the Brake diagram for your 1980 Yamaha ET300D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

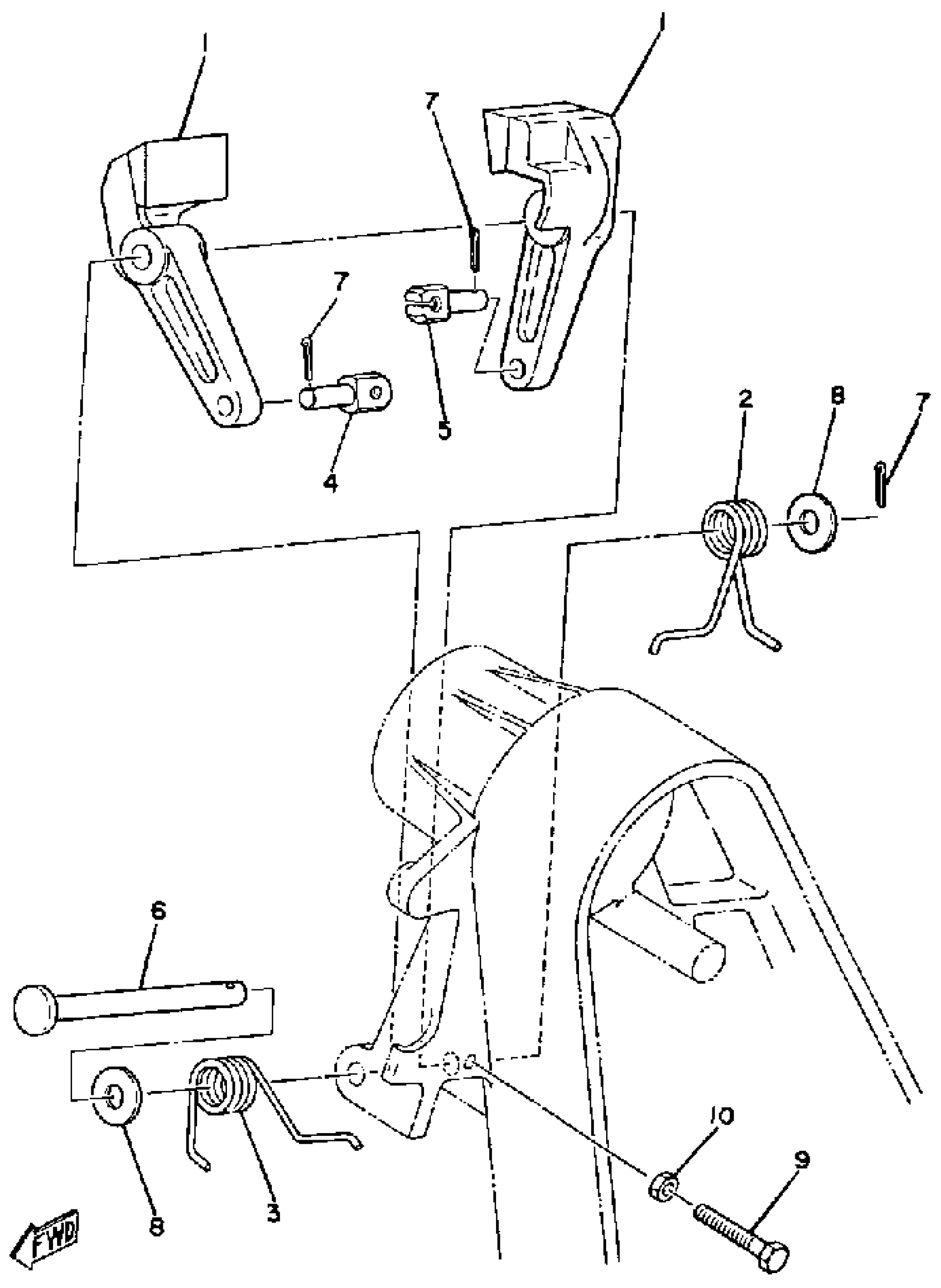

1980 Yamaha ET300D Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER BODY COMP.1

88J-25730-00-00

1

$64.57

In stock

2

SPRING, TORSION

90508-26335-00

1
Out of stock

3

SPRING, TORSION

90508-26336-00

1
Out of stock

4

PIN (810)

90249-06012-00

—

$9.91

In stock

5

PIN

90249-06009-00

1
Out of stock

6

PIN, W/ HOLE (8J2)

90240-08068-00

—

$5.29

In stock

7

PIN, COTTER

91490-20025-00

1

$1.31

In stock

8

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

9

BOLT

90101-05355-00

1
Out of stock

10

NUT, HEXAGON SMALL

95317-05700-00

1

$6.18

In stock
