TRACK DRIVE

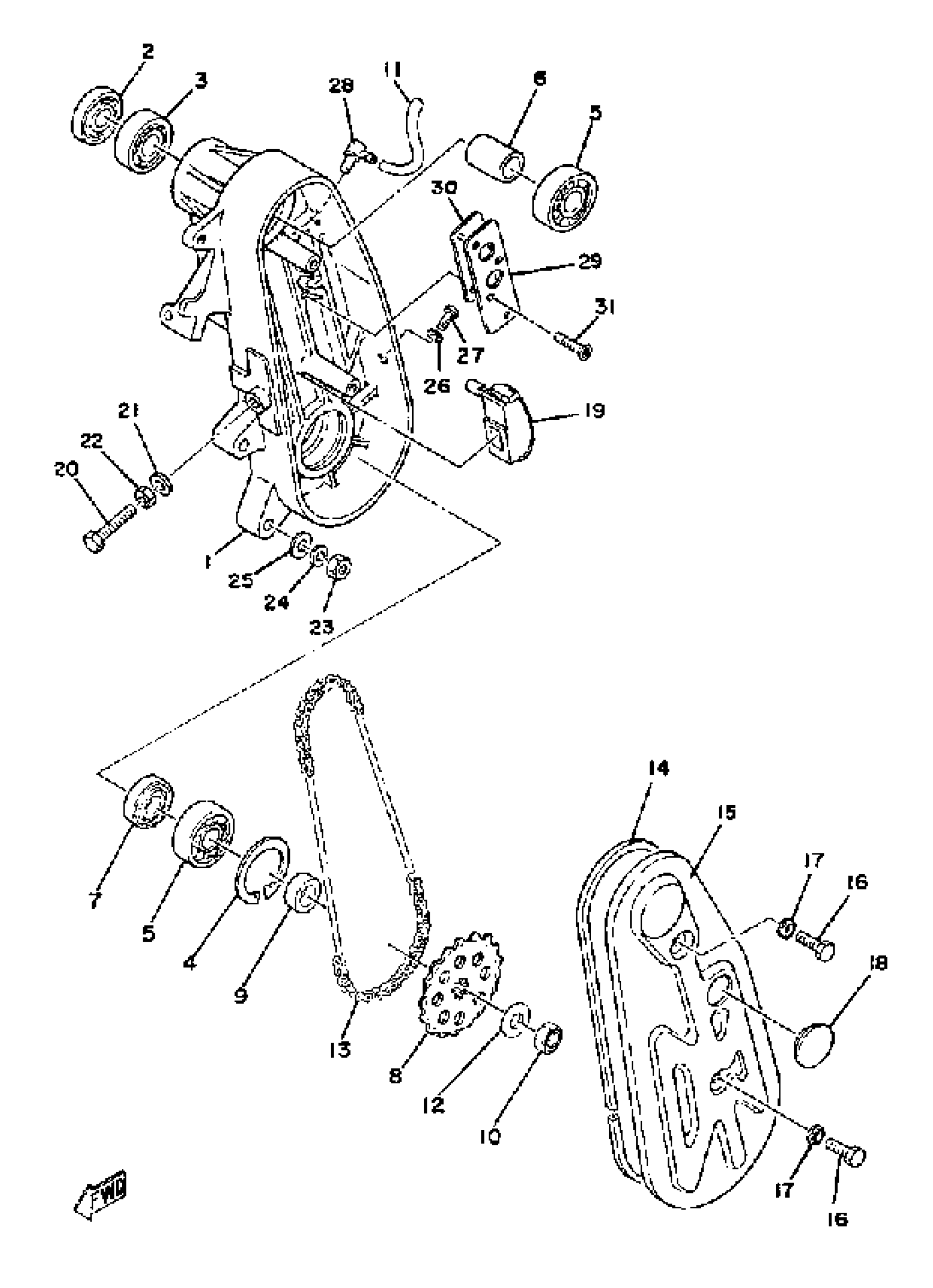

Yamaha ET300C 1979 TRACK DRIVE Diagram
#
1
HOUSING, CHAIN
8F3-47541-00-00
Unavailable
2
OIL SEAL (30X47X7-810)
93102-30083-00
$13.49
3
BEARING(1GJ)
93306-20458-00
$43.99
4
CIRCLIP(26H)
99009-52500-00
$12.49
5
BRG,R-B 6304 52MM 144G NT
93306-30407-00
Unavailable
6
COLLAR
90387-20580-00
Unavailable
7
OIL SEAL(4BA)
93102-20447-00
$11.49
8
SPROCKET, CHAIN DRIVEN
8BC-47548-10-00
Unavailable
8
SPROCKET, CHAIN DRIVEN
8BC-47548-20-00
Unavailable
8
SPROCKET, CHAIN DRIVEN (23T)
8F3-47548-30-00
Unavailable
9
COLLAR
90387-20155-00
Unavailable
10
NUT, U
95617-10100-00
$8.49
11
HOSE (L420)
90445-092K1-00
$12.49
12
WASHER, PLATE(3BM)
90201-105R9-00
$9.49
13
CHAIN (DID40K 60L)
94580-01060-00
Unavailable
14
RING, HOUSING (97302-08020)
8F3-47558-00-00
Unavailable
15
CAP, HOUSING
8F3-47543-00-00
Unavailable
16
BOLT, HEXAGON
97013-08020-00
Unavailable
17
WASHER (821)
90210-08002-00
Unavailable
18
CAP
148-22315-00-00
Unavailable
19
TENSIONER
8F3-47611-02-00
Unavailable
20
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
21
WASHER SEAL 256111730200
90210-10004-00
Unavailable
22
NUT (682)
95380-10700-00
Unavailable
23
NUT(6L2)
95333-08600-00
Unavailable
24
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
25
WASHER, PLAIN
92990-08200-00
Unavailable
26
GASKET 838153840000
90430-06016-00
Unavailable
27
SCREW PAN HEAD
98580-06010-00
Unavailable
28
BREATHER
583-15371-00-00
Unavailable
29
PLATE
8G8-47591-00-00
Unavailable
30
GASKET
85T-47592-00-00
Unavailable
31
SCREW, FLAT
98707-05016-00
Unavailable
