TACHOMETER UNIT

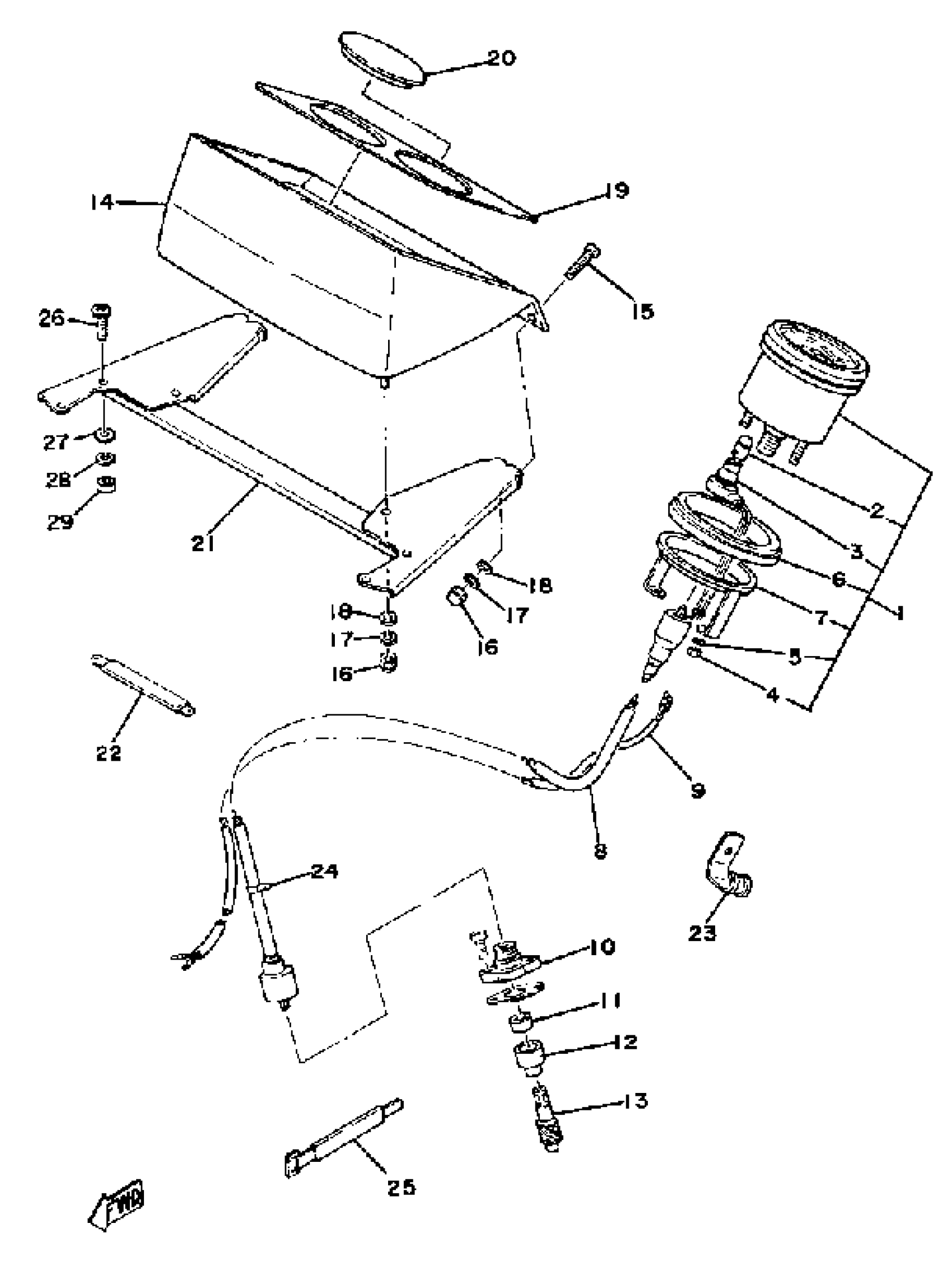

Yamaha ET300C 1979 TACHOMETER UNIT Diagram
#
1
TACHOMETER ASSEMBLY
8R5-83540-00-00
Unavailable
2
BULB (12V-3.4W)
123-83516-21-00
$4.26
3
SOCKET, METER
(861-83536-40-00)
Unavailable
4
NUT, HEXAGON (663)
95380-05600-00
$8.49
5
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
6
DAMPER, METER
8G6-83523-00-00
Unavailable
7
. BRACKET, METER
8G6-83519-00-00
Unavailable
8
TACHOMETER CABLE
8G6-83560-01-00
Unavailable
9
WIRE, LEAD
8H4-83553-00-00
Unavailable
10
CAP, HOUSING
821-17819-00-00
Unavailable
11
OIL SEAL (6X12X4-821)
93104-06033-00
$5.60
12
BUSH, DRIVEN GEAR OUTER
821-17843-00-00
Unavailable
13
GEAR, DRIVEN (10T)
813-17841-00-00
Unavailable
14
PANEL,METER
8G5-83611-00-00
Unavailable
15
SCREW, BINDING
98907-05020-00
$8.49
16
NUT, HEXAGON (663)
95380-05600-00
$8.49
17
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
18
. WASHER, PLAIN
92990-05200-00
Unavailable
19
COVER, METER PANEL
8G6-83612-00-00
Unavailable
20
COVER, METER
8G5-83559-01-00
Unavailable
21
BRACKET, PANEL 1
8G5-83631-00-00
Unavailable
22
CLAMP
90465-05128-00
Unavailable
23
CLAMP
90465-06013-00
Unavailable
24
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
25
BAND
341-26397-01-00
Unavailable
26
SCREW, BIND
98903-05016-00
Unavailable
27
. WASHER, PLAIN
92990-05200-00
Unavailable
28
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
29
NUT, HEXAGON (663)
95380-05600-00
$8.49
