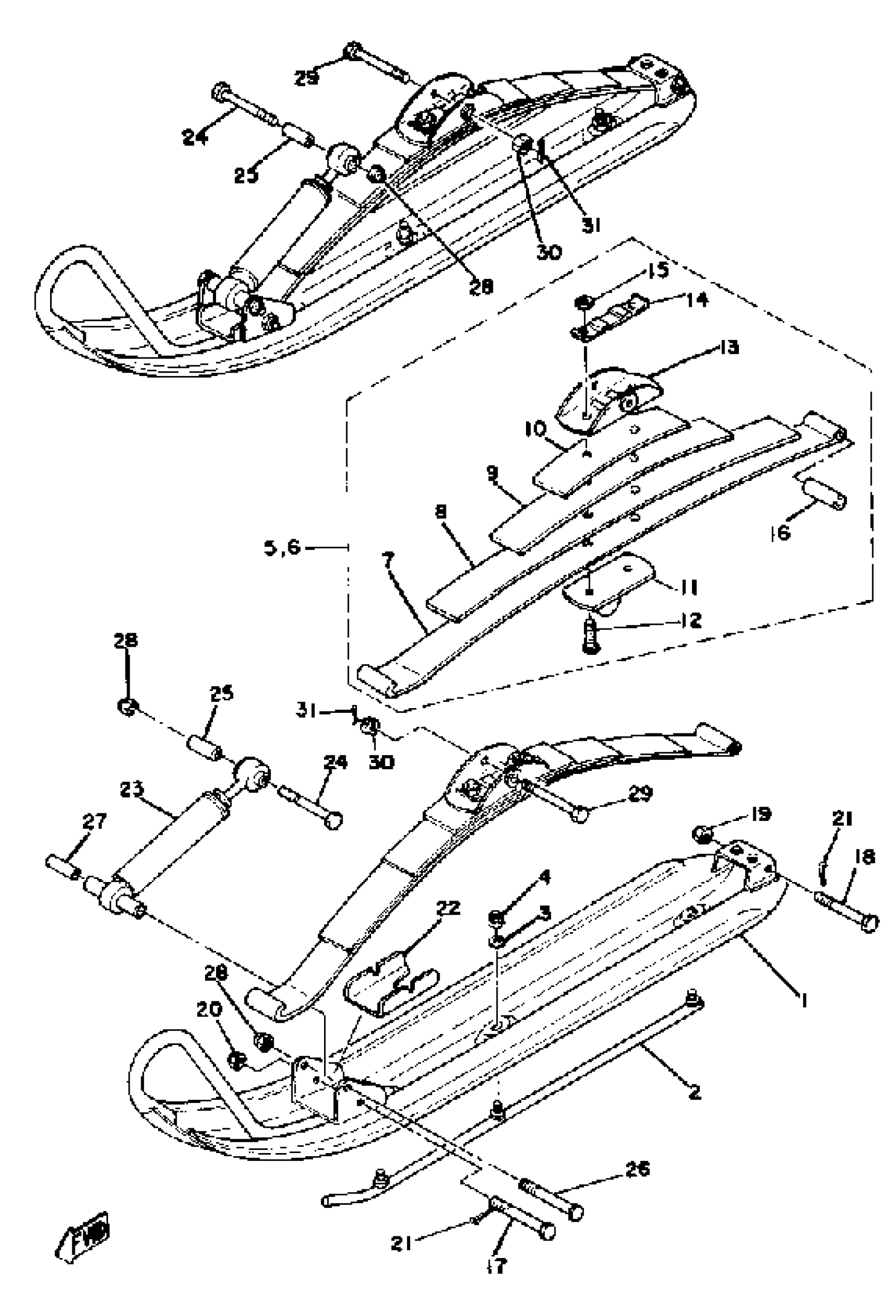

Yamaha ET300C 1979 SKI Diagram
#
Description
Price
2
SKI RUNNER, 1
888-23731-01-XX
Unavailable
5
SPRING ASY 1
8V2-23760-00-00
Unavailable
6
SPRING ASY 2
8V2-23770-00-00
Unavailable
7
LEAF 1
888-23761-10-00
Unavailable
8
LEAF 2
865-23762-10-00
Unavailable
9
LEAF 3
888-23763-00-00
Unavailable
10
. LEAF 5
865-23771-00-00
Unavailable
11
. SEAT, SPRING 1
878-23768-00-00
Unavailable
12
. BOLT
90109-105E7-00
Unavailable
13
. SADDLE 1
806-23766-00-00
Unavailable
16
COLLAR
90387-08478-00
Unavailable
17
BOLT PIN HOLE HEXAGON(8E6)
90102-08028-00
Unavailable
18
BOLT, PIN HOLE (8A7)
90102-08027-00
Unavailable
20
NUT, U
95617-08100-00
Unavailable
21
PIN, COTTER
91490-20025-00
Unavailable
22
PLATE, WEAR
8F3-23735-00-00
Unavailable
23
CUSHION ASSY
8J6-23350-00-00
Unavailable
24
BOLT, HEXAGON
97013-08055-00
Unavailable
25
COLLAR (878)
90387-08262-00
Unavailable
26
BOLT(6TC)
97027-08070-00
Unavailable
27
COLLAR (864)
90387-08224-00
Unavailable
29
BOLT, WITH HOLE
90102-10023-00
Unavailable
30
NUT, SLOTTED
95306-10900-00
Unavailable
31
PIN, COTTER
91490-25020-00
Unavailable
