Description

Price

1

GASKET, PUMP CASE

126-13116-01-00

$8.99

2

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

3

OIL PUMP ASSEMBLY

8H9-13101-00-00

Unavailable

4

SHIM,PLUNGER

137-13137-00-03

$5.49

4

SHIM,PLUNGER

137-13137-00-05

$6.99

4

SHIM,PLUNGER

137-13137-00-10

$7.99

5

PLATE, ADJUSTING

137-13138-01-00

Unavailable

6

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

NUT, HEXAGON (663)

95380-05600-00

$8.49

8

. PLUG

90338-21100-00

Unavailable

9

SCREW, BIND

98980-04008-00

Unavailable

10

GASKET 137131870000

90430-04004-00

$9.49

11

BALL

93505-32002-00

$2.92

12

SPRING (278-13169-00)

90501-02018-00

$9.49

13

NOZZLE

353-13552-01-00

$9.99

14

HOSE (L200)

90445-05N13-00

Unavailable

15

HOSE (L200)

90445-05N13-00

Unavailable

16

CLIP (214-13164-00)

90468-02033-00

Unavailable

17

CLIP (214-13164-00)

90468-02033-00

Unavailable

18

COVER, ADJUST PULLEY

8A5-13146-01-00

Unavailable

19

SCREW, PAN HEAD

98507-04018-00

Unavailable

20

PUMP CABLE ASSEMBLY

8G8-26320-01-00

Unavailable

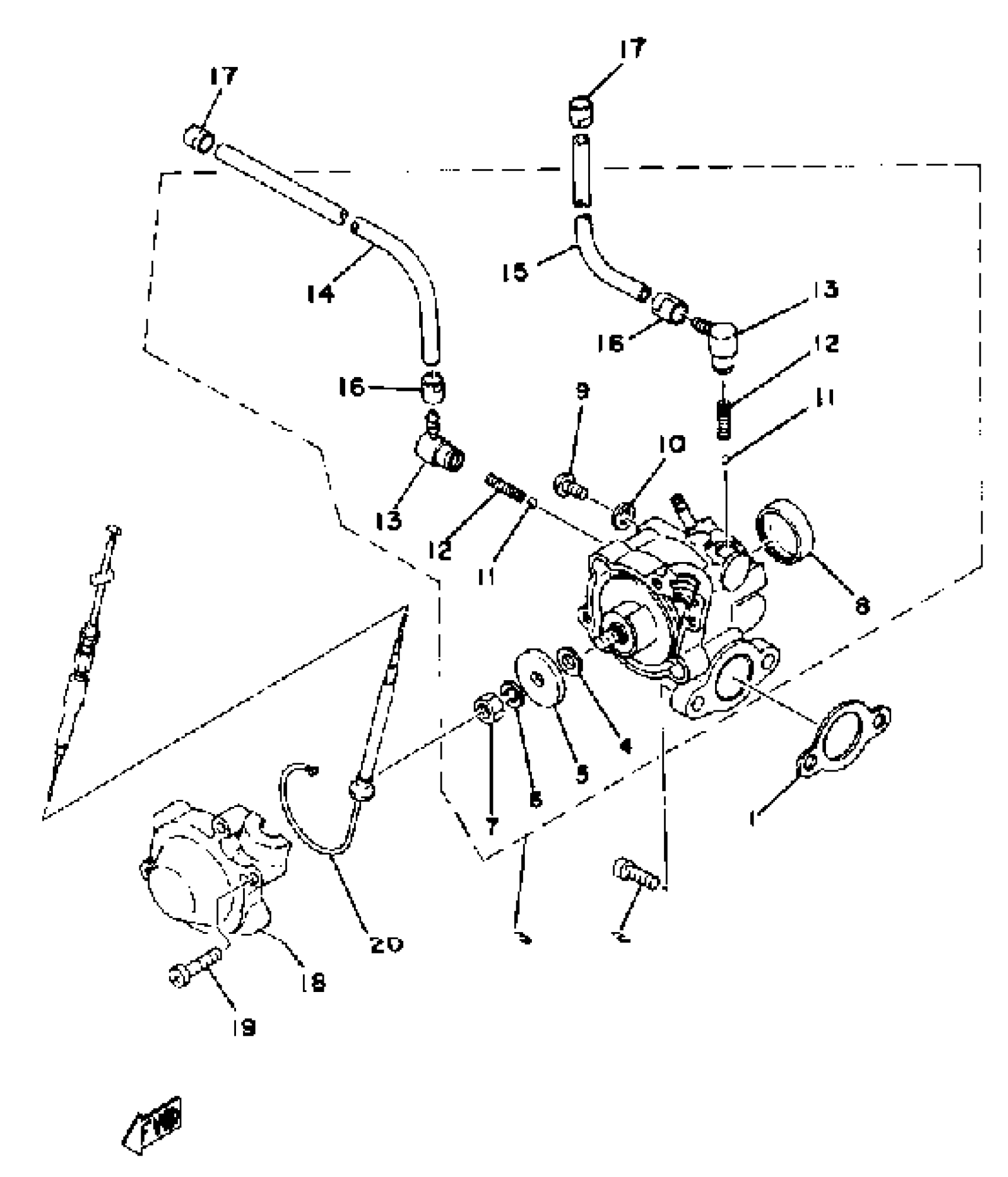

Yamaha ET300C 1979 OIL PUMP Diagram

GASKET, PUMP CASE

SCREW, PAN HEAD(6B0)

OIL PUMP ASSEMBLY

SHIM,PLUNGER

SHIM,PLUNGER

SHIM,PLUNGER

PLATE, ADJUSTING

YBS67-5 WASHER, SPRING

NUT, HEXAGON (663)

. PLUG

SCREW, BIND

GASKET 137131870000

BALL

SPRING (278-13169-00)

NOZZLE

HOSE (L200)

HOSE (L200)

CLIP (214-13164-00)

CLIP (214-13164-00)

COVER, ADJUST PULLEY

SCREW, PAN HEAD

PUMP CABLE ASSEMBLY
