1979 Yamaha ET300C Grip Wiring Diagram

← All diagrams

Find the part on the Grip Wiring diagram for your 1979 Yamaha ET300C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

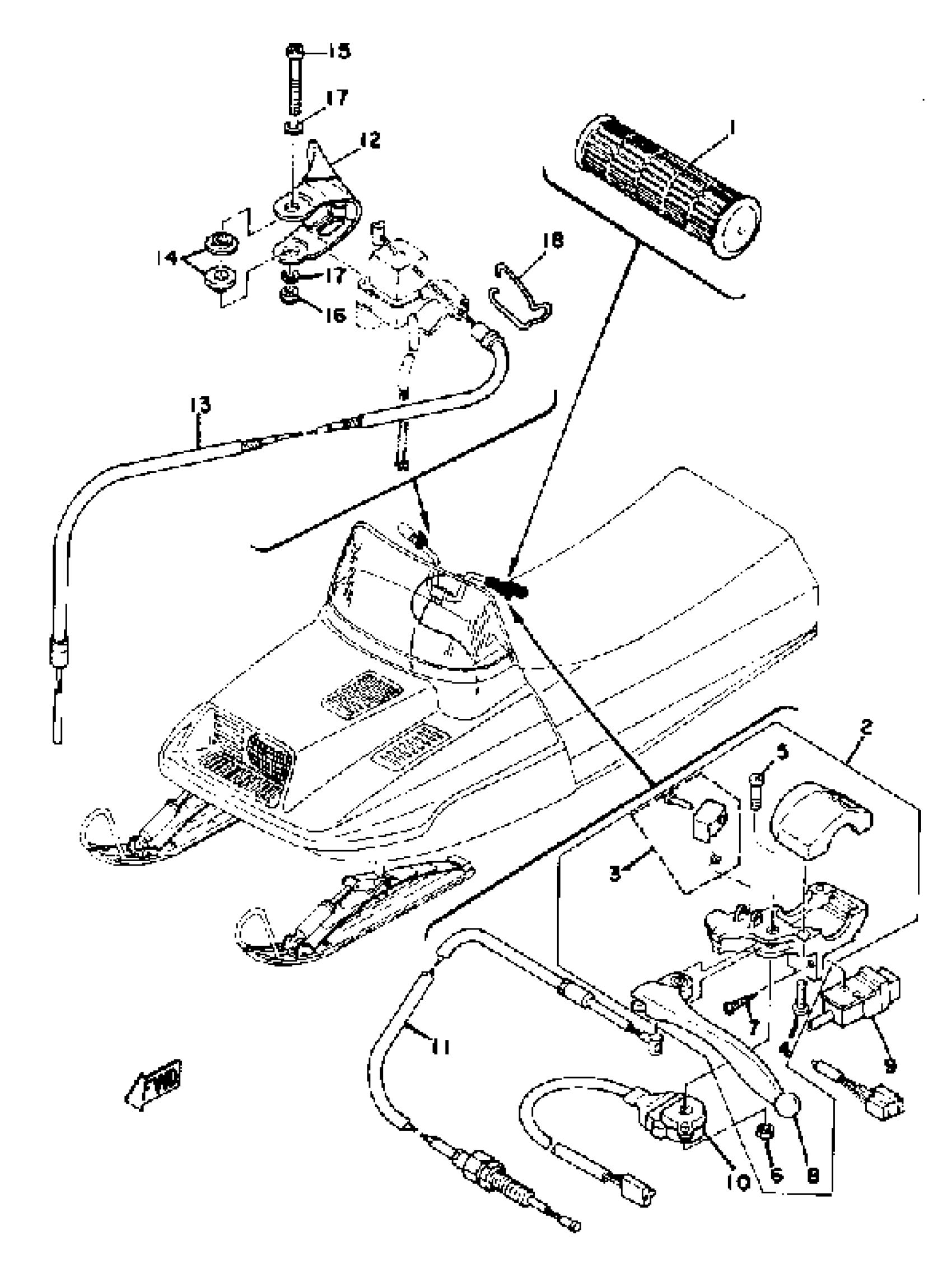

1979 Yamaha ET300C Grip Wiring Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP

801-26241-02-00

1
Out of stock

2

LEVER HOLDER ASSY (LEFT)

8R4-W8291-02-00

1
Out of stock

3

LEVER LOCK ASSY

8E3-W8393-01-00

1
Out of stock

4

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

5

SCREW, PAN

98507-05035-00

1

$6.69

In stock

6

NUT, NYLON

95707-05300-00

1

$2.74

In stock

7

. SCREW, TAPPING

97780-30312-00

1
Out of stock

8

LEVER L

803-83912-00-38

1
Out of stock

9

BEAM SWITCH ASSY

8H8-83950-01-00

1

$68.89

In stock

10

STOP SWITCH ASSY

8R4-82530-00-00

1

$27.65

In stock

11

CABLE, BRAKE

8F3-26340-01-00

1
Out of stock

12

LEVER, THROTTLE

8G8-42138-00-00

1
Out of stock

13

CABLE, THROTTLE 1

8W6-26311-00-00

—
Out of stock

14

COLLAR (8G8)

90387-06681-00

1

$6.62

In stock

15

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

16

NUT, NYLON

95707-06300-00

—

$3.20

In stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

18

CLIP (821-26391-00)

90468-10017-00

1
Out of stock
