1979 Yamaha ET300C Electrical Diagram

← All diagrams

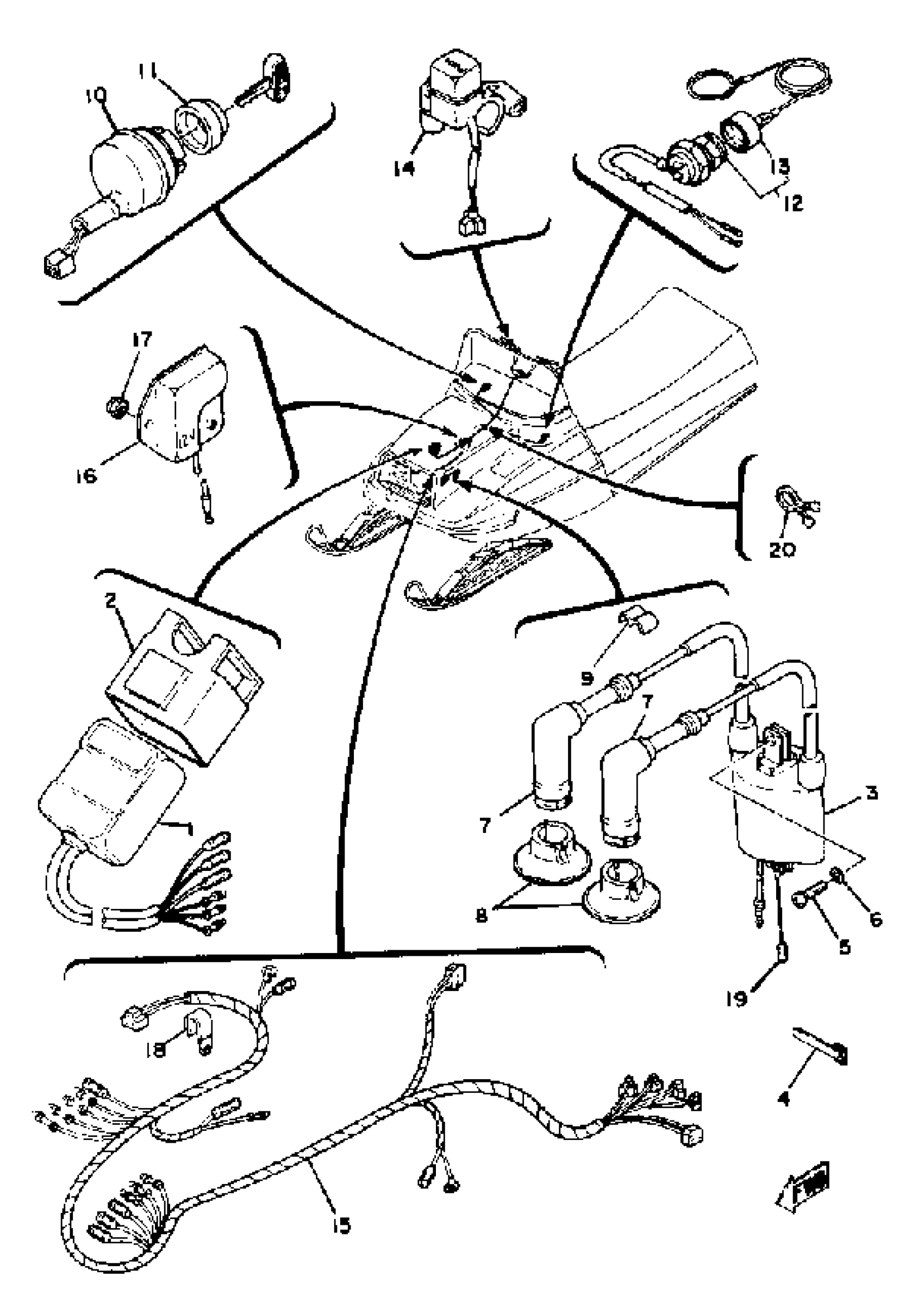

Find the part on the Electrical diagram for your 1979 Yamaha ET300C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha ET300C Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

8H4-85540-20-00

1
Out of stock

2

BAND

2A7-85546-00-00

—

$20.40

In stock

3

IGNITION COIL ASY

8E7-82310-09-00

1
Out of stock

4

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

5

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

PLUG CAP ASSY

7KA-82370-00-00

1

$62.25

In stock

8

SEAL, PLUG CAP

8G8-82372-00-00

1
Out of stock

9

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock

10

MAIN SWITCH ASSEMBLY

8F3-82508-20-00

1
Out of stock

11

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

12

STOP SWITCH ASSY

8H8-82550-01-00

1

$83.12

In stock

13

CAP, SWITCH

8H8-82552-09-00

1

$42.05

In stock

14

SWITCH, HANDLE 1

8E3-83976-02-00

1

$93.69

In stock

15

WIRE HARNESS ASSEMBLY

(8G8-82590-20-00)

1
Out of stock

16

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

—

$50.55

In stock

17

NUT, NYLON

95707-06300-00

—

$3.20

In stock

18

CLAMP

90465-08028-00

1

$4.62

In stock

19

WIRE, SUB-LEAD

J42-82318-00-00

1

$4.15

In stock

20

CLAMP (3Y2)

90464-16039-00

—
Out of stock
