Description

Price

1

TRACK ASSY

8H9-47110-01-00

Unavailable

2

METAL, SLIDE

8A5-47115-00-00

Unavailable

3

SUSPENSION WHEEL COMP

885-47320-01-00

$72.99

4

BEARING(8AB)

93306-00444-00

$41.99

5

CIRCLIP(5U8)

99009-42500-00

$8.49

6

BOLT

90101-12356-00

Unavailable

7

COLLAR

90387-12584-00

Unavailable

8

NUT, NYLON

95717-12300-00

$7.49

9

YBS66-12 WASHER,PLAIN

92990-12200-00

$8.49

10

AXLE, REAR

8F3-47521-00-00

Unavailable

11

WASHER, SPEC''L SHAP

90209-23152-00

Unavailable

12

PIN, SPRING (663)

91690-40040-00

Unavailable

13

WHEEL GUIDE COMP.

8L4-47530-00-00

$171.99

14

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$40.99

15

CIRCLIP(48Y)

99009-47500-00

$9.49

16

BOLT (682)

97013-08025-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

18

WASHER, SPEC''L SHAP

90209-08124-00

Unavailable

19

IDLER WHEEL KIT

(8G5-47000-00-00)

Unavailable

20

SUSPENSION WHEEL COMP

885-47320-01-00

$72.99

21

BEARING(8AB)

93306-00444-00

$41.99

22

CIRCLIP(5U8)

99009-42500-00

$8.49

23

BOLT, HEXAGON

97017-06020-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

WASHER, SPEC''L SHAP

90209-06137-00

Unavailable

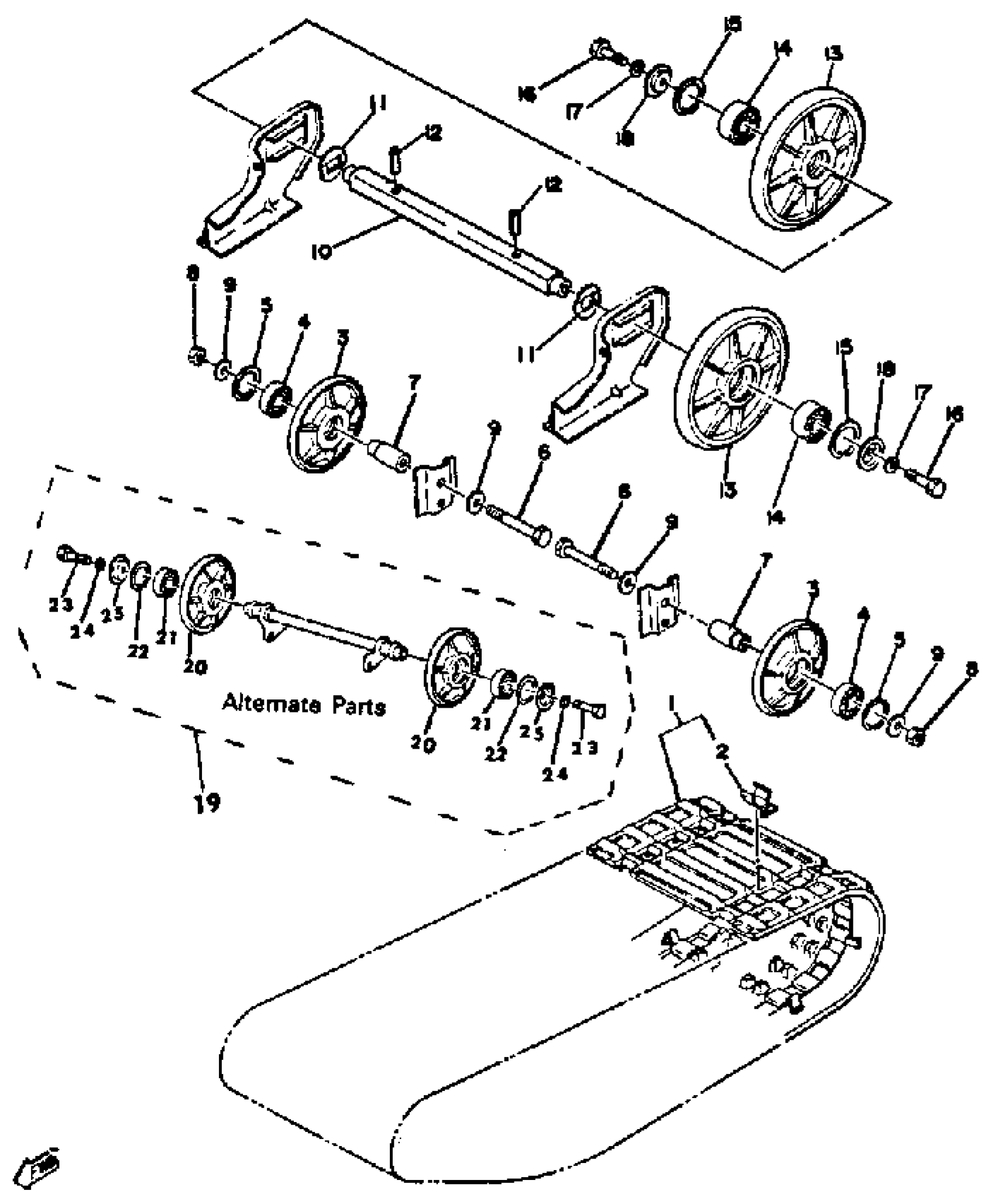

Yamaha ET250C 1979 TRACK SUSPENSION 1 ET250D - E Diagram

TRACK ASSY

METAL, SLIDE

SUSPENSION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

BOLT

COLLAR

NUT, NYLON

YBS66-12 WASHER,PLAIN

AXLE, REAR

WASHER, SPEC''L SHAP

PIN, SPRING (663)

WHEEL GUIDE COMP.

BRG,R-B 62042RS 47MM 110G KY

CIRCLIP(48Y)

BOLT (682)

YBS67-8 WASHER, SPRING

WASHER, SPEC''L SHAP

IDLER WHEEL KIT

SUSPENSION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

BOLT, HEXAGON

WASHER, SPRING

WASHER, SPEC''L SHAP
