STEERING ET250C

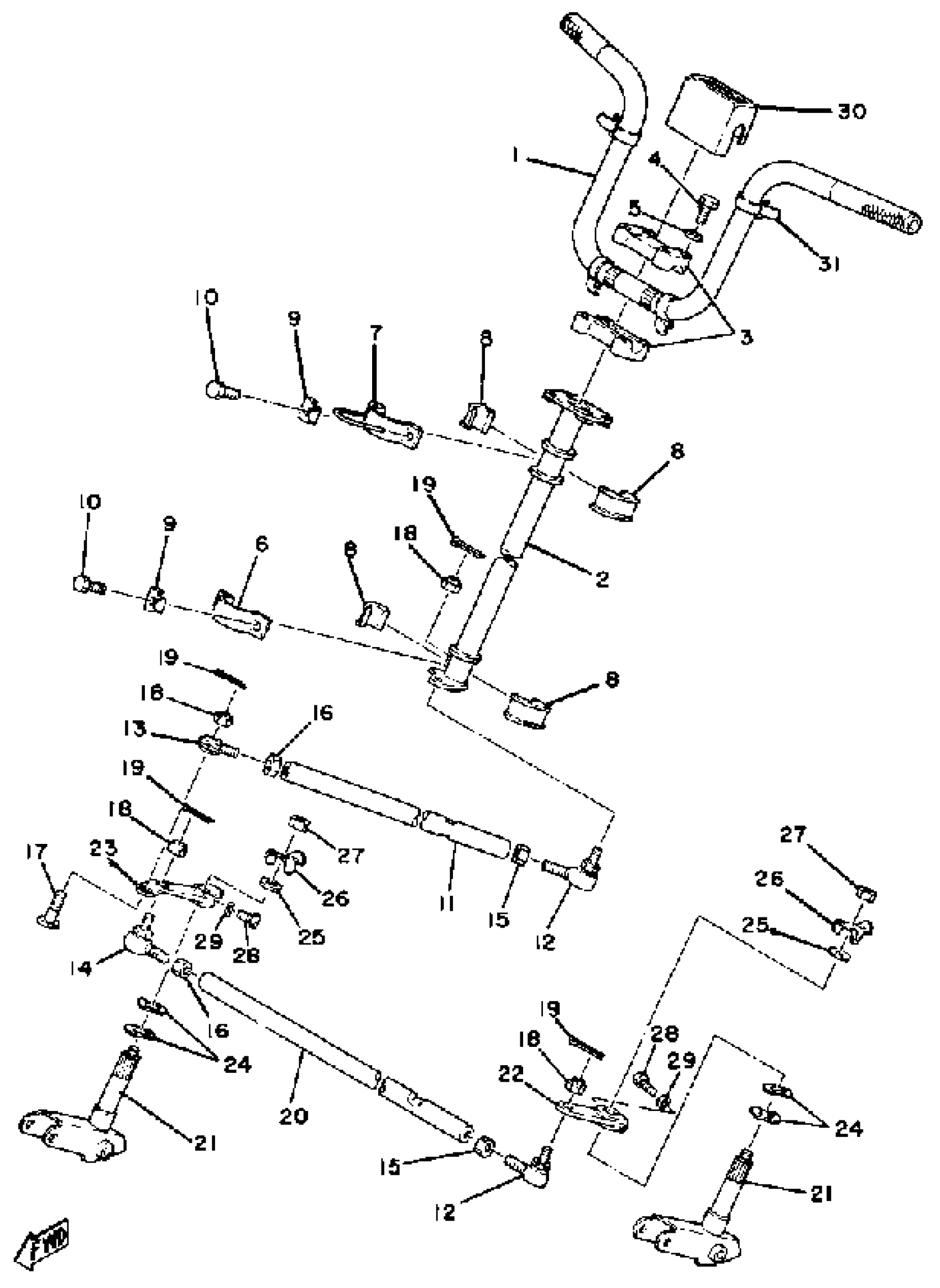

Yamaha ET250C 1979 STEERING ET250C Diagram
#
1
COLUMN, STEERING
86A-23811-90-00
$95.99
2
COLUMN, STEERING 2
(8F3-23813-00-00)
Unavailable
3
HANDLE, HOLDER
164-23441-01-98
Unavailable
4
BOLT, HEXAGON
97013-08055-00
$2.55
5
WASHER(JN5)
92907-08100-00
$8.49
6
BRACKET, STEERING LOWER
84M-23868-00-00
Unavailable
7
HOLDER, BEARING
84M-23872-00-00
Unavailable
8
BEARING, STEERING
8F3-23812-00-00
Unavailable
9
WASHER, LOCK
90215-08143-00
Unavailable
10
BOLT, HEXAGON
97013-08016-00
$1.01
11
ROD,STEERING RELAY
85L-23821-00-00
Unavailable
12
JOINT, UNIVERSAL 1
86X-23841-00-00
$59.99
13
JOINT, UNIVERSAL 3
87S-23847-01-00
$50.99
14
JOINT, UNIVERSAL 2
86X-23845-00-00
$61.99
15
NUT (682)
95380-10700-00
Unavailable
16
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
17
BOLT
90109-10482-00
Unavailable
18
NUT, NYLON
95707-10300-00
Unavailable
19
PIN, COTTER
91490-20025-00
Unavailable
20
ROD, TIE
8F3-23831-00-00
Unavailable
21
COLUMN, SKI 1
8F3-23853-00-00
Unavailable
22
ARM, OUTSIDE 1
8F3-23851-00-00
Unavailable
23
ARM, OUTSIDE 2
8F3-23852-00-00
Unavailable
24
WASHER, WAVE (878)
90206-20037-00
Unavailable
25
WASHER, PLATE (3J6)
90201-100A1-00
Unavailable
26
WASHER, LOCK
90215-10096-00
Unavailable
27
NUT(3BM)
95314-10600-00
Unavailable
28
BOLT, HEXAGON
97017-08025-00
Unavailable
29
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
30
COVER, STEERING
8F3-23818-00-00
Unavailable
31
BAND, SWITCH CORD
437-83936-01-00
Unavailable
