Description

Price

1

SEC FXD SHVSHEAVE COMP.

8F3-17660-00-00

Unavailable

2

. DISC, BRAKE

8F3-25711-00-00

Unavailable

3

RIVET

90263-05023-00

$1.59

4

SEC SLIDING SHEAVE

85T-17670-00-00

Unavailable

5

SHAFT, SECONDARY

8F3-17681-00-00

Unavailable

6

PIN, SPRING TYPE

90254-08001-00

Unavailable

7

SPRING TORSION 806176830000

90508-40080-00

$15.99

8

SEAT, SEC SPRINGSPRING

810-17684-01-00

Unavailable

9

SHOE, RAMP

801-17688-10-00

Unavailable

10

COLLAR

90387-19579-00

Unavailable

11

SPROCKET, CHAIN DRIVE(12T)

812-17682-20-00

$14.49

11

SPROCKET,CHAIN DRIVE(13T)

812-17682-30-00

Unavailable

11

SPROCKET, CHAIN DRIVE (14T)

812-17682-40-00

Unavailable

12

WASHER, PLATE (35T)

90201-122H1-00

$9.49

13

NUT, SELF LOCKING (23X)

90185-12119-00

$11.49

14

PIN, COTTER(6L5)

91490-25030-00

Unavailable

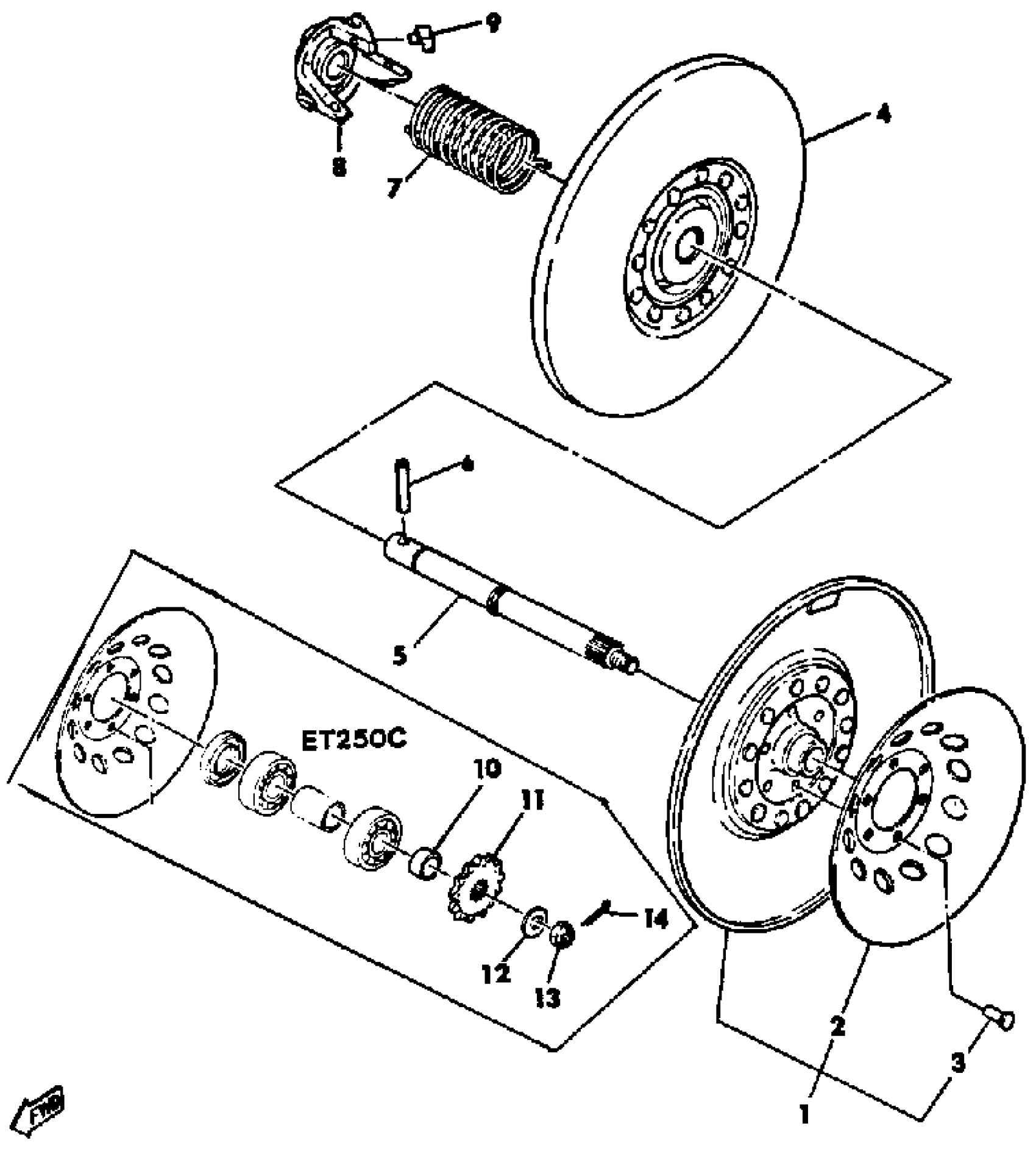

Yamaha ET250C 1979 SECONDARY SHEAVE ET250C\D\E Diagram

SEC FXD SHVSHEAVE COMP.

. DISC, BRAKE

RIVET

SEC SLIDING SHEAVE

SHAFT, SECONDARY

PIN, SPRING TYPE

SPRING TORSION 806176830000

SEAT, SEC SPRINGSPRING

SHOE, RAMP

COLLAR

SPROCKET, CHAIN DRIVE(12T)

SPROCKET,CHAIN DRIVE(13T)

SPROCKET, CHAIN DRIVE (14T)

WASHER, PLATE (35T)

NUT, SELF LOCKING (23X)

PIN, COTTER(6L5)
