Description

Price

1

AXLE, REAR

8F3-47521-00-00

Unavailable

2

WASHER, SPEC''L SHAP

90209-23152-00

Unavailable

3

PIN, SPRING (663)

91690-40040-00

Unavailable

4

WHEEL GUIDE COMP.

8L4-47530-00-00

$171.99

5

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$40.99

6

CIRCLIP(48Y)

99009-47500-00

$9.49

7

WASHER, SPEC''L SHAP

90209-08124-00

Unavailable

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

BOLT (682)

97013-08025-00

$8.49

10

SUSPENSION WHEEL COMP

885-47320-01-00

$72.99

11

BEARING(8AB)

93306-00444-00

$41.99

12

CIRCLIP(5U8)

99009-42500-00

$8.49

13

BOLT

90101-12356-00

Unavailable

14

COLLAR

90387-12584-00

Unavailable

15

YBS66-12 WASHER,PLAIN

92990-12200-00

$8.49

16

NUT, NYLON

95717-12300-00

Unavailable

17

SHAFT 1

8A5-47465-02-00

Unavailable

18

SPACER

8U7-47341-00-00

Unavailable

19

BOLT (8J7)

97013-10030-00

Unavailable

20

WASHER 823214910000

90208-10012-00

Unavailable

21

BAR, SUSPENSION

8N4-47451-00-00

Unavailable

22

SPACER

8G5-47466-00-00

Unavailable

23

BOLT, HEXAGON

97013-08030-00

Unavailable

24

NUT, NYLON

95717-08300-00

Unavailable

25

IDLER WHEEL KIT

(8G5-47000-00-00)

Unavailable

26

SUSPENSION WHEEL COMP

885-47320-01-00

$72.99

27

BEARING(8AB)

93306-00444-00

$41.99

28

CIRCLIP(5U8)

99009-42500-00

$8.49

29

BOLT, HEXAGON

97017-06020-00

Unavailable

30

WASHER, SPRING

92995-06100-00

Unavailable

31

WASHER, SPEC''L SHAP

90209-06137-00

Unavailable

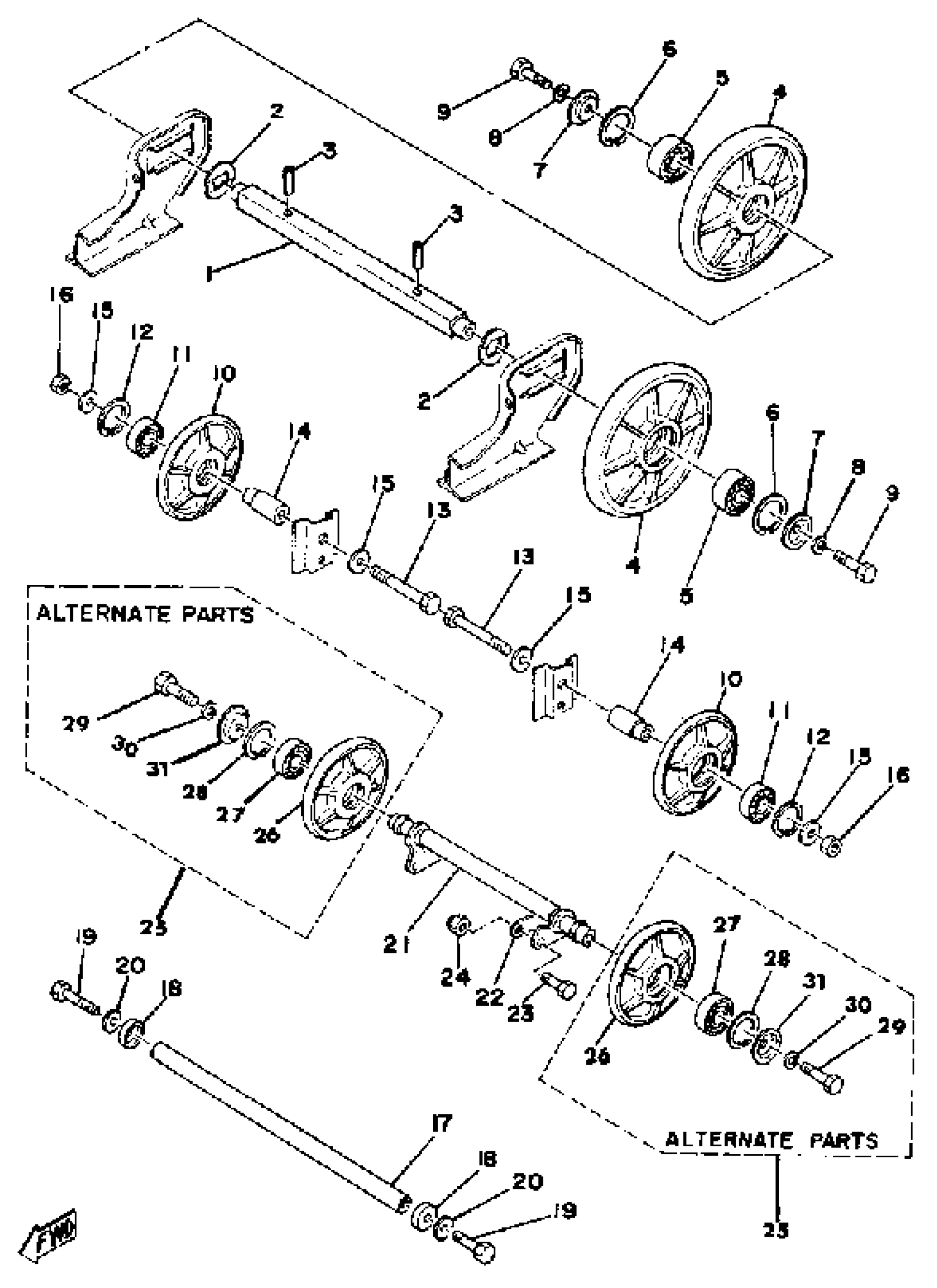

Yamaha ET250C 1979 REAR AXLE - WHEEL ET250C Diagram

AXLE, REAR

WASHER, SPEC''L SHAP

PIN, SPRING (663)

WHEEL GUIDE COMP.

BRG,R-B 62042RS 47MM 110G KY

CIRCLIP(48Y)

WASHER, SPEC''L SHAP

YBS67-8 WASHER, SPRING

BOLT (682)

SUSPENSION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

BOLT

COLLAR

YBS66-12 WASHER,PLAIN

NUT, NYLON

SHAFT 1

SPACER

BOLT (8J7)

WASHER 823214910000

BAR, SUSPENSION

SPACER

BOLT, HEXAGON

NUT, NYLON

IDLER WHEEL KIT

SUSPENSION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

BOLT, HEXAGON

WASHER, SPRING

WASHER, SPEC''L SHAP
