PUMP DRIVE - GEAR ET250C

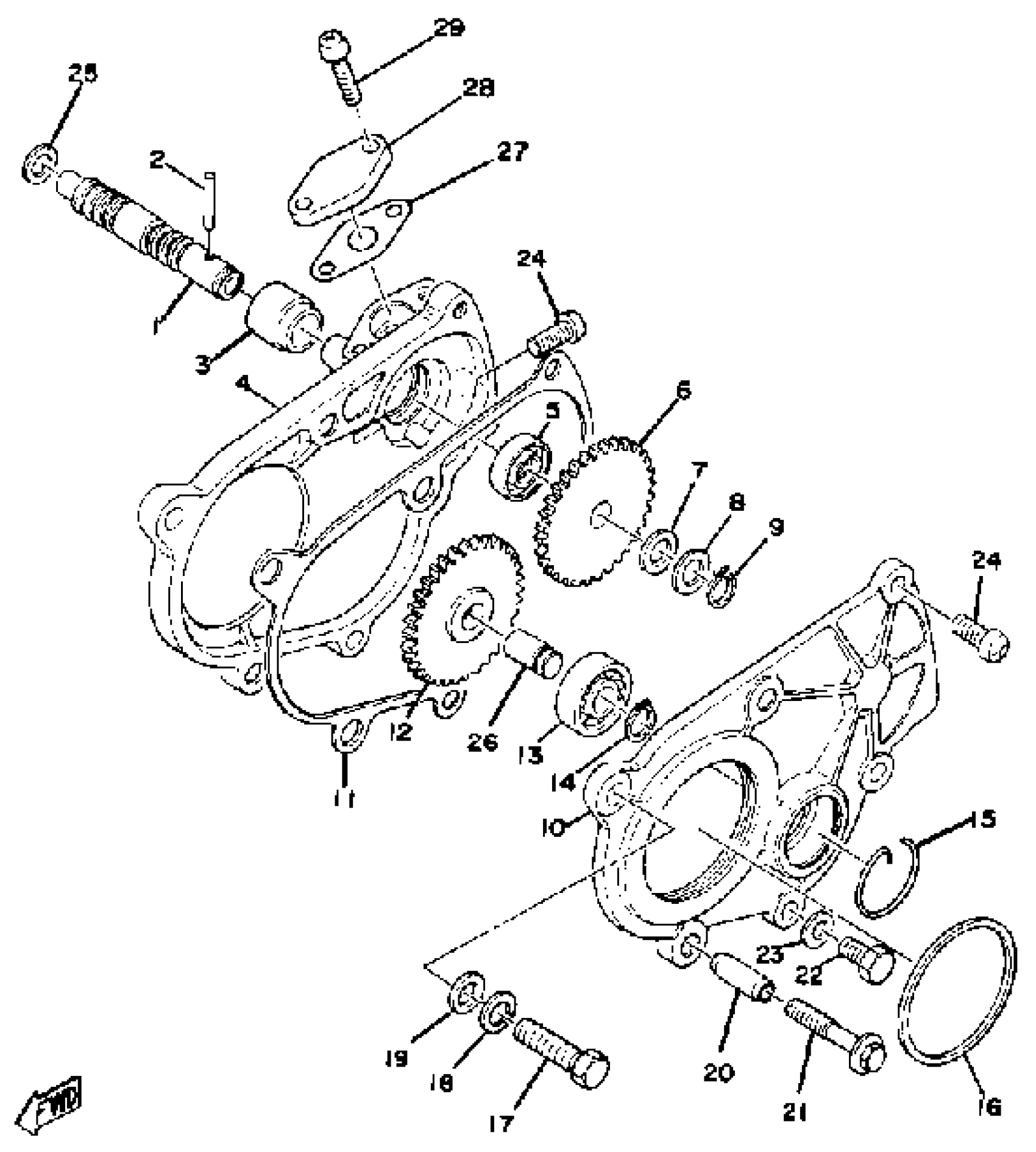

Yamaha ET250C 1979 PUMP DRIVE - GEAR ET250C Diagram
#
1
SHAFT, WORM
860-13175-00-00
Unavailable
2
PIN,DOWEL (137)
93603-22028-00
$3.76
3
METAL, WORM SHAFT OUTER
821-13176-00-00
$17.49
4
COVER, OIL PUMP
(839-15416-00-00)
Unavailable
5
OIL SEAL (J10)
93101-10090-00
$8.49
6
GEAR, DRIVE 2
821-13188-00-00
Unavailable
7
WASHER, WAVE (137)
90206-11016-00
Unavailable
8
PLATE, CAM THRUST
137-13148-00-00
Unavailable
9
CIRCLIP(10W)
99009-10400-00
$4.73
10
COVER, OIL PUMP R
8F3-15426-00-00
Unavailable
11
GASKET 2
860-15466-01-00
Unavailable
12
GEAR, IDLE
(8F3-13179-01-00)
Unavailable
13
BEARING (B6000RS)
93306-00003-00
Unavailable
14
CIRCLIP(10W)
99009-10400-00
$4.73
15
CLIP
(90468-12077-00)
Unavailable
16
OIL SEAL, SR-TYPE
93112-53004-00
Unavailable
17
BOLT, HEXAGON
97013-08030-00
Unavailable
18
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
19
.. WASHER, PLATE
92990-08600-00
Unavailable
20
PIN, DOWEL
91810-18022-00
Unavailable
21
BOLT, FLANGE
95817-06035-00
Unavailable
22
BOLT, HEXAGON
97017-06025-00
Unavailable
23
WASHER, PLATE 1832514600
90201-07076-00
Unavailable
24
SCREW, PAN
98507-06014-00
Unavailable
25
WASHER, PLATE (1E7)
90201-08624-00
Unavailable
26
SHAFT, IDLE GEAR
8F3-13342-00-00
Unavailable
27
GASKET
821-17818-02-00
Unavailable
28
CAP, HOUSING
824-17819-00-00
Unavailable
29
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
