PRIMARY SHEAVE ET250E

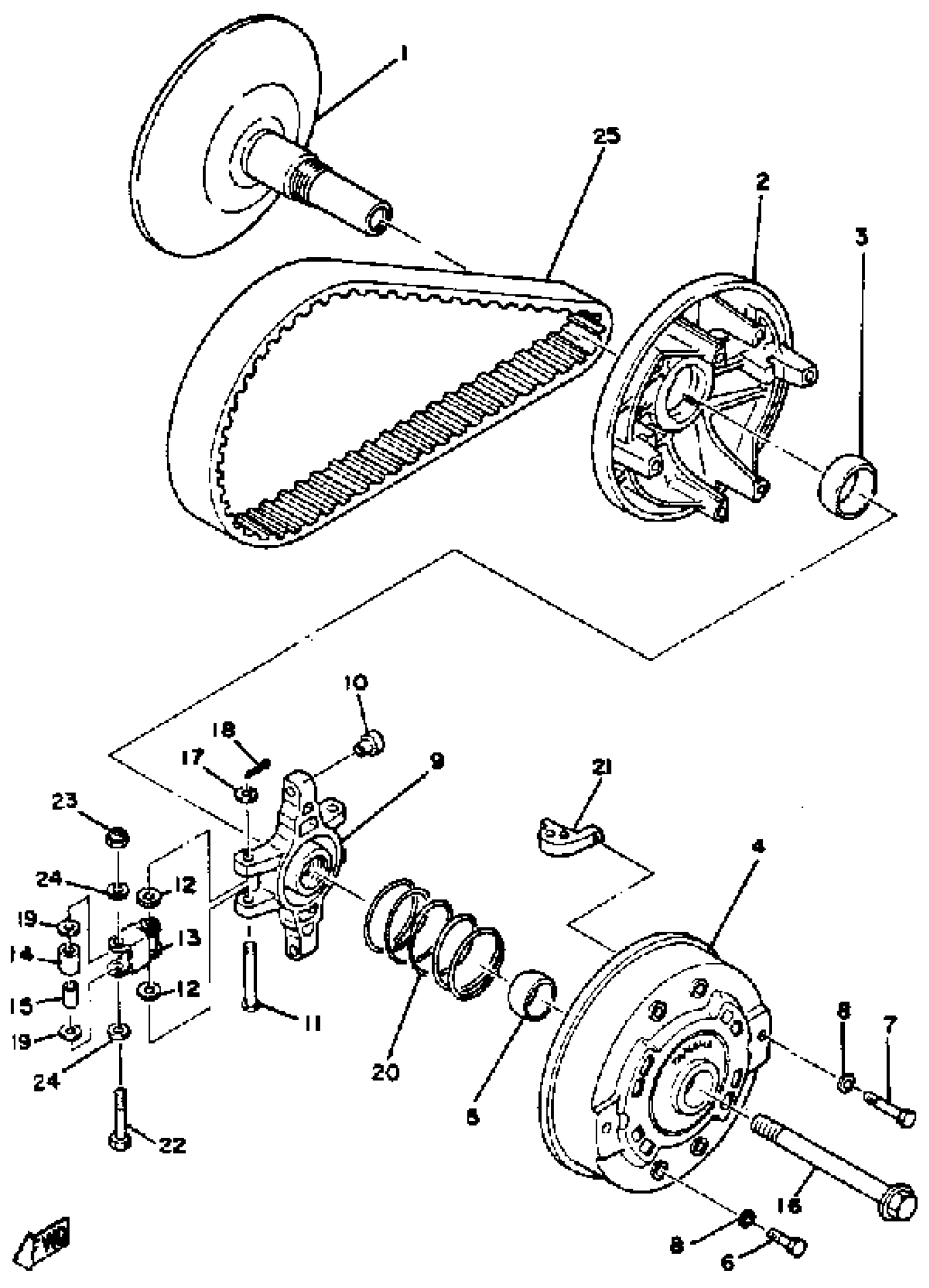

Yamaha ET250C 1979 PRIMARY SHEAVE ET250E Diagram
#
Description
Price
1
PRI. FIXED SHEAVESHEAVE COMP.
8H9-W1761-00-00
Unavailable
2
SHEAVE, PRI SLIDING
8H9-17621-01-00
Unavailable
3
BUSH, SPEC''L SHAPE
90389-39023-00
Unavailable
4
CAP
8H9-17631-00-00
Unavailable
5
BUSH, SPEC''L SHAPE
90389-26022-00
Unavailable
6
BOLT, HEXAGON
97017-06025-00
$4.24
7
BOLT (682)
97095-06040-00
$1.86
8
WASHER, SPRING
92995-06100-00
Unavailable
9
SPIDER
8H9-17627-00-00
Unavailable
10
SLIDER
8F2-17653-00-00
$13.49
11
PIN, CLEVIS
90240-07112-00
Unavailable
12
WASHER, PLATE
90201-06104-00
$5.60
13
WEIGHT
8H9-17632-01-00
Unavailable
14
COLLAR (8H9)
90387-09698-00
$5.60
15
COLLAR (8H9)
90387-06697-00
$16.99
16
BOLT
8H9-17647-00-00
Unavailable
17
WASHER, PLATE
90201-06M08-00
Unavailable
18
PIN, COTTER
91490-25020-00
Unavailable
19
WASHER, PLATE
90201-09728-00
Unavailable
20
SPRING, COMPRESSION
90501-55559-00
Unavailable
21
CAM
8H9-17623-00-00
Unavailable
22
BOLT (90101-06663)
90101-06663-00
Unavailable
23
NUT, SELF-LOCKING
95617-06100-00
Unavailable
24
WASHER, PLATE (8H9)
90201-06727-00
Unavailable
25
V-BELT
820-17641-01-00
Unavailable
25
CLUTCH TUNE-UP KIT
(8H9-00000-50-00)
Unavailable
25
PRIMARY SHEAVE ASSEMBLY
(8H9-17601-09-00)
Unavailable
