Description

Price

1

PRI. FIXED SHEAVESHEAVE COMP.

8H9-W1761-00-00

Unavailable

2

SHEAVE, PRI SLIDING

8H9-17621-01-00

Unavailable

3

BUSH, SPEC''L SHAPE

90389-39023-00

Unavailable

4

CAP

8H9-17631-00-00

Unavailable

5

BUSH, SPEC''L SHAPE

90389-26022-00

Unavailable

6

BOLT, HEXAGON

97017-06025-00

$4.24

7

BOLT (682)

97095-06040-00

$1.86

8

WASHER, SPRING

92995-06100-00

Unavailable

9

SPIDER

8H9-17627-00-00

Unavailable

10

SLIDER

8F2-17653-00-00

$13.49

11

PIN, CLEVIS

90240-07112-00

Unavailable

12

WASHER, PLATE

90201-06104-00

$5.60

13

WEIGHT

8H9-17632-01-00

Unavailable

14

COLLAR (8H9)

90387-09698-00

$5.60

15

COLLAR (8H9)

90387-06697-00

$16.99

16

BOLT

8H9-17647-00-00

Unavailable

17

WASHER, PLATE

90201-06M08-00

Unavailable

18

PIN, COTTER

91490-25020-00

Unavailable

19

WASHER, PLATE

90201-09728-00

Unavailable

20

SPRING, COMPRESSION

90501-55559-00

Unavailable

21

CAM

8H9-17623-00-00

Unavailable

22

BOLT (90101-06663)

90101-06663-00

Unavailable

23

NUT, SELF-LOCKING

95617-06100-00

Unavailable

24

WASHER, PLATE (8H9)

90201-06727-00

Unavailable

25

V-BELT

820-17641-01-00

Unavailable

25

CLUTCH TUNE-UP KIT

(8H9-00000-50-00)

Unavailable

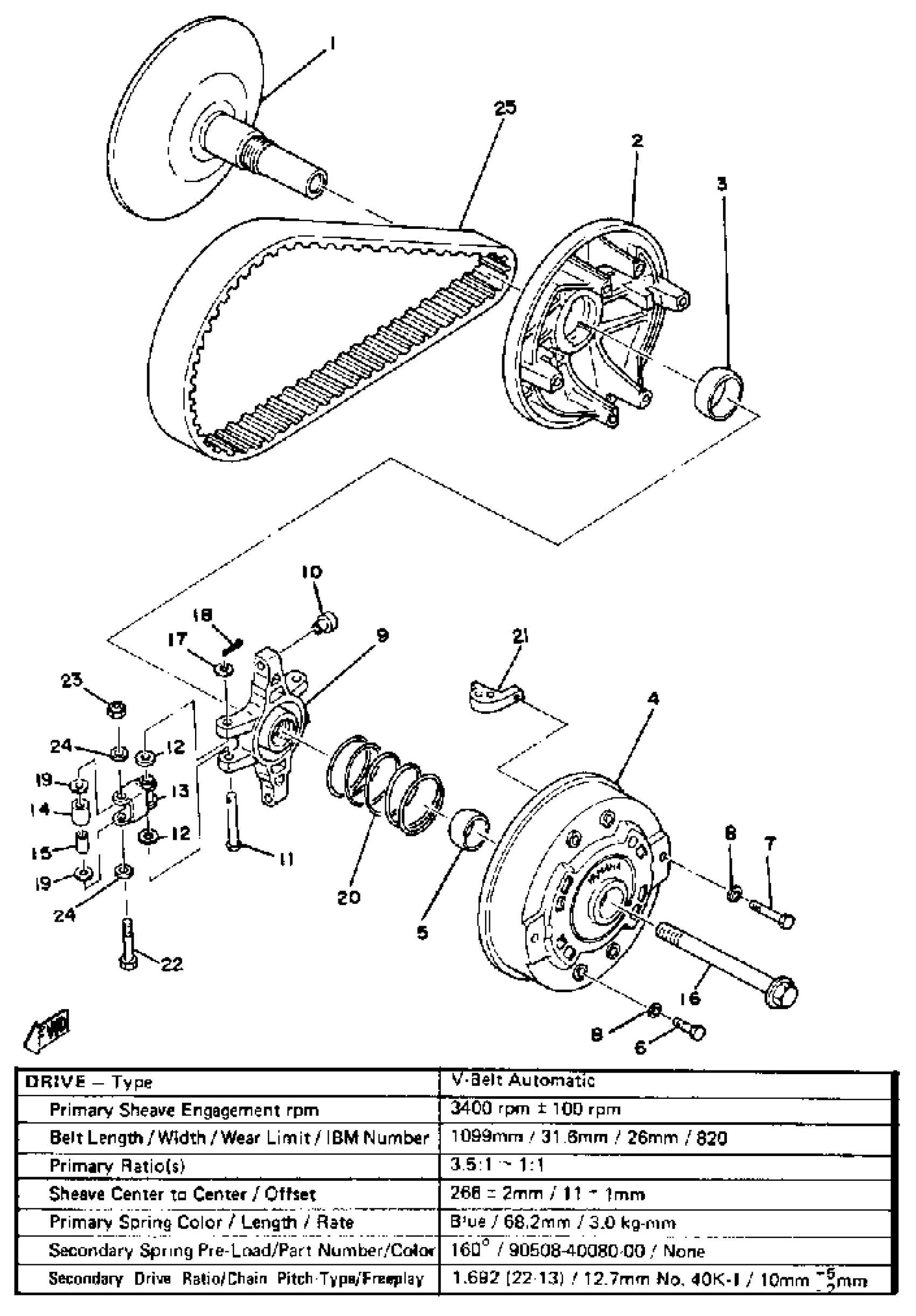

Yamaha ET250C 1979 PRIMARY SHEAVE ET250D Diagram

PRI. FIXED SHEAVESHEAVE COMP.

SHEAVE, PRI SLIDING

BUSH, SPEC''L SHAPE

CAP

BUSH, SPEC''L SHAPE

BOLT, HEXAGON

BOLT (682)

WASHER, SPRING

SPIDER

SLIDER

PIN, CLEVIS

WASHER, PLATE

WEIGHT

COLLAR (8H9)

COLLAR (8H9)

BOLT

WASHER, PLATE

PIN, COTTER

WASHER, PLATE

SPRING, COMPRESSION

CAM

BOLT (90101-06663)

NUT, SELF-LOCKING

WASHER, PLATE (8H9)

V-BELT

CLUTCH TUNE-UP KIT
