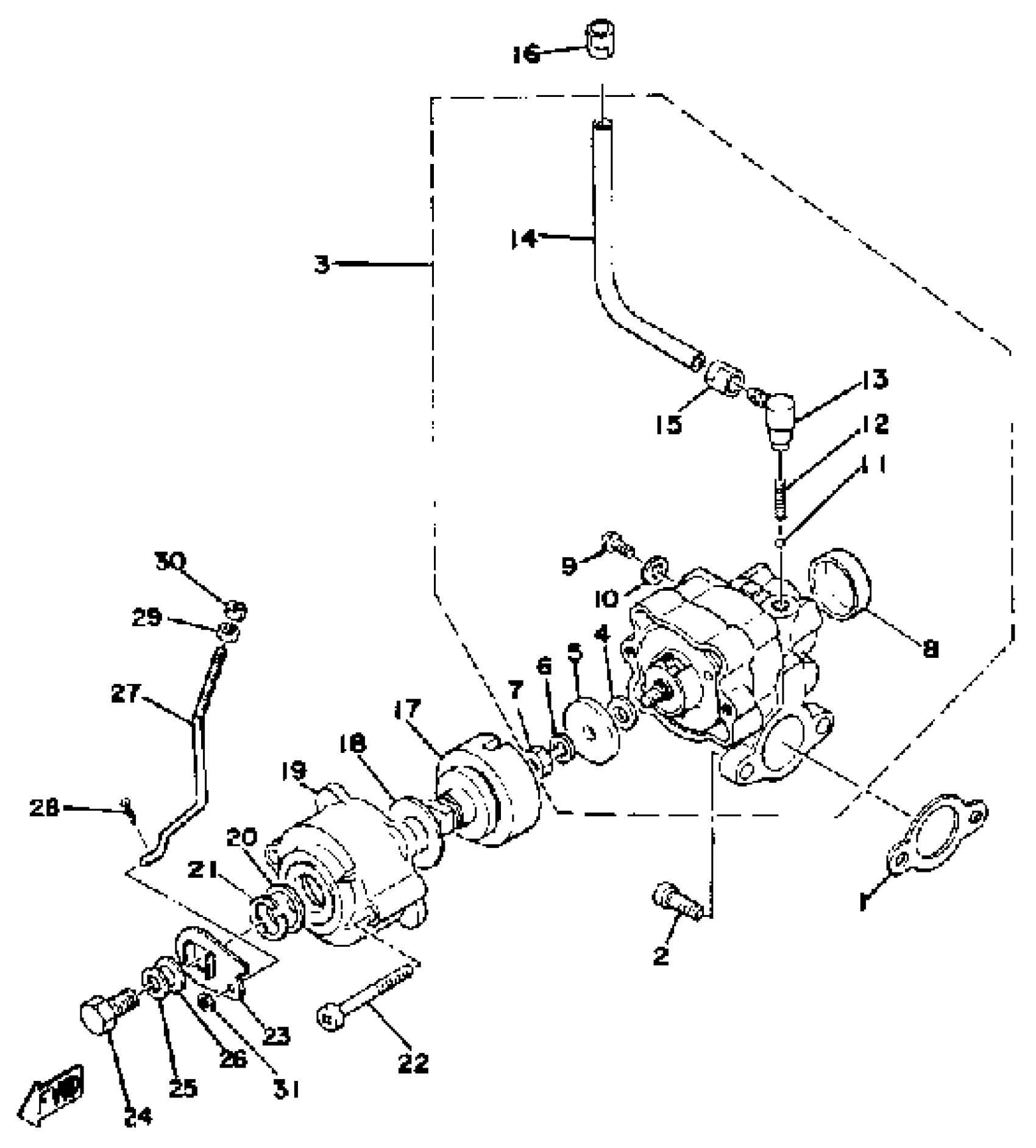

Yamaha ET250C 1979 OIL PUMP ET250C Diagram

#

Description
Price

1

GASKET, PUMP CASE

126-13116-01-00

$8.99

2

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

3

OIL PUMP ASSEMBLY

(8F3-13101-01-00)

Unavailable

4

SHIM,PLUNGER

137-13137-00-03

$5.49

4

SHIM,PLUNGER

137-13137-00-05

$6.99

4

SHIM,PLUNGER

137-13137-00-10

$7.99

5

PLATE, ADJUSTING

137-13138-01-00

Unavailable

6

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

NUT, HEXAGON (663)

95380-05600-00

$8.49

8

. PLUG

90338-21100-00

Unavailable

9

SCREW, BIND

98980-04008-00

Unavailable

10

GASKET 137131870000

90430-04004-00

$9.49

11

BALL

93505-32002-00

$2.92

12

SPRING (278-13169-00)

90501-02018-00

$9.49

13

NOZZLE

353-13552-01-00

$9.99

14

HOSE (L200)

90445-05N13-00

Unavailable

15

CLIP (214-13164-00)

90468-02033-00

Unavailable

16

CLIP (214-13164-00)

90468-02033-00

Unavailable

17

SHAFT, PUMP CONTROL

860-13153-00-00

Unavailable

18

SEAL, GREASE

860-13119-00-00

Unavailable

19

COVER, AJST PULLEY

(812-13146-00-00)

Unavailable

20

SHIM

(812-13147-00-00)

Unavailable

21

CIRCLIP(J51)

99080-09600-00

Unavailable

22

SCREW, PAN

98507-04030-00

Unavailable

23

LEVER, PUMP CONTROL

8G5-13156-00-00

Unavailable

24

BOLT (661)

97013-06012-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

27

ROD, PUMP CONTROL

(8G5-13157-00-00)

Unavailable

28

. PIN, COTTER

91490-12012-00

Unavailable

29

NUT, HEXAGON (807-13139-00)

90170-03008-00

Unavailable

30

NUT, SELF-LOCKING (838-13139-00)

90185-03007-00

Unavailable

31

YBS66-4 WASHER, PLAIN

92990-04200-00

Unavailable
