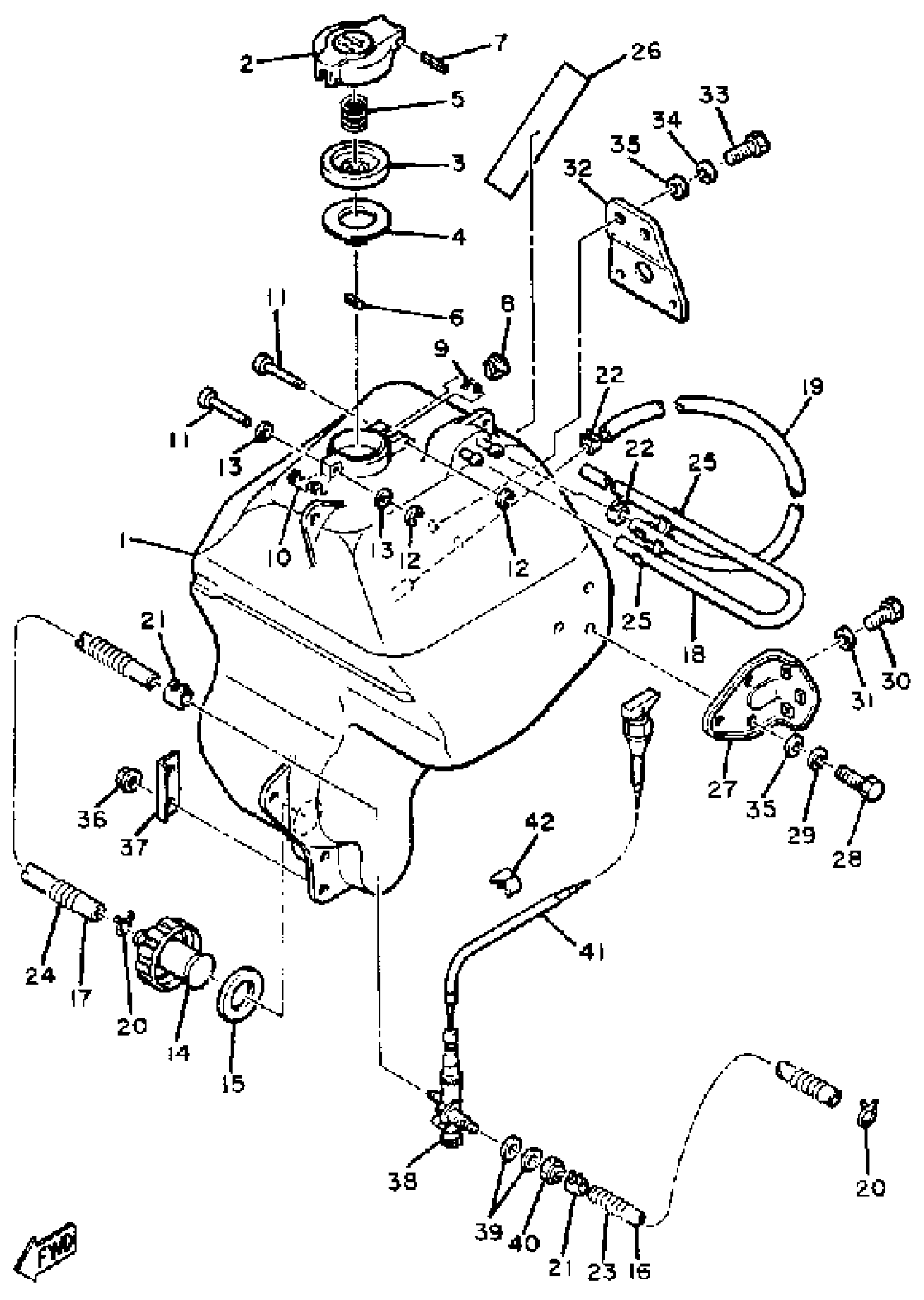

Yamaha ET250C 1979 FUEL TANK ET250E Diagram

#

Description
Price

1

FUEL TANK

8F3-24111-00-00

Unavailable

2

BODY, CAP

8A5-24611-00-00

Unavailable

3

DISK,CAP

813-24613-01-00

$20.99

4

UNAVAILABLE IN PRICE BOOK

8F7-24624-10-00

Unavailable

5

SPRING, CAP

90501-20130-00

$8.49

6

PIN, SPRING

91690-30016-00

Unavailable

7

PIN, SPRING

91609-25032-00

$2.49

8

HOOK

83M-24628-00-00

$24.99

9

SPRING, TORSION (813-24637-00)

90508-08003-00

Unavailable

10

SPRING, TORSIOW (8F3)

90508-08353-00

Unavailable

11

PIN (813)

90249-03017-00

$7.49

12

CIRCLIP (604)

93430-02001-00

$8.49

13

WASHER, PLATE 8077743700

90201-03313-00

$9.49

14

FILTER ASSEMBLY

8R4-24560-00-00

Unavailable

15

PACKING, FILTER

8F3-24564-00-00

$13.49

16

HOSE

90446-11326-00

Unavailable

17

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

Unavailable

18

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

19

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

Unavailable

20

CLIP (8J7)

90467-11009-00

Unavailable

21

CLIP

90467-11028-00

Unavailable

22

CLIP (8A1)

90467-09026-00

Unavailable

23

PROTECTOR, PIPE

(8G5-24326-00-00)

Unavailable

24

PROTECTOR, PIPE

8F3-24327-00-00

Unavailable

25

CLIP

(90468-15076-00)

Unavailable

26

EMBLEM 1

(8G5-24161-00-00)

Unavailable

27

BRACKET, FUEL TNK 1

(8F3-24191-01-00)

Unavailable

28

BOLT(62E)

97013-08012-00

Unavailable

29

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

30

BOLT, HEXAGON

97017-08016-00

Unavailable

31

WASHER, CONICAL SPRING

90208-08011-00

Unavailable

32

BRACKET, FUEL TNK 2

(8F3-24192-00-00)

Unavailable

33

BOLT, HEXAGON

97017-08016-00

Unavailable

34

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

35

WASHER, PLATE (4W3)

90201-086A3-00

Unavailable

36

NUT, NYLON

95717-08300-00

Unavailable

37

WASHER, SPECIAL

(8F3-24186-00-00)

Unavailable

38

FUEL COCK ASSEMBLY

84M-24500-00-00

Unavailable

39

WASHER, PLATE

(90201-12754-00)

Unavailable

40

NUT, SELF LOCKING (23X)

90185-12119-00

Unavailable

41

LEVER, FUEL CHANGE

8G5-24575-00-00

Unavailable

42

CLIP, WIRE 2072639100

90468-15009-00

Unavailable
