Description

Price

1

CDI MAGNETO ASSEMBLY

(8H4-85500-20-00)

Unavailable

2

. COIL SOURCE 1

8H4-85511-20-00

Unavailable

3

COIL, LIGHTING 1

(8H4-85513-20-00)

Unavailable

4

. COIL, CHARGE

8H4-85541-20-00

Unavailable

5

. SPACER

8G8-85519-20-00

Unavailable

6

SCREW, PAN

98507-05035-00

$8.49

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

. COIL, PULSER (8G8-85580-20)

8H4-85580-20-00

Unavailable

9

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

LEAD WIRE ASSEMBLY

(8H4-85515-20-00)

Unavailable

12

CLAMP, LEAD

104-81328-20-00

$6.99

13

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

15

. ROTOR ASSEMBLY

8H4-85550-20-00

Unavailable

16

SCREW, BIND(J39)

98980-06014-00

Unavailable

17

WASHER, PLATE 6261117600

90201-06043-00

Unavailable

18

FAN

8G8-12611-01-00

Unavailable

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

NUT

90170-16425-00

Unavailable

23

WASHER(JN5)

92907-16100-00

Unavailable

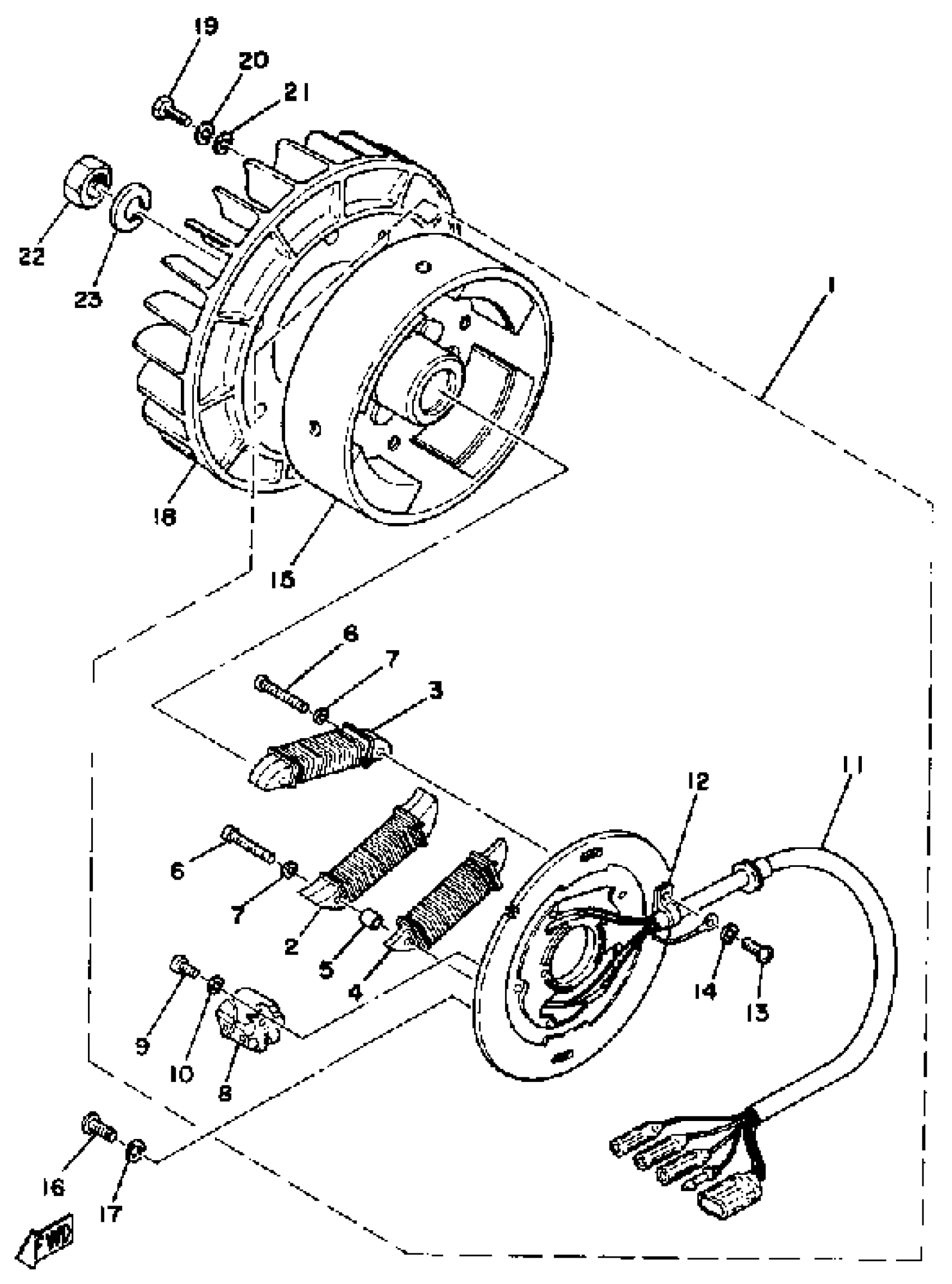

Yamaha ET250C 1979 FLYWHEEL MAGNETO ET250C Diagram

CDI MAGNETO ASSEMBLY

. COIL SOURCE 1

COIL, LIGHTING 1

. COIL, CHARGE

. SPACER

SCREW, PAN

YBS67-5 WASHER, SPRING

. COIL, PULSER (8G8-85580-20)

SCREW, PAN HEAD (E56)

YBS67-4 WASHER, SPRING

LEAD WIRE ASSEMBLY

CLAMP, LEAD

SCREW, PAN HEAD (713)

YBS67-4 WASHER, SPRING

. ROTOR ASSEMBLY

SCREW, BIND(J39)

WASHER, PLATE 6261117600

FAN

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, PLAIN (646)

NUT

WASHER(JN5)
