CRANKSHAFT - PISTON ET250C

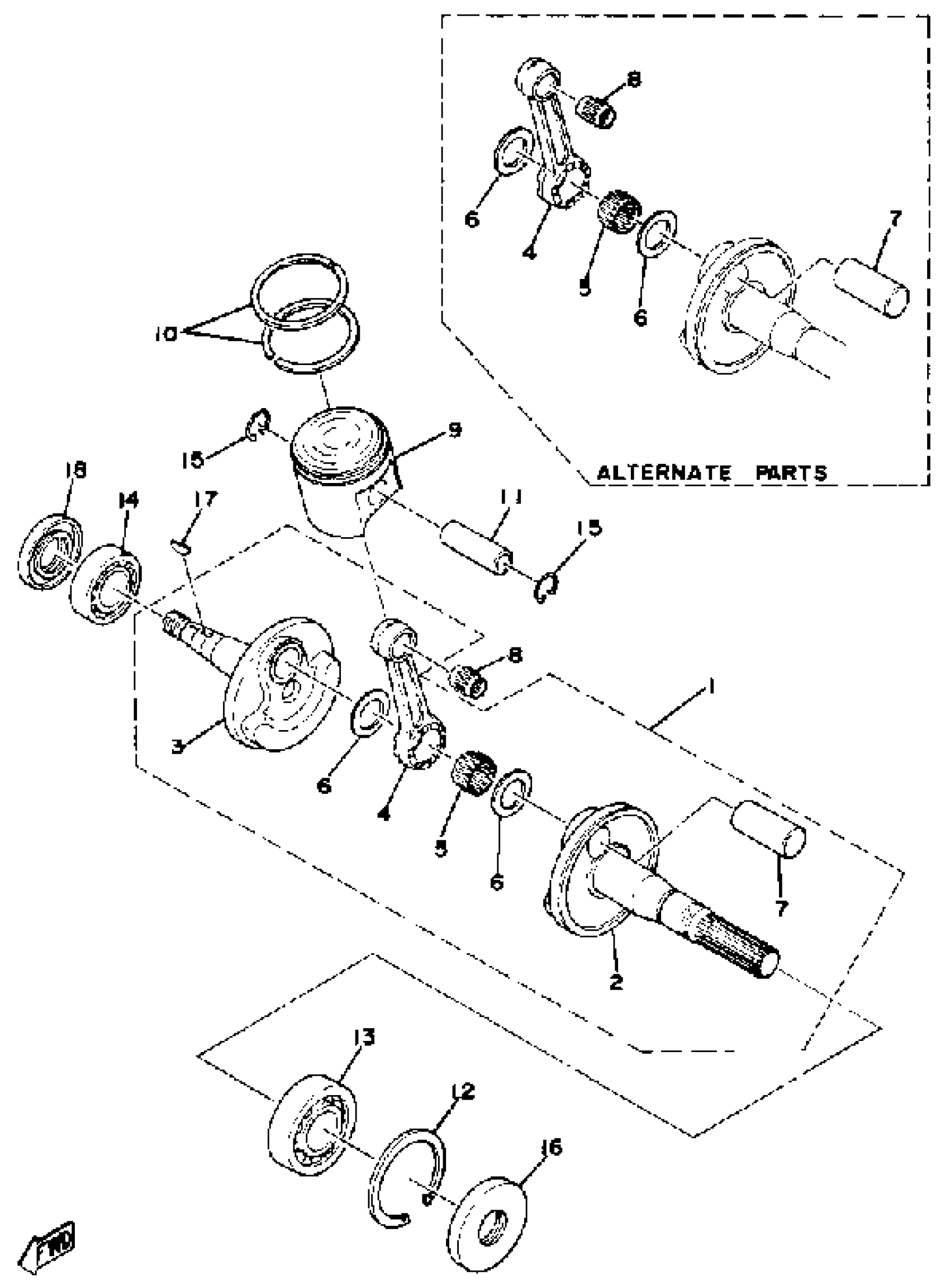

Yamaha ET250C 1979 CRANKSHAFT - PISTON ET250C Diagram
#
Description
Price
1
CRANKSHAFT ASSEMBLY
8F3-11400-00-00
Unavailable
2
CRANK 1
(8F3-11412-00-00)
Unavailable
3
CRANK 2
(8F3-11422-00-00)
Unavailable
4
. ROD, CONNECTING
881-11651-00-00
Unavailable
5
BEARING
93310-424E8-00
Unavailable
6
WASHER (152-11685-00)
90209-24073-00
$14.99
7
. PIN, CRANK 1
857-11681-00-00
Unavailable
8
BRG,CYL-CAL ROLLER 15.6G KY
93310-218A6-00
$38.99
9
PISTON STD (STD)
8G5-11631-01-96
Unavailable
9
PISTON 1 O/S 0.25 (1ST O/S 0.25MM)
8G5-11635-01-00
Unavailable
9
PISTON 2 O/S 0.50 (2ND O/S 0.50MM)
8G5-11636-01-00
Unavailable
9
PISTON 3 O/S 0.75
(8G5-11637-01-00)
Unavailable
9
PISTON 4 O/S 1.00
(8G5-11638-01-00)
Unavailable
10
PISTON RINGSET STD
8F3-11601-00-00
Unavailable
10
PISTON RINGSET 1ST
8F3-11601-10-00
Unavailable
10
PISTON RINGSET 2ND
8F3-11601-20-00
Unavailable
10
PISTON RINGSET 3RD
8F3-11601-30-00
Unavailable
10
PISTON RINGSET 4TH
8F3-11601-40-00
Unavailable
11
PIN, PISTON
818-11633-00-00
Unavailable
12
CIRCLIP(8E6)
93450-72048-00
Unavailable
13
BEARING(4GB)
93306-30629-00
Unavailable
14
BEARING (B6203)
93306-20613-00
Unavailable
15
CLIP 6041163400
93450-20026-00
Unavailable
16
OIL SEAL, SD-TYPE (FPJ-32-72-8-1 TS)
93102-32161-00
Unavailable
17
KEY, WOODRUFF
90280-05001-00
Unavailable
18
OIL SEAL,SD-TYPE
93102-30128-00
Unavailable
