CARBURETOR ET250C

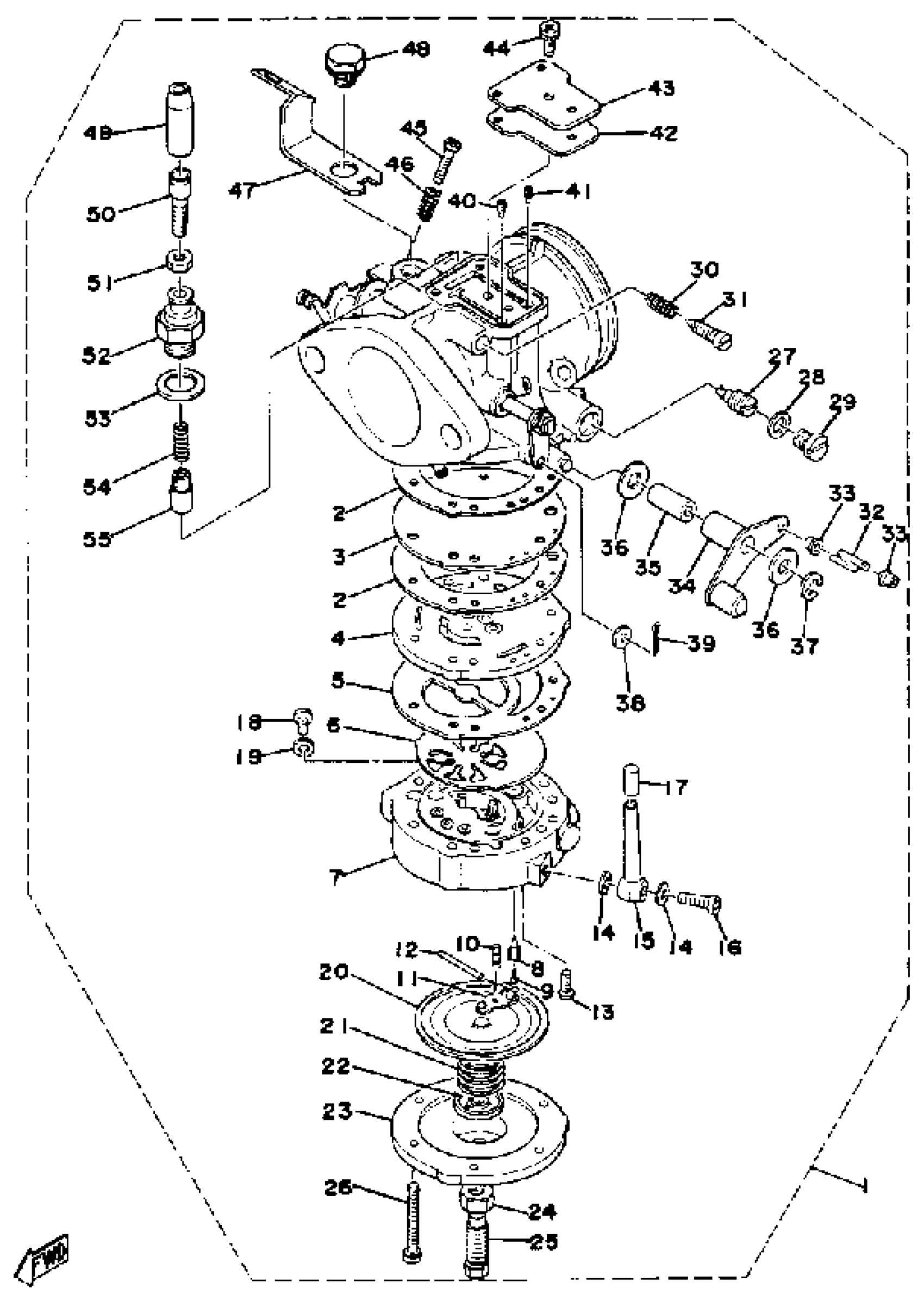

Yamaha ET250C 1979 CARBURETOR ET250C Diagram
#
1
CARBURETOR ASSEMBLY 1
(8G5-14501-01-00)
Unavailable
2
GASKET
879-14536-09-00
$18.49
3
. DIAPHRAGM, PUMP
879-14541-01-00
Unavailable
4
BODY, PUMP 1
(865-14542-01-00)
Unavailable
5
GASKET
865-14553-09-00
$16.49
6
VALVE,CHECK
806-14552-01-00
$56.99
7
DIAPHRAGM, PUMP
(8G5-14541-00-00)
Unavailable
8
VALVE
838-14546-00-00
$43.99
9
. PIN, FLOAT
676-14186-00-00
Unavailable
10
. SPRING
810-14556-00-00
Unavailable
11
ARM, FLOAT
(810-14547-00-00)
Unavailable
12
PIN, FLOAT ARM
(806-14548-00-00)
Unavailable
13
SCREW, FLAT
98707-03008-00
$7.49
14
. WASHER
806-14559-00-00
Unavailable
15
. PIPE, AIRVENT
810-14197-02-00
Unavailable
16
. SCREW
8A1-14592-00-00
Unavailable
17
. CAP, BLIND
810-24462-01-00
Unavailable
18
SCREW
(806-14567-01-00)
Unavailable
19
. WASHER
810-14597-00-00
Unavailable
20
DIAPHRAGM
810-14545-00-00
Unavailable
21
. SPRING, COMPRESSION
90501-06213-00
Unavailable
22
SEAT, SPRING
(810-14136-00-00)
Unavailable
23
BODY, PUMP 3
(810-14544-01-00)
Unavailable
24
. NUT
95380-08700-00
Unavailable
25
. SCREW, STOP
884-14565-01-00
Unavailable
26
SCREW
(824-14567-00-00)
Unavailable
27
. JET, MAIN #125 (125)
845-14516-25-00
Unavailable
27
. JET, MAIN #130 (130)
845-14516-30-00
Unavailable
27
. JET, MAIN #138 (138)
845-14516-38-00
Unavailable
28
. WASHER
838-14597-00-00
Unavailable
29
SCREW
(845-14567-00-00)
Unavailable
30
SPRING, COMPRESSION
(90501-10237-00)
Unavailable
31
SCREW, ADJUST
(865-14522-00-00)
Unavailable
32
. ROD
8F3-14577-00-00
Unavailable
33
. COLLAR
865-14534-00-00
Unavailable
34
. LEVER, LINK
8F3-14575-01-00
Unavailable
35
. COLLAR
8F3-14534-00-00
Unavailable
36
. WASHER
8F3-14557-00-00
Unavailable
37
. WASHER
8F3-14597-00-00
Unavailable
38
WASHER, PLATE(3TJ)
90202-06056-00
Unavailable
39
. PIN, COTTER
91490-12012-00
Unavailable
40
. JET #50 (#50)
865-14515-50-00
Unavailable
41
JET #38
(865-14515-38-00)
Unavailable
42
GASKET
(865-14537-00-00)
Unavailable
43
PLATE
(8A1-14527-00-00)
Unavailable
44
. SCREW, WITH WASHER
90159-05005-00
Unavailable
45
. SCREW, PAN HEAD
90157-04010-00
Unavailable
46
. SPRING, COMPRESSION
90501-12229-00
Unavailable
47
PLATE, STAY
(8F3-14572-01-00)
Unavailable
48
. SCREW
8G6-14592-00-00
Unavailable
49
BOLT, STARTER CABLE ADJUSTING
8A6-14977-00-00
Unavailable
50
. NUT, CABLE ADJUSTING
8E7-14161-00-00
Unavailable
51
CAP, PLUNGER
8A6-14969-00-00
Unavailable
52
. WASHER, PLATE
90201-12581-00
Unavailable
53
. SPRING, COMPRESSION
90501-08507-00
Unavailable
54
. PLUNGER, STARTER
8G5-14993-00-00
Unavailable
