Description

Price

1

CDI MAGNETO ASSEMBLY

(8J5-85500-20-00)

Unavailable

2

. COIL SOURCE 1

8H4-85511-20-00

Unavailable

3

COIL, LIGHTING 1

(8H4-85513-20-00)

Unavailable

4

. COIL, CHARGE

8H4-85541-20-00

Unavailable

5

. SPACER

8G8-85519-20-00

Unavailable

6

. COIL, PULSER (8G8-85580-20)

8H4-85580-20-00

Unavailable

7

LEAD WIRE ASSEMBLY

(8H4-85515-20-00)

Unavailable

8

SCREW, PAN

98507-05035-00

$8.49

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

SCREW, PAN HEAD

98507-04018-00

$2.19

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

CLAMP, LEAD

104-81328-20-00

$6.99

13

SCREW, PAN HEAD

(8J5-81347-20-00)

Unavailable

14

ROTOR ASSEMBLY

(8J5-85550-20-00)

Unavailable

15

SCREW, BIND(J39)

98980-06014-00

$9.49

16

WASHER, PLATE 6261117600

90201-06043-00

Unavailable

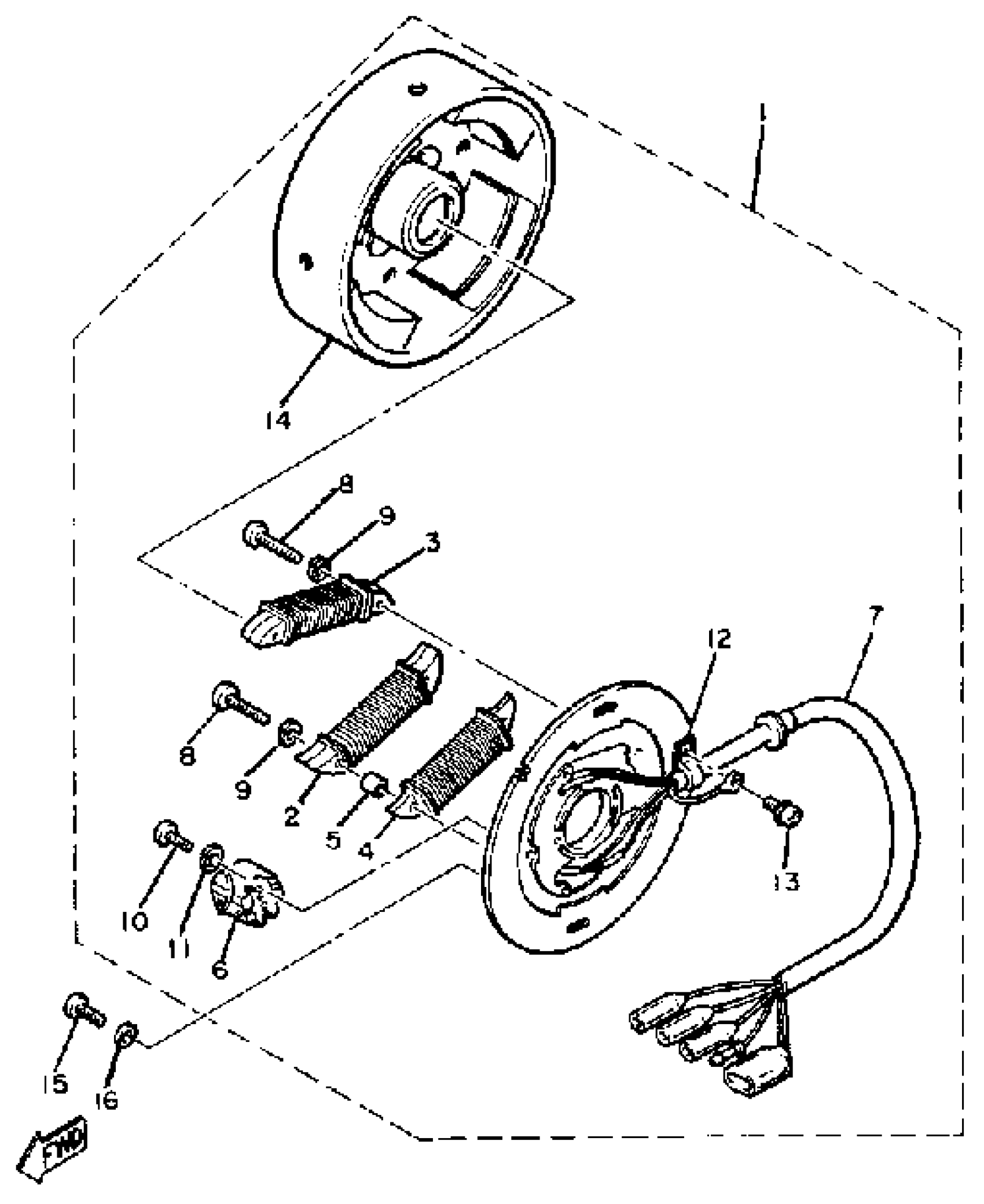

Yamaha ET250C 1979 C - D - I - MAGNETO ET250E Diagram

CDI MAGNETO ASSEMBLY

. COIL SOURCE 1

COIL, LIGHTING 1

. COIL, CHARGE

. SPACER

. COIL, PULSER (8G8-85580-20)

LEAD WIRE ASSEMBLY

SCREW, PAN

YBS67-5 WASHER, SPRING

SCREW, PAN HEAD

YBS67-4 WASHER, SPRING

CLAMP, LEAD

SCREW, PAN HEAD

ROTOR ASSEMBLY

SCREW, BIND(J39)

WASHER, PLATE 6261117600
