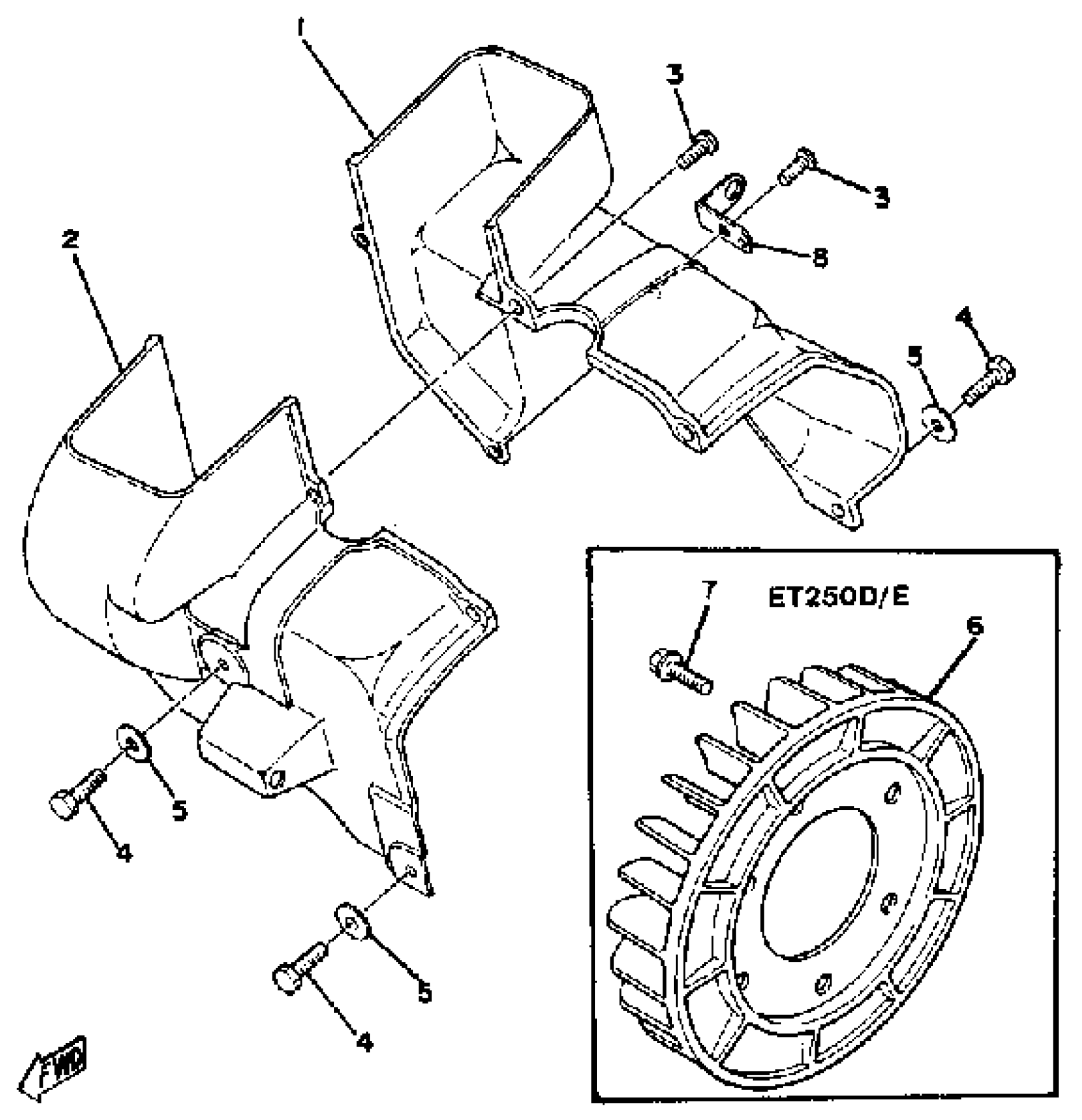

Yamaha ET250C 1979 AIR SHROUD - FAN ET250C\D\E Diagram

#

Description
Price

1

AIR SHROUD, CYLINDER 1

8F3-12651-01-00

Unavailable

2

AIR SHROUD, CYLINDER 2

8F3-12652-00-00

Unavailable

3

SCREW, PAN

98517-06012-00

$3.78

3

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

5

WASHER, PLATE 8221447500

90201-06057-00

$5.60

6

FAN

8G8-12611-01-00

Unavailable

7

BOLT, FLANGE

95817-06012-00

$1.43

8

STAY 1

8H4-77125-00-00

Unavailable
