SPEEDOMETER UNIT

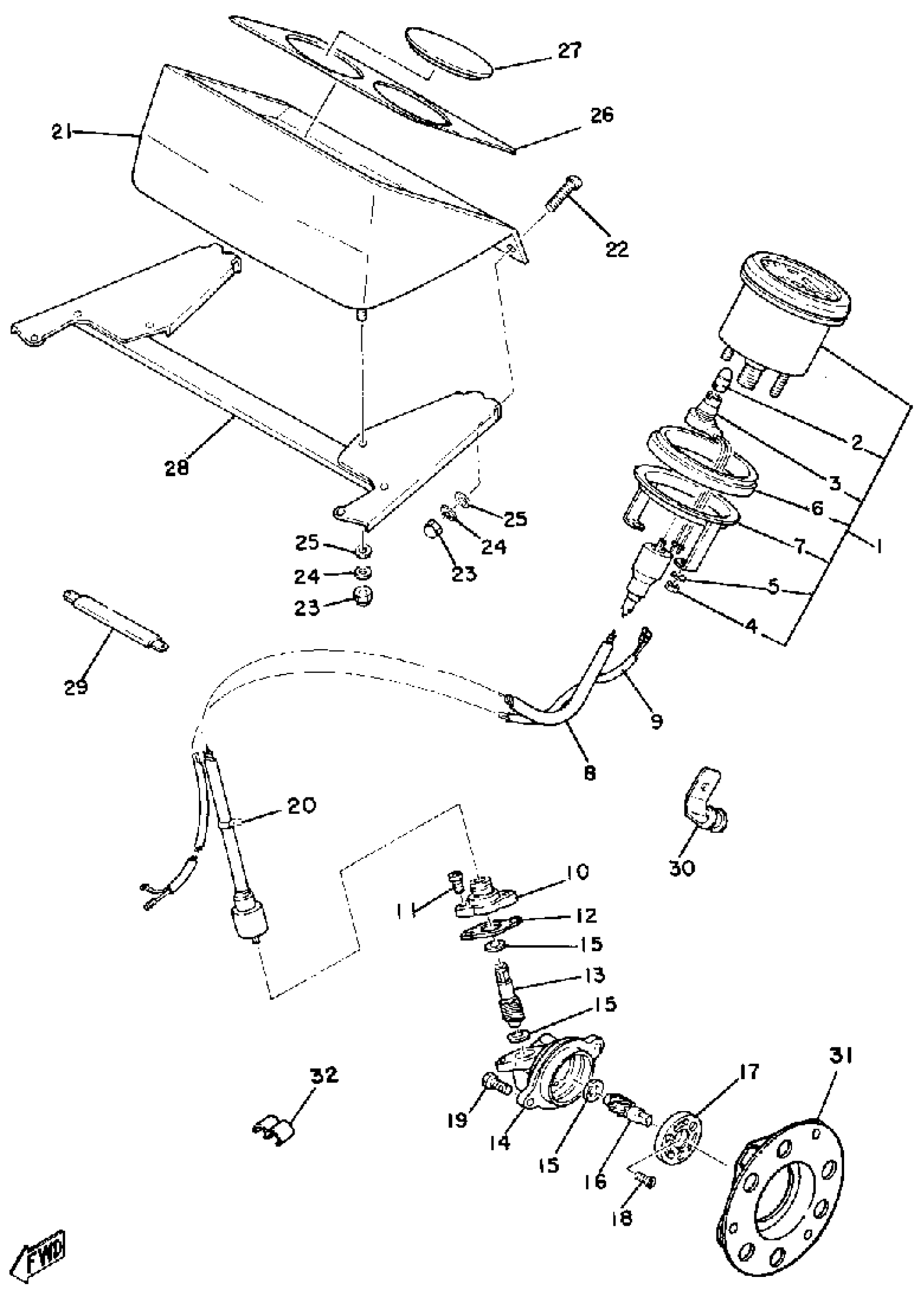

Yamaha ET250B 1978 SPEEDOMETER UNIT Diagram
#
1
SPEEDOMETER ASSEMBLY
8G6-83510-21-00
Unavailable
2
BULB (12V-3.4W)
123-83516-21-00
$4.26
3
SOCKET, METER
(861-83536-40-00)
Unavailable
4
NUT, HEXAGON (663)
95380-05600-00
$8.49
5
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
6
DAMPER, METER
8G6-83523-00-00
Unavailable
7
. BRACKET, METER
8G6-83519-00-00
Unavailable
8
SPEEDOMETER CABLE
8F3-83550-01-00
Unavailable
9
WIRE, LEAD
(8F3-83553-00-00)
Unavailable
10
COVER, METER HOUSING
8E3-47721-10-00
Unavailable
11
SCREW,PAN HEAD (646)
98580-05012-00
$7.99
12
GASKET
810-47727-11-00
Unavailable
13
GEAR, DRIVEN (810-47741-10)
810-47741-11-00
Unavailable
14
HOUSING
8E6-47711-10-00
Unavailable
15
SHIM
810-47717-10-00
Unavailable
16
GEAR, DRIVE
810-47731-11-00
Unavailable
17
JOURNAL
853-47712-10-00
Unavailable
18
SCREW, FLAT
98707-04012-00
Unavailable
19
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
20
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
21
PANEL,METER
8G5-83611-00-00
Unavailable
22
SCREW, BINDING
98907-05020-00
Unavailable
23
NUT, HEXAGON (663)
95380-05600-00
$8.49
24
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
25
. WASHER, PLAIN
92990-05200-00
Unavailable
26
COVER, METER PANEL
8G6-83612-00-00
Unavailable
27
COVER, METER
8G5-83559-01-00
Unavailable
28
BRACKET, PANEL 1
8G5-83631-00-00
Unavailable
29
CLAMP
90465-05128-00
Unavailable
30
CLAMP
90465-06013-00
Unavailable
31
HOUSING, FRONT AXLE
8G5-47551-01-00
Unavailable
32
CLAMP, CORD
861-82361-00-00
Unavailable
