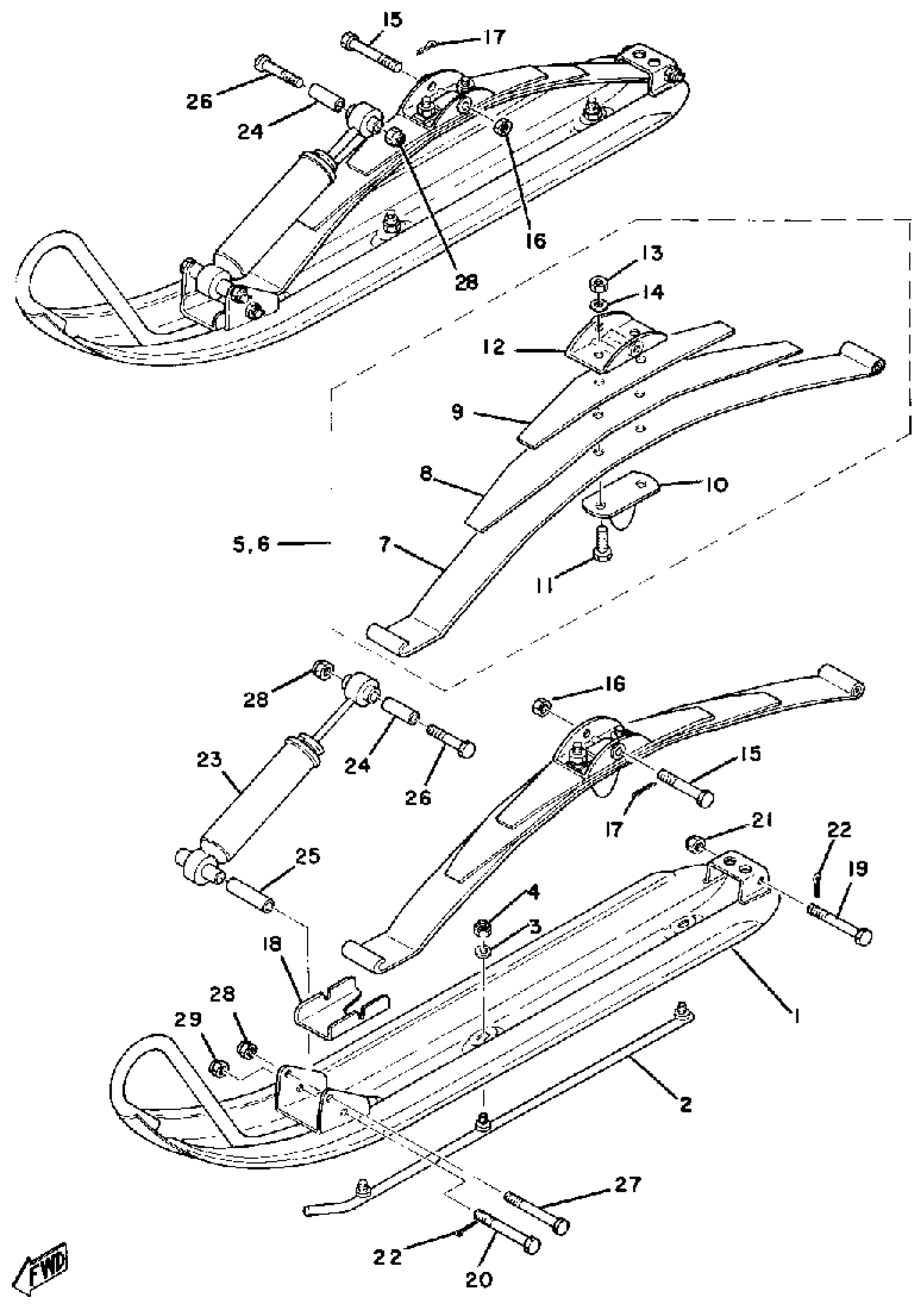

Yamaha ET250B 1978 SKI Diagram
#
Description
Price
1
SKI COMP
8F3-23710-01-00
$178.99
2
SKI RUNNER, 1
888-23731-01-XX
Unavailable
3
WASHER(6TC)
92907-08200-00
$8.49
4
NUT, NYLON
95717-08300-00
$2.70
5
SPRING ASSEMBLY 1
8F3-23760-00-00
Unavailable
6
SPRING ASSEMBLY 2
8F3-23770-00-00
Unavailable
7
LEAF 1
8F3-23761-10-00
Unavailable
8
LEAF 2
8F3-23762-10-00
Unavailable
9
LEAF 3
8F3-23763-10-00
Unavailable
10
. SEAT, SPRING 1
878-23768-00-00
Unavailable
11
. BOLT
90101-10060-00
Unavailable
12
. SADDLE 1
806-23766-00-00
Unavailable
13
NUT, FLANGE(3BM)
95704-10500-00
$4.29
14
WASHER, ROCK (8J5)
90215-10155-00
$13.99
15
BOLT, WITH HOLE
90102-10023-00
Unavailable
16
NUT, SLOTTED
95306-10900-00
Unavailable
17
PIN, COTTER
91490-25020-00
Unavailable
18
PLATE, WEAR
8F3-23735-00-00
Unavailable
19
BOLT PIN HOLE HEXAGON(8E6)
90102-08028-00
Unavailable
20
BOLT, PIN HOLE (8A7)
90102-08027-00
Unavailable
21
NUT, NYLON
95717-08300-00
$2.70
22
PIN, COTTER
91490-20025-00
Unavailable
23
CUSHION ASSY
8J6-23350-00-00
Unavailable
24
COLLAR (878)
90387-08262-00
Unavailable
25
COLLAR (864)
90387-08224-00
Unavailable
26
BOLT, HEXAGON
97013-08055-00
Unavailable
27
BOLT (6K8)
97013-08075-00
Unavailable
28
NUT, NYLON
95717-08300-00
$2.70
29
NUT, U
95617-08100-00
Unavailable
