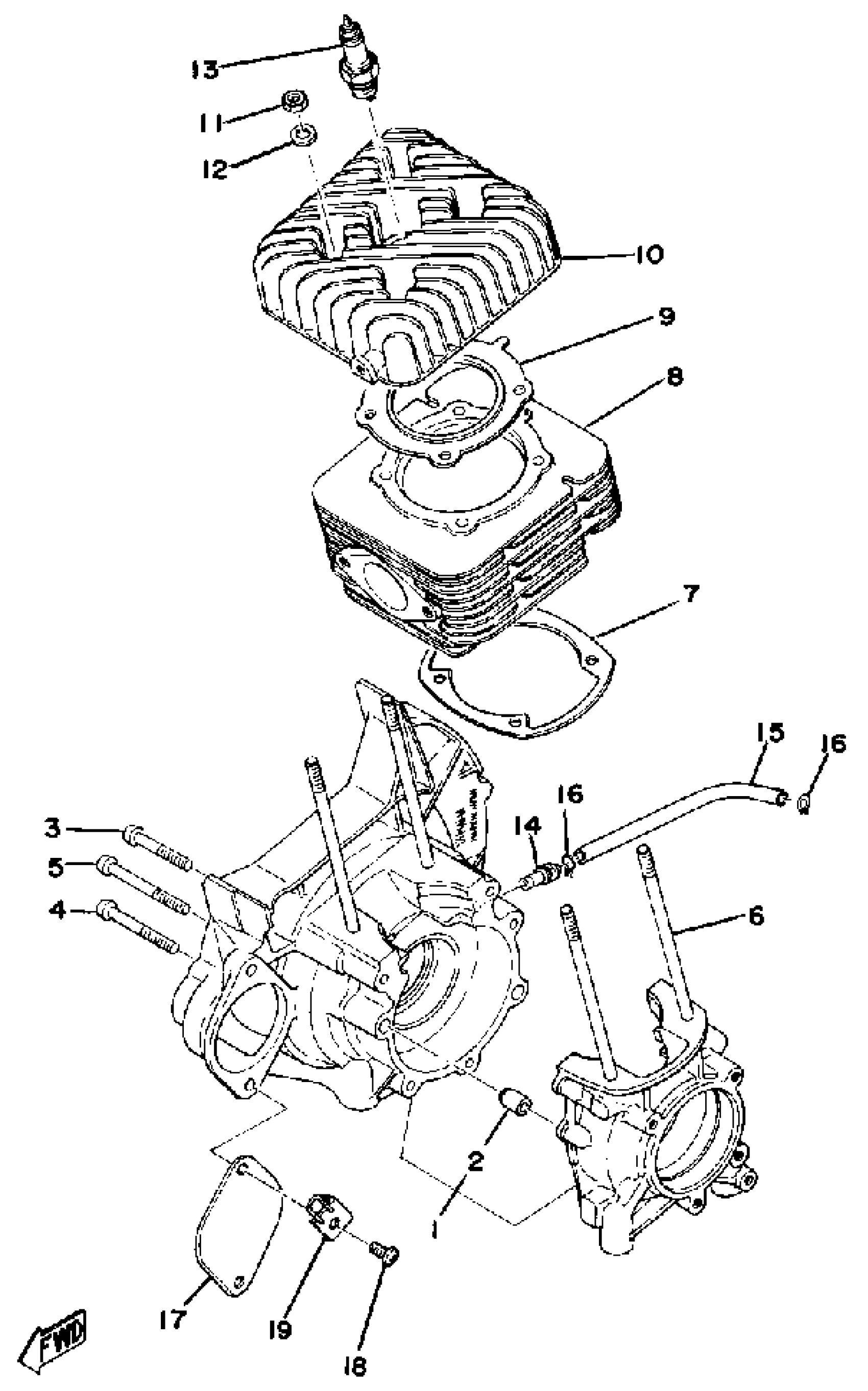

Yamaha ET250B 1978 CRANKCASE - CYLINDER Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

(8F3-15100-00-00)

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

SCREW PAN HEAD

98580-06545-00

$5.60

4

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

5

SCREW PAN HEAD

98580-06565-00

Unavailable

6

BOLT, STUD

90116-08254-00

Unavailable

7

GASKET, CYLINDER

881-11351-02-00

Unavailable

8

CYLINDER 1

8F3-11311-00-00

Unavailable

9

GASKET, CYL HEAD 1

8F3-11181-01-00

Unavailable

10

HEAD, CYLINDER 1

8G5-11111-00-00

Unavailable

11

. NUT

90170-08220-00

Unavailable

12

WASHER, PLATE (397)

90201-08100-00

$8.49

13

NGK BR8HV 4PK

(NGK-BR8HV-00-00)

Unavailable

14

JOINT, BREATHER

J38-11116-00-00

$3.80

15

HOSE

(90445-10138-00)

Unavailable

16

CLIP

90467-090A2-00

Unavailable

17

PLATE

(881-12633-00-00)

Unavailable

18

SCREW, PAN

98507-08010-00

Unavailable

19

STAY 1

(8F3-77125-00-00)

Unavailable
