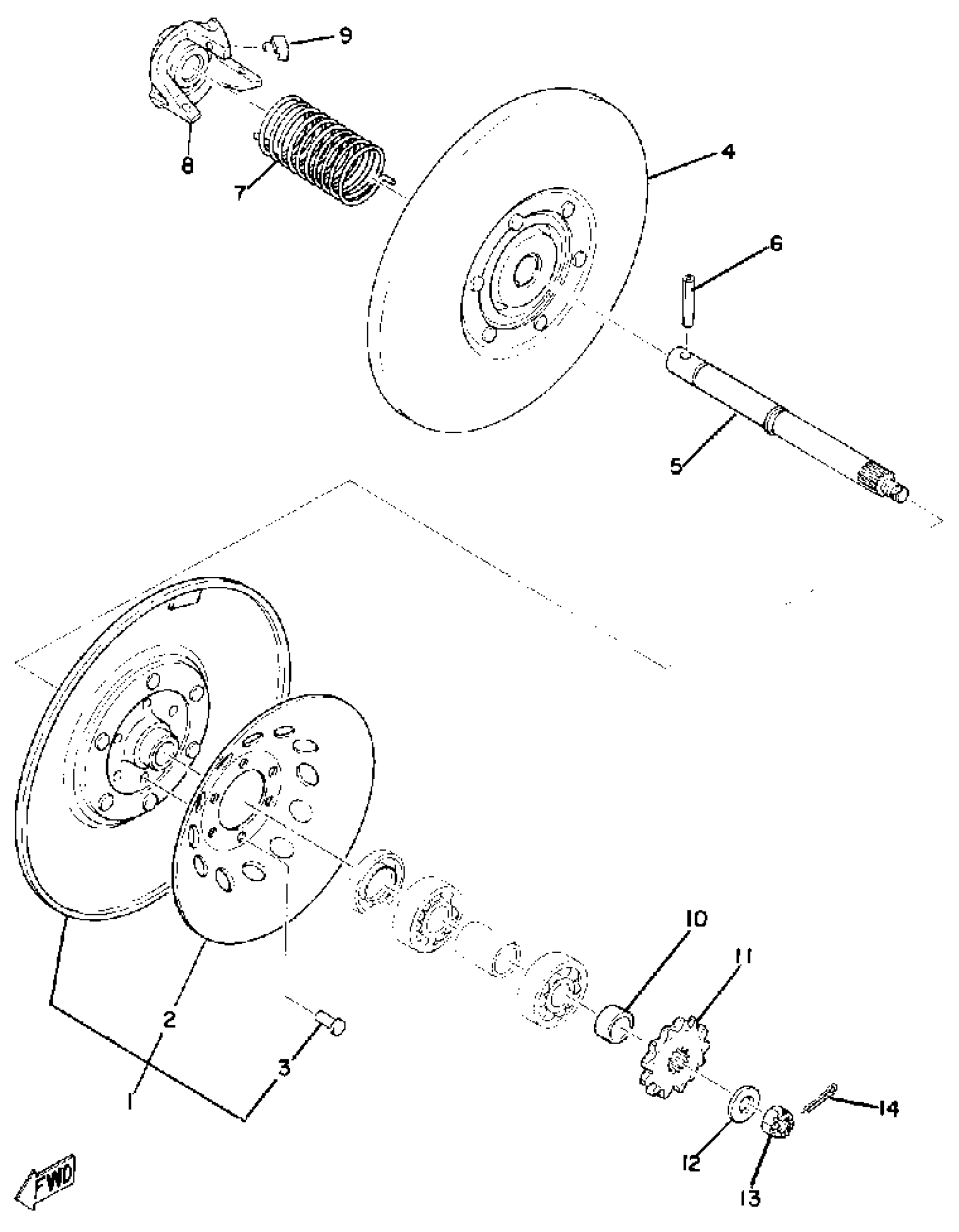

Yamaha ET250A 1977 SECONDARY SHEAVE Diagram

SEC FXD SHVSHEAVE COMP.

8F3-17660-00-00

Unavailable

. DISC, BRAKE

8F3-25711-00-00

Unavailable

RIVET

90263-05023-00

$1.59

SEC SLIDING SHEAVE

85T-17670-00-00

Unavailable

SHAFT, SECONDARY

8F3-17681-00-00

Unavailable

PIN, SPRING TYPE

90254-08001-00

Unavailable

SPRING TORSION 806176830000

90508-40080-00

$15.99

SEAT, SEC SPRINGSPRING

810-17684-01-00

Unavailable

SHOE, RAMP

801-17688-10-00

Unavailable

COLLAR

90387-19579-00

Unavailable

SPROCKET, CHAIN DRIVE(12T)

812-17682-20-00

$14.49

SPROCKET,CHAIN DRIVE(13T)

812-17682-30-00

Unavailable

SPROCKET, CHAIN DRIVE (14T)

812-17682-40-00

Unavailable

WASHER, PLATE (4N0)

90201-126A7-00

$9.49

NUT,CASTLE

90171-12058-00

Unavailable

PIN, COTTER

91490-30030-00

Unavailable
