1977 Yamaha ET250A Frame Diagram

← All diagrams

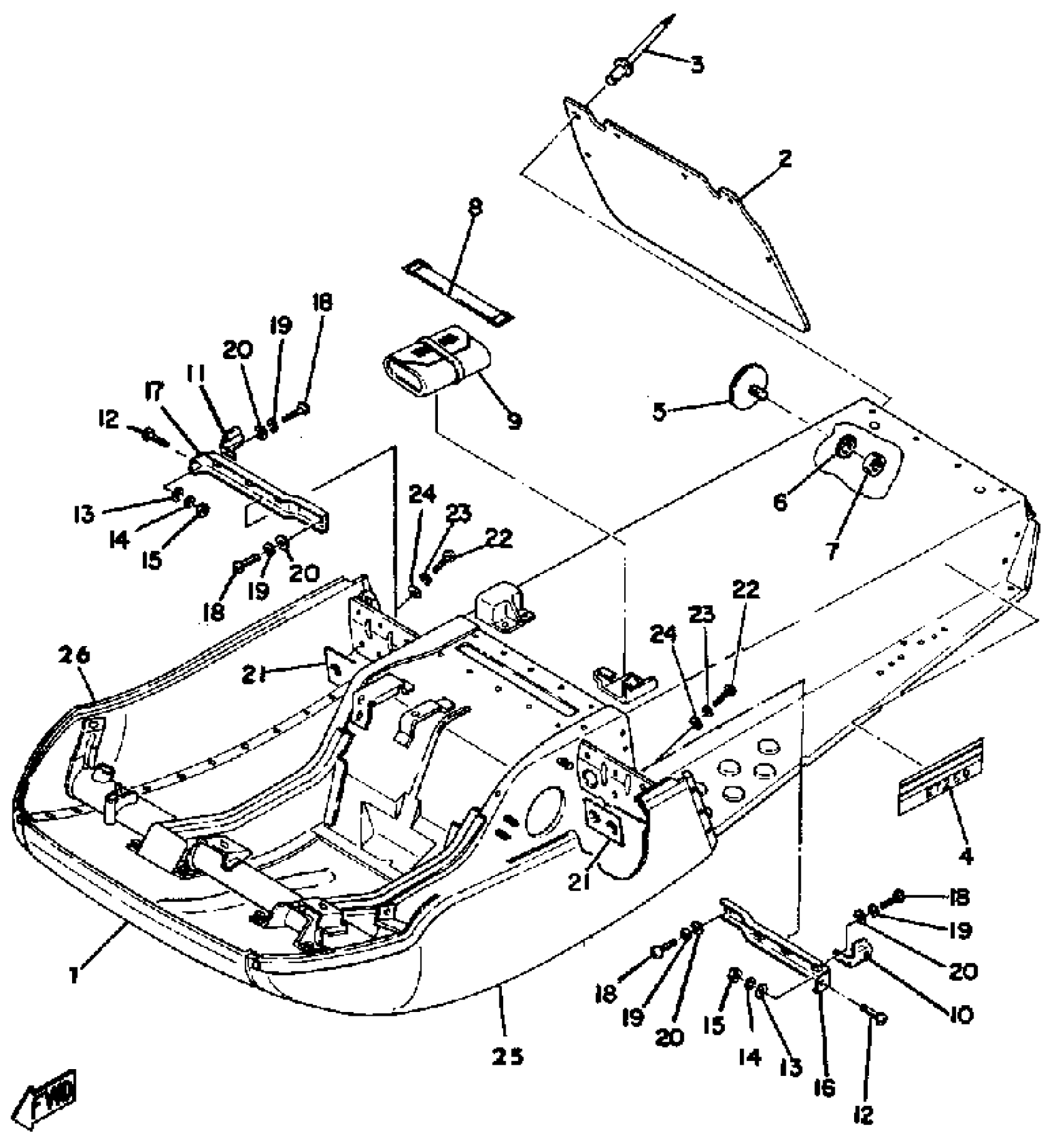

Find the part on the Frame diagram for your 1977 Yamaha ET250A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha ET250A Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(8F3-21910-00-00)

1
Out of stock

2

FLAP

8F2-77595-00-00

1
Out of stock

3

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

4

EMBLEM 4

(8F3-77354-00-00)

1
Out of stock

5

REFLECTOR, REAR 1

449-85131-02-00

1

$25.74

In stock

6

WASHER, EX.TOOTH

92990-05400-00

1
Out of stock

7

NUT, NYLON

95707-05300-00

1

$2.74

In stock

8

BAND, BATTERY

26L-82131-00-00

1

$7.05

In stock

9

TOOL KIT

85L-28100-01-00

1

$70.22

In stock

10

BRACKET 3

(8F3-23883-00-00)

1
Out of stock

11

BRACKET 4

(8F3-23884-00-00)

1
Out of stock

12

SCREW, PAN HEAD(6B0)

97885-06025-00

1

$4.62

In stock

13

WASHER, PLATE

90201-06M08-00

1
Out of stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

16

BRACKET 13

(8F3-23898-00-00)

1
Out of stock

17

BRACKET 14

(8F3-23899-00-00)

1
Out of stock

18

BOLT (661)

97013-06012-00

—

$4.71

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

21

SHIELD, HEAT

8F3-23892-00-00

1
Out of stock

22

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

25

HOOD 1

8F3-21982-00-00

1
Out of stock

26

HOOD 2

8F3-21983-00-00

1
Out of stock
