1977 Yamaha ET250A Bumper Diagram

← All diagrams

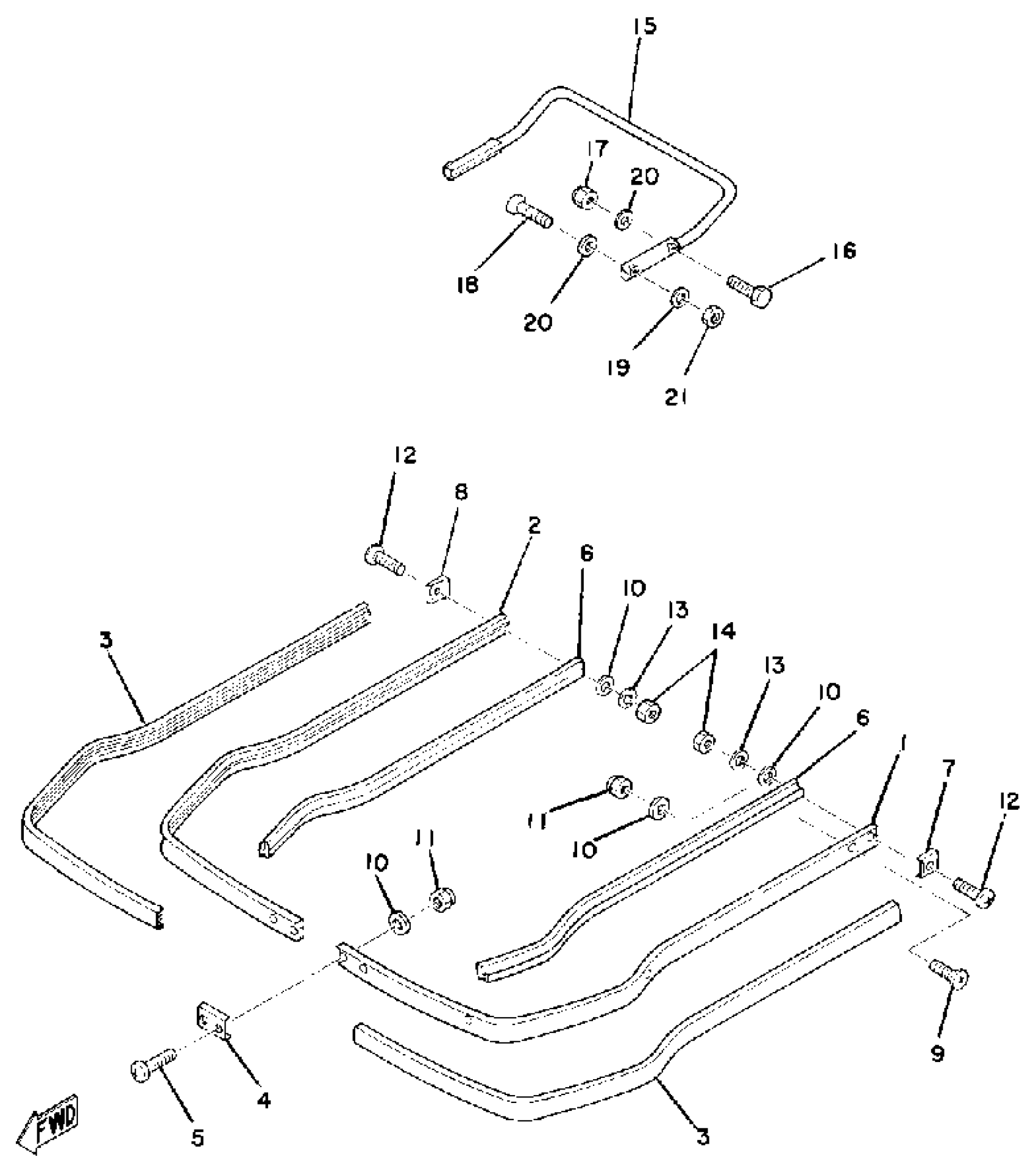

Find the part on the Bumper diagram for your 1977 Yamaha ET250A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha ET250A Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

(8F3-77511-00-00)

1
Out of stock

2

BUMPER, FRONT 2

(8F3-77512-00-00)

1
Out of stock

3

BUMPER, FRONT 4

(8F3-77514-00-00)

1
Out of stock

4

SPACER, BUMPER

8F3-77529-00-00

1
Out of stock

5

SCREW, BIND(J39)

98980-06030-00

1

$5.62

In stock

6

BUSH, RUBBER 1

8H4-77515-00-00

1
Out of stock

7

END, BUMPER

8F3-77523-00-00

1
Out of stock

8

END, BUMPER

8F3-77524-00-00

1
Out of stock

9

SCREW, FLAT HEAD

98780-06025-00

1

$5.69

In stock

10

WASHER, PLATE

90201-06M08-00

1
Out of stock

11

NUT, NYLON

95707-06300-00

1

$3.20

In stock

12

SCREW, PAN HEAD(6B0)

97885-06025-00

1

$4.62

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

15

BUMPER, REAR 1

8F3-77541-01-00

1
Out of stock

16

BOLT

97014-08040-00

—

$5.26

In stock

17

NUT, NYLON

95717-08300-00

—

$2.57

In stock

18

—

$3.80

In stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

20

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

21

NUT, CROWN

95303-08800-00

—

$7.52

In stock
