Description

Price

1

GASKET, EXST PIPE

8F3-14613-01-00

Unavailable

2

NUT, RING

81E-14612-00-00

Unavailable

3

BOLT (682)

97013-08025-00

$8.49

4

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

5

RING

888-14633-00-00

Unavailable

6

SPRING, HOOK (864)

90506-20074-00

$9.49

7

EXHAUST PIPE ASSEMBLY L

(8F3-14610-02-00)

Unavailable

8

SPRING, TENSION (8BU1)

90506-16494-00

$7.49

9

SPRING, TENSION

90506-16162-00

Unavailable

10

STAY, MUFFLER 1

(8F3-14771-02-00)

Unavailable

11

BOLT(62E)

97013-08012-00

Unavailable

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

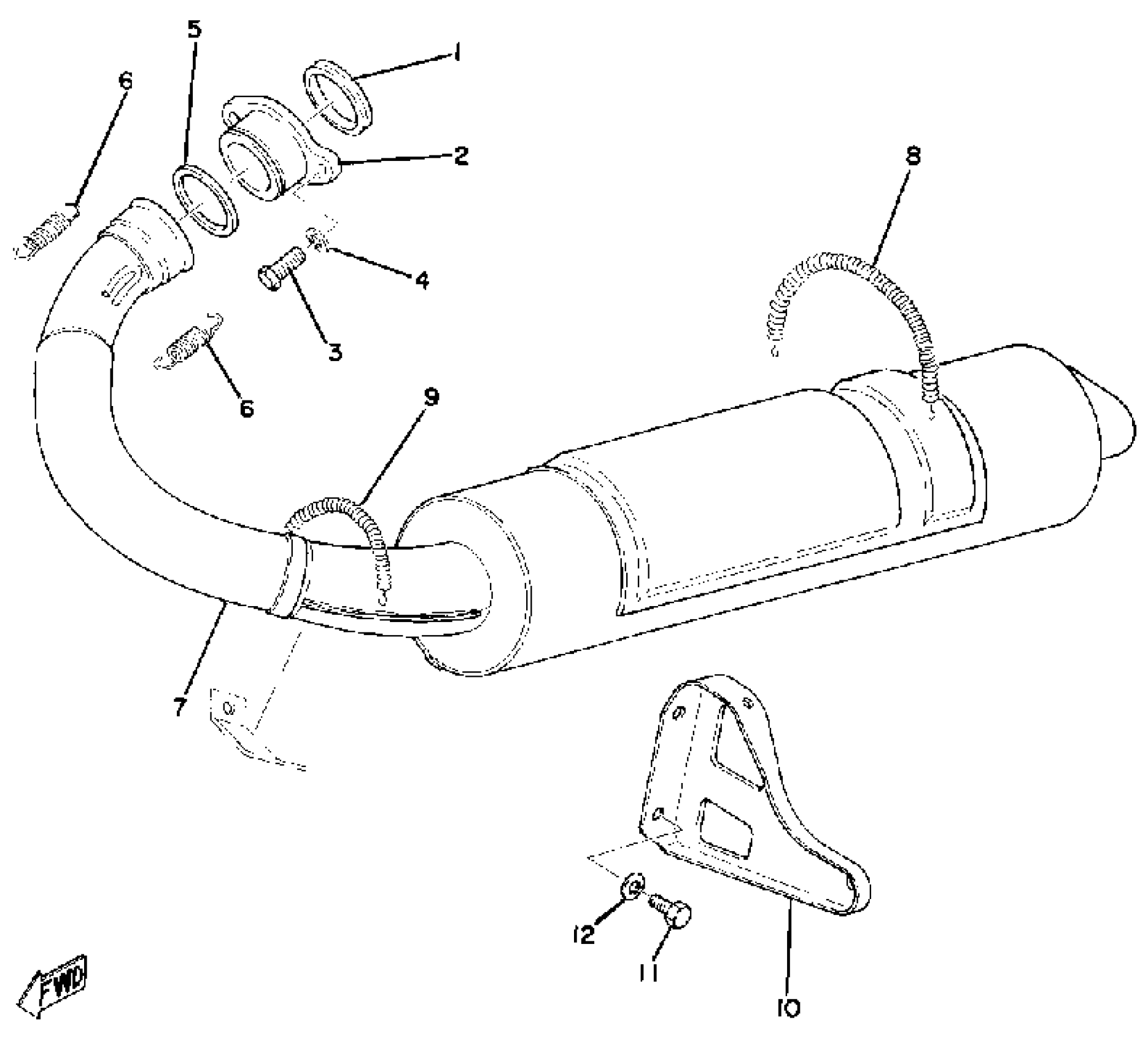

Yamaha ET250A 1977 EXHAUST Diagram

GASKET, EXST PIPE

NUT, RING

BOLT (682)

YBS67-8 WASHER, SPRING

RING

SPRING, HOOK (864)

EXHAUST PIPE ASSEMBLY L

SPRING, TENSION (8BU1)

SPRING, TENSION

STAY, MUFFLER 1

BOLT(62E)

YBS67-8 WASHER, SPRING
