1977 Yamaha ET250A Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 1977 Yamaha ET250A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

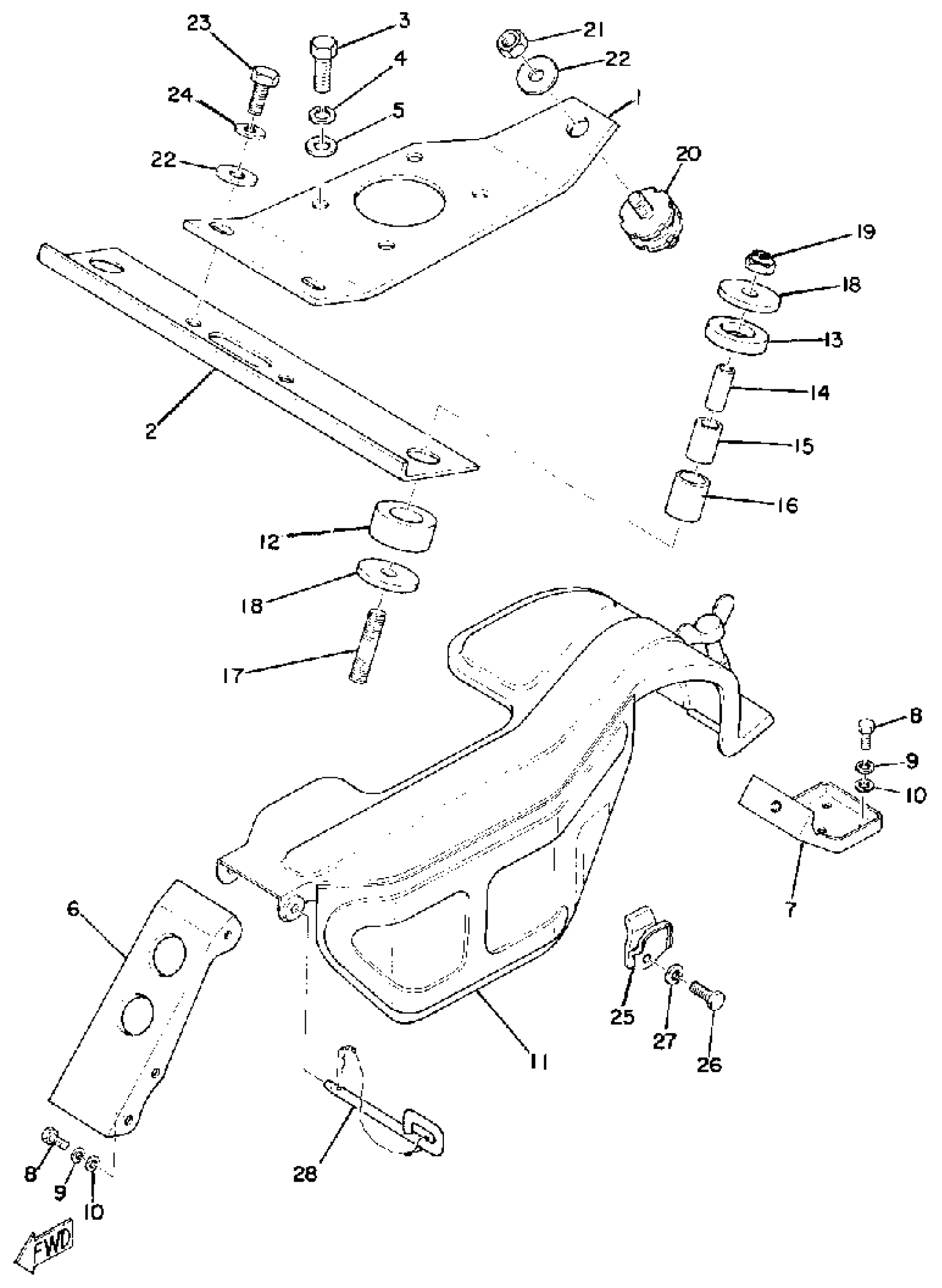

1977 Yamaha ET250A Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

8F3-21411-02-00

1
Out of stock

2

BRACKET, ENGINE 2

(8F3-21419-00-00)

1
Out of stock

3

BOLT, DOME HEAD

90106-10034-00

1
Out of stock

4

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

5

WASHER, PLATE

92990-10600-00

1

$2.61

In stock

6

BRACKET 1

(8F3-77315-00-00)

1
Out of stock

7

BRACKET 2

(8F3-77316-01-00)

1
Out of stock

8

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

11

GUARD, DRIVE

8F3-77311-01-00

1
Out of stock

12

DAMPER, RUBBER 1

8F3-21485-00-00

1
Out of stock

13

DAMPER

8F3-21488-00-00

1
Out of stock

14

COLLAR

90387-10610-00

1
Out of stock

15

BUSH, SPEC''L RUBBER

90385-15030-00

1
Out of stock

16

COLLAR

90387-21611-00

1
Out of stock

17

BOLT, STUD

95611-10355-00

1
Out of stock

18

WASHER (888)

90201-10151-00

—

$3.94

In stock

19

NUT, SELF-LOCKING

90185-10017-00

1
Out of stock

20

DAMPER, ENGINE MOUNT 2

8F3-21486-00-00

—

$68.00

In stock

21

NUT(3BM)

95314-10600-00

—

$1.74

In stock

22

WASHER, PLATE (856)

90201-10321-00

—

$5.43

In stock

23

BOLT(6TD)

97017-10025-00

—

$6.82

In stock

24

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

25

PROTECTOR, DRIVE

8F3-77323-00-00

1
Out of stock

26

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

28

SHAFT

8F3-77327-00-00

1
Out of stock
