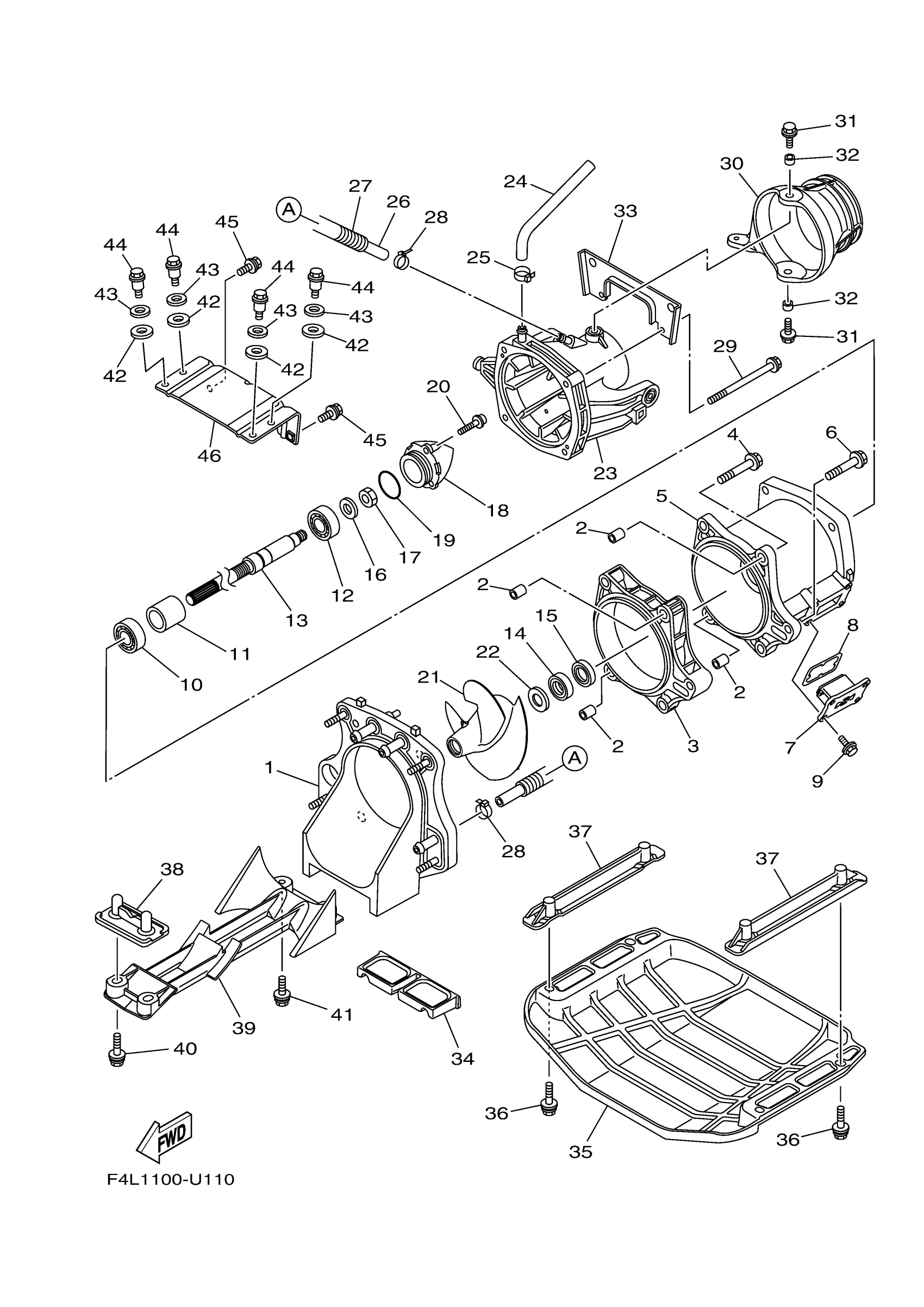

Yamaha ER1050W (EXR) F4L3 2021 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6GA-G5831-00-00

$128.77

2

PIN, DOWEL(4JT)

99590-14016-00

$3.41

3

HOUSING, IMPELLER 2

6GY-R1317-00-00

$90.89

4

BOLT, WITH WASHER

90119-10817-00

$4.09

5

HOUSING, IMPELLER

6GA-R1312-02-00

$169.19

6

BOLT, WITH WASHER

97595-10565-00

$3.33

7

FILTER

6GA-G6882-00-00

$7.12

8

. O-RING

6GA-G2414-00-00

$0.93

9

BOLT,WITH WASHER

90119-06890-00

$1.07

10

BEARING

93306-255X9-00

$13.63

11

SPACER 1

65V-G5538-00-00

$5.22

12

BEARING

93306-304XB-00

$17.22

13

SHAFT, DRIVE

6GY-G5511-00-00

$272.84

14

OIL SEAL

93101-28M66-00

Unavailable

15

OIL SEAL

93101-28002-00

$13.40

16

958-58204-00 WASHER,PLAIN

92990-16200-00

Unavailable

17

NUT

95317-16700-00

$4.55

18

CAP

6GY-R1326-00-00

$18.92

19

. O-RING

93210-44003-00

$2.61

20

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

21

IMPELLER

6GY-R1321-02-00

$234.89

22

SPACER

6EY-R1348-00-00

$6.38

23

NOZZLE

6GA-R1318-00-00

$65.14

24

HOSE 1

6GY-U72M2-00-00

$6.36

25

BAND, HOSE 18

90601-118UF-00

$2.07

26

HOSE (L380)

90445-14M25-00

Unavailable

27

HOSE (L230)

90446-20M24-00

Unavailable

28

CLAMP

90465-10098-00

$1.68

29

BOLT, WITH WASHER

90119-08844-00

$1.29

30

NOZZLE, DEFLECTOR

6BU-R1313-00-00

$43.06

31

BOLT, WITH WASHER

90119-08841-00

$1.01

32

COLLAR(6R7)

90387-08M06-00

Unavailable

33

BRACKET

6GA-R1959-00-00

$8.32

34

SPACER

F3Y-U72C0-00-00

$6.29

35

PLATE 2

F3Y-U273B-10-00

$93.92

36

BOLT, WITH WASHER

90119-08829-00

$3.88

37

BRACKET 2

F0V-U8572-10-00

$10.59

38

BRACKET, 3

F2S-U8577-00-00

$15.07

39

SCREEN, INTAKE

F4L-R1333-00-00

$38.52

40

BOLT

F3Y-U1426-01-00

Unavailable

41

BOLT

F3Y-U1426-01-00

Unavailable

42

GASKET

90430-12002-00

$1.81

43

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

44

BOLT

90109-08043-00

$4.09

45

BOLT, WITH WASHER

90119-08800-00

$4.09

46

BRACKET

F4L-U7557-00-00

$27.26
