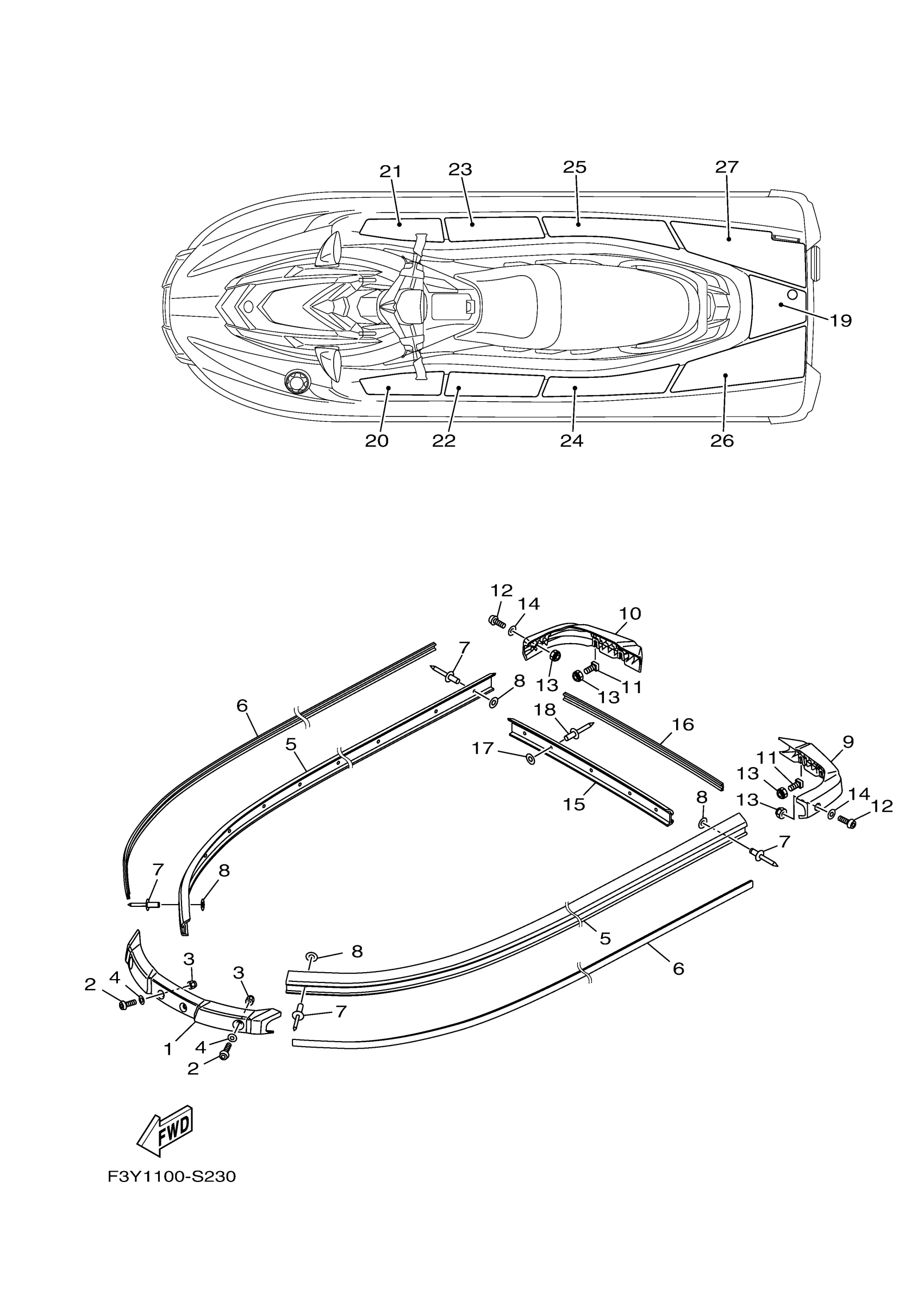

Yamaha ER1050W (EXR) F4L3 2021 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F3Y-U2511-00-00

$63.56

2

BOLT,HEX. SOCKET BUTTON

90111-06803-00

$2.30

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

WASHER

F3Y-U1174-00-00

$1.43

5

GUNWALE, SIDE

F3Y-U2512-03-00

$43.27

6

INNER,GUNWALE

F3Y-U2519-31-00

$17.22

7

RIVET, BLIND

90267-489U8-00

$1.37

8

WASHER

9299R-05200-00

$4.60

9

GUNWALE, STERN 1

F3Y-U251D-00-00

$147.34

10

GUNWALE, STERN 2

F3Y-U251E-00-00

$147.34

11

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

12

BOLT,HEX. SOCKET BUTTON

90111-06803-00

$2.30

13

NUT, LOCK

F2N-U142L-00-00

$1.00

14

WASHER

F3Y-U1174-00-00

$1.43

15

COVER, GUNWALE 1

F3Y-U252C-00-00

$16.27

16

COVER, GUNWALE 2

F3Y-U252D-40-00

$12.67

17

WASHER

9299R-05200-00

$4.60

18

RIVET, BLIND

90267-489U8-00

$1.37

19

MAT, UPPER

F4L-U3581-00-00

$32.82

20

MAT, STEP 1

F4L-U351H-00-00

$31.33

21

MAT, STEP 2

F4L-U351J-00-00

$29.09

22

MAT, STEP 3

F4L-U351K-00-00

$32.82

23

MAT, STEP 4

F4L-U351M-00-00

$32.82

24

MAT, STEP 5

F4L-U351N-00-00

$47.75

25

MAT, STEP 6

F4L-U351P-00-00

$47.75

26

MAT, STEP 7

F4L-U351R-00-00

$50.73

27

MAT, STEP 8

F4L-U351S-00-00

$53.72
