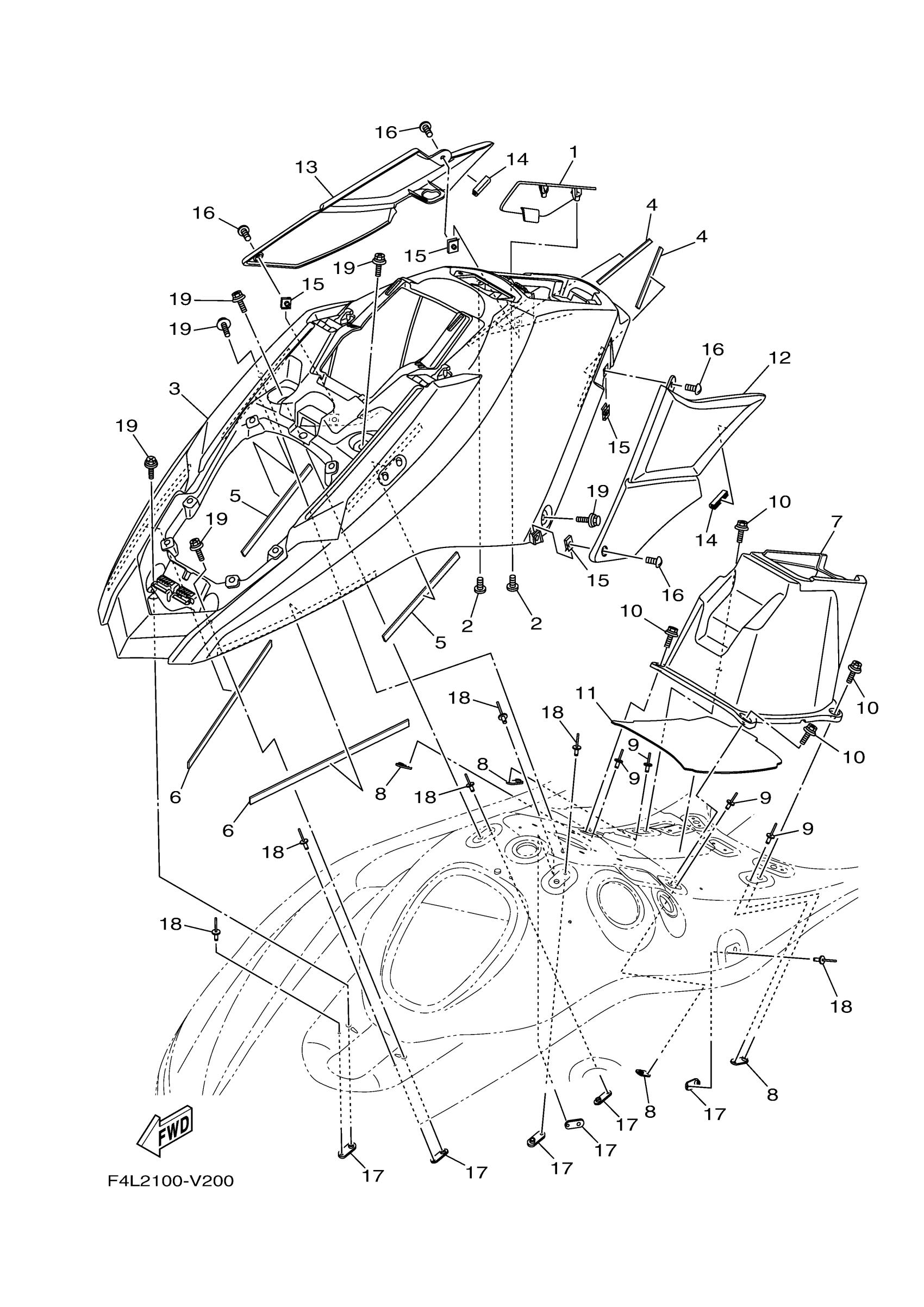

Yamaha ER1050W (EXR) F4L3 2021 ENGINE HATCH 1 Diagram

#

Description
Price

1

SEAL

F3Y-U2723-00-00

$5.29

2

SCREW

F2S-U13C1-00-00

$2.52

3

COVER, ENGINE HATCH

F3Y-U516N-00-00

$129.40

4

PACKING 3

F4L-U266B-00-00

$18.37

5

PACKING 4

F4L-U266C-00-00

$23.51

6

PACKING 5

F4L-U266D-00-00

$15.43

7

BOX GLOVE

F3Y-U516P-00-00

$19.10

8

PLATE, FIX

F2X-U5175-00-00

$1.87

9

RIVET (EU0)

90267-48938-00

$4.85

10

BOLT, WITH WASHER

90119-06878-00

$3.59

11

MAT 1

F3Y-U759B-00-00

$13.96

12

PAD, KNEE

F3Y-U353B-C0-00

$22.78

13

PAD, KNEE

F3Y-U353B-D0-00

$22.78

14

TRIM, 1

F3Y-U828H-30-00

$3.53

15

NUT, SPRING(GJ3)

90183-06902-00

$8.53

16

BOLT, HEXAGON SOCKET BUTTON

90111-06873-00

$5.23

17

PLATE, FIX

F2X-U5175-00-00

$1.87

18

RIVET (EU0)

90267-48938-00

$4.85

19

BOLT, WITH WASHER

90119-06820-00

$3.65
