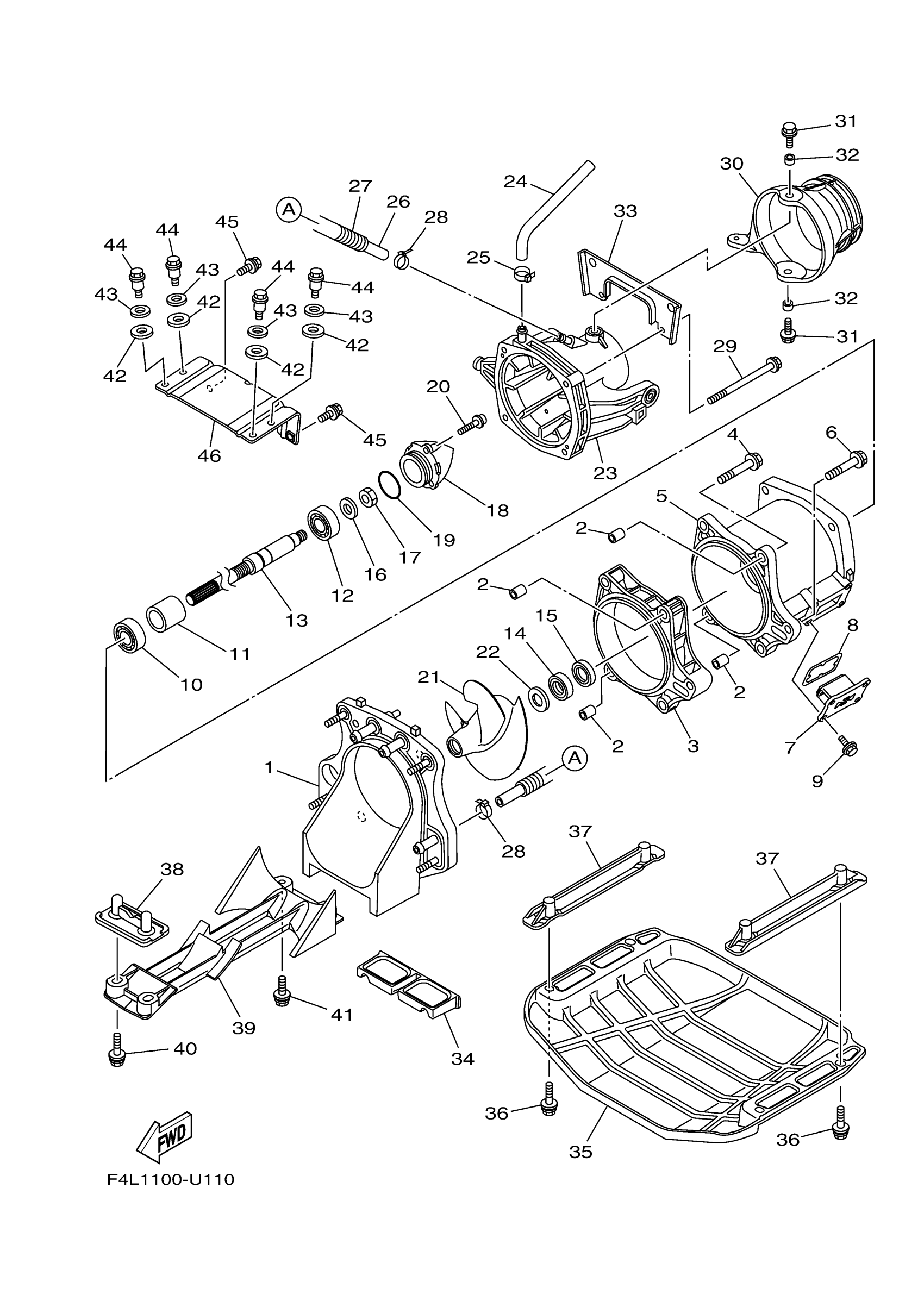

Yamaha ER1050V (EXR) F4L2 2020 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6GA-G5831-00-00

Unavailable

2

PIN, DOWEL(4JT)

99590-14016-00

$4.24

3

HOUSING, IMPELLER 2

6GY-R1317-00-00

Unavailable

4

BOLT, WITH WASHER

90119-10817-00

Unavailable

5

HOUSING, IMPELLER

6GA-R1312-02-00

Unavailable

6

BOLT, WITH WASHER

97595-10565-00

Unavailable

7

FILTER

6GA-G6882-00-00

Unavailable

8

. O-RING

6GA-G2414-00-00

Unavailable

9

BOLT,WITH WASHER

90119-06890-00

Unavailable

10

BEARING (6K8)

93306-205U1-00

$25.99

11

SPACER 1

65V-G5538-00-00

Unavailable

12

BEARING

93306-304XB-00

Unavailable

13

SHAFT, DRIVE

6GY-G5511-00-00

Unavailable

14

OIL SEAL

93101-28M66-00

$28.99

15

OIL SEAL

93101-28002-00

Unavailable

16

958-58204-00 WASHER,PLAIN

92990-16200-00

Unavailable

17

NUT

95317-16700-00

Unavailable

18

CAP

6GY-R1326-00-00

Unavailable

19

. O-RING

93210-44003-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

Unavailable

21

IMPELLER

6GY-R1321-02-00

Unavailable

22

SPACER

6EY-R1348-00-00

Unavailable

23

NOZZLE

6GA-R1318-00-00

Unavailable

24

HOSE 1

6GY-U72M2-00-00

Unavailable

25

BAND, HOSE 18

90601-118UF-00

Unavailable

26

HOSE (L380)

90445-14M25-00

Unavailable

27

HOSE (L230)

90446-20M24-00

Unavailable

28

CLAMP

90465-10098-00

Unavailable

29

BOLT, WITH WASHER

90119-08844-00

Unavailable

30

NOZZLE, DEFLECTOR

6BU-R1313-00-00

Unavailable

31

BOLT, WITH WASHER

90119-08841-00

Unavailable

32

COLLAR(6R7)

90387-08M06-00

Unavailable

33

BRACKET

6GA-R1959-00-00

Unavailable

34

SPACER

F3Y-U72C0-00-00

Unavailable

35

PLATE 2

F3Y-U273B-01-00

Unavailable

36

BOLT, WITH WASHER

90119-08829-00

Unavailable

37

BRACKET 2

F0V-U8572-10-00

Unavailable

38

BRACKET, 3

F2S-U8577-00-00

Unavailable

39

SCREEN, INTAKE

F4L-R1333-00-00

Unavailable

40

BOLT

F3Y-U1426-01-00

Unavailable

41

BOLT

F3Y-U1426-01-00

Unavailable

42

GASKET

90430-12002-00

Unavailable

43

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

44

BOLT

90109-08043-00

Unavailable

45

BOLT, WITH WASHER

90119-08800-00

Unavailable

46

BRACKET

F4L-U7557-00-00

Unavailable
