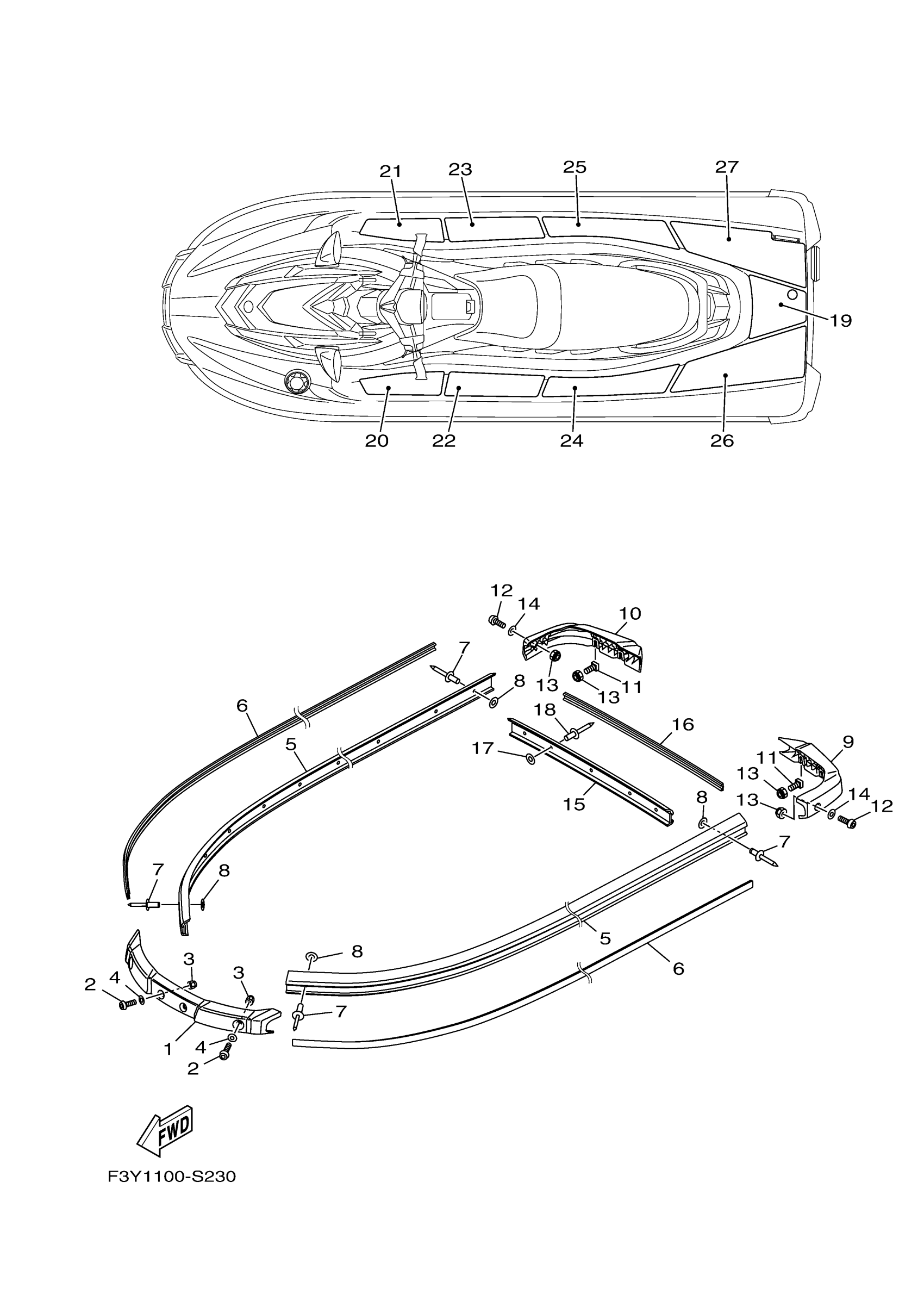

Yamaha ER1050U (EXR) F4L1 2019 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F3Y-U2511-00-00

$60.75

2

BOLT,HEX. SOCKET BUTTON

90111-06803-00

$2.16

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

WASHER

F3Y-U1174-00-00

$1.37

5

GUNWALE, SIDE

F3Y-U2512-03-00

$28.30

6

INNER,GUNWALE

F3Y-U2519-82-00

$26.54

7

RIVET, BLIND

90267-489U8-00

$0.99

8

WASHER

9299R-05200-00

$3.16

9

GUNWALE, STERN 1

F3Y-U251D-00-00

$145.97

10

GUNWALE, STERN 2

F3Y-U251E-00-00

$18.52

11

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

12

BOLT,HEX. SOCKET BUTTON

90111-06803-00

$2.16

13

NUT, LOCK

F2N-U142L-00-00

$1.00

14

WASHER

F3Y-U1174-00-00

$1.37

15

COVER, GUNWALE 1

F3Y-U252C-00-00

$15.55

16

COVER, GUNWALE 2

F3Y-U252D-81-00

$18.92

17

WASHER

9299R-05200-00

$3.16

18

RIVET, BLIND

90267-489U8-00

$0.99

19

MAT, UPPER

F3Y-U3581-10-00

$15.89

20

MAT, STEP 1

F3Y-U351H-10-00

$15.89

21

MAT, STEP 2

F3Y-U351J-10-00

$15.89

22

MAT, STEP 3

F3Y-U351K-10-00

$15.89

23

MAT, STEP 4

F3Y-U351M-10-00

$15.89

24

MAT, STEP 5

F3Y-U351N-10-00

$15.07

25

MAT, STEP 6

F3Y-U351P-10-00

$18.17

26

MAT, STEP 7

F3Y-U351R-10-00

$31.80

27

MAT, STEP 8

F3Y-U351S-10-00

$33.32
