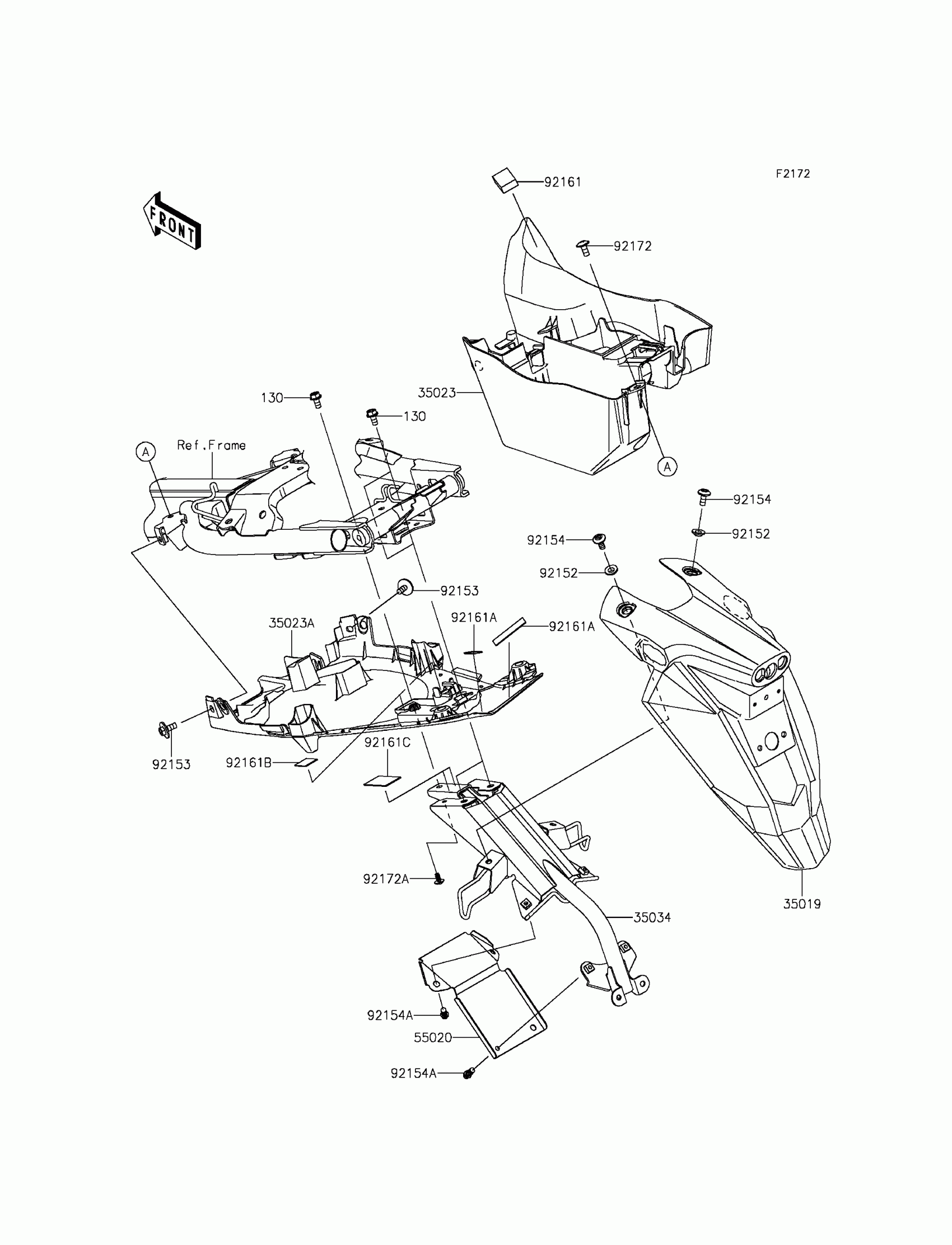

Kawasaki ER-6n Rear Fender(s) Diagram

Description

Price

130

BOLT-FLANGED,6X14

130BA0614

$1.20

35019

FLAP,RR

35019-0556

$76.24

35023

FENDER-REAR,FR

35023-0309

$41.85

35023A

FENDER-REAR,RR

35023-0354

$59.98

35034

REINFORCE

35034-0568

$98.75

55020

GUARD

55020-0846

$15.76

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92153

BOLT,6X16

92153-0684

$4.49

92154

BOLT,SOCKET,6X14

92154-0907

$1.97

92154A

BOLT,FLANGED,6X12

92154-0979

$0.85

92161

DAMPER

92161-0718

$1.28

92161A

DAMPER,10X45,T1.0

92161-1408

$0.85

92161B

DAMPER,20X20,T1.0

92161-1431

$0.85

92161C

DAMPER,25X40,T1.0

92161-1432

$1.19

92172

SCREW,6X14

92172-0004

$2.80

92172A

SCREW,TAPPING,5X10

92172-0262

$1.34
