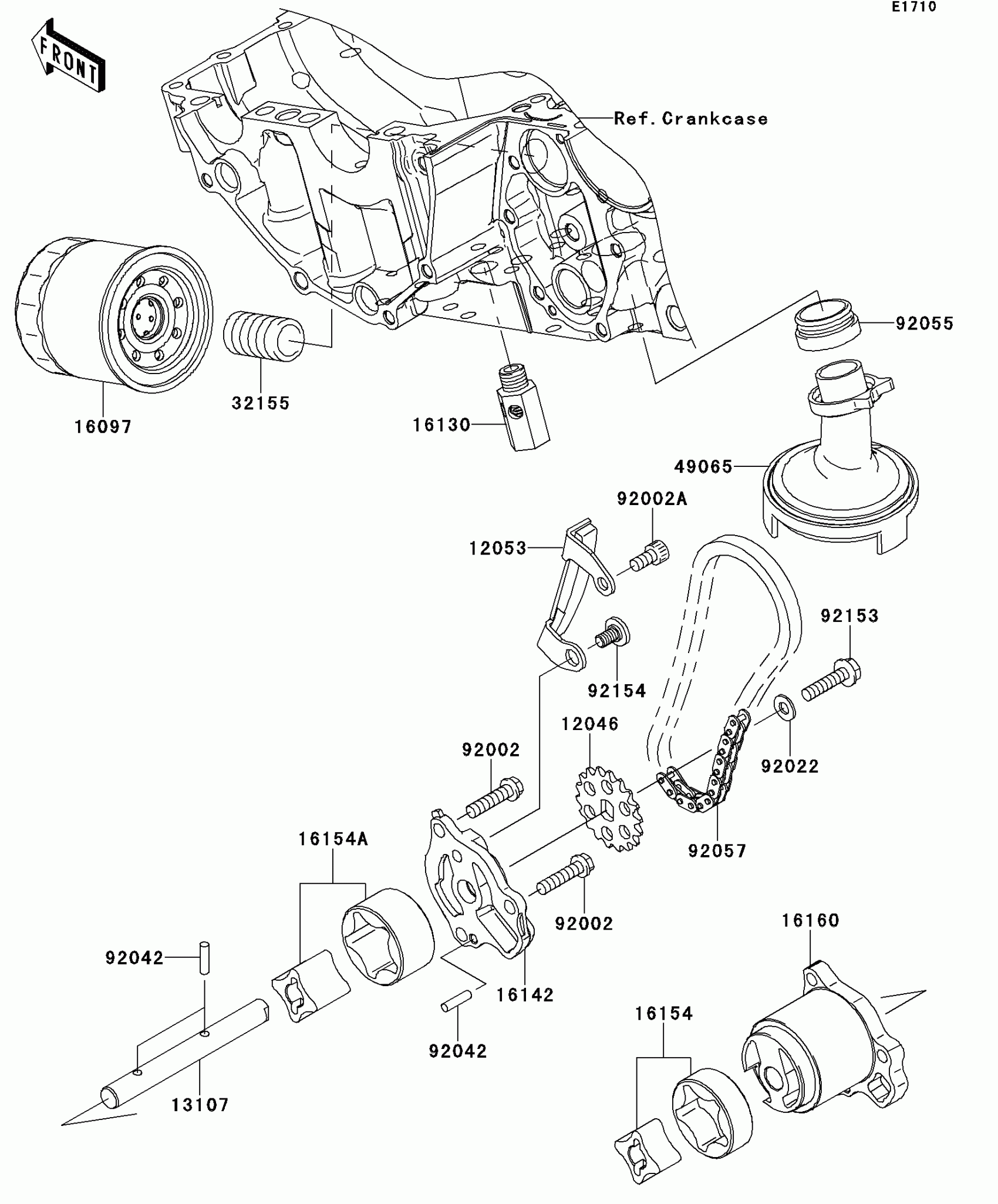

Kawasaki ER-6n Oil Pump/Oil Filter Diagram

Description

Price

12046

SPROCKET,18T,BF04M

12046-0040

$11.91

12053

GUIDE-CHAIN

12053-0071

$30.76

13107

SHAFT,OIL PUMP

13107-0156

$31.80

16097

FILTER-ASSY-OIL

16097-0004

Unavailable

16130

VALVE-ASSY-RELIEF

16130-1058

$41.98

16142

COVER-PUMP

16142-0024

$31.80

16154

ROTOR-PUMP,L=14

16154-0037

$61.14

16154A

ROTOR-PUMP,40.56X22

16154-1115

$70.18

16160

BODY

16160-0110

$38.41

32155

PIPE,OIL FILTER

32155-0029

$14.94

49065

FILTER-OIL

49065-0011

$31.76

92002

BOLT,6X25

92002-1344

Unavailable

92002A

BOLT,SOCKET,6X12

92002-1796

$4.69

92022

WASHER,6X12.8X1.2

92022-1827

$4.69

92042

PIN,DOWEL,4X15.8

92042-014

$0.43

92055

RING-O,OIL FILTER

92055-1354

$9.51

92057

CHAIN,DID 215FD-DHA,56LE

92057-0098

$39.87

92153

BOLT,FLANGED,6X25

92153-0952

Unavailable

92154

BOLT,SOCKET,6X11

92154-0188

$2.95
