Description

Price

132

BOLT-FLANGED-SMALL,6X8

132BA0608

$1.77

132A

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77

461

WASHER-SPRING,6MM

461DA0600

$0.66

11056

BRACKET,SEAT LOCK

11056-0938

$9.46

21007

ROTOR,LOCK,TANK CAP

21007-5068

$90.02

27005

SWITCH-ASSY-IGNITION

27005-0552

$183.65

27008

KEY-LOCK,BLANK

27008-0069

$19.64

27010

SWITCH,SIDE STAND

27010-0722

$118.06

27010A

SWITCH,REAR BRAKE

27010-0723

$30.18

27016

LOCK-ASSY,SEAT STRIKER

27016-0008

$14.14

27016A

LOCK-ASSY,SEAT

27016-5372

$92.15

27045

SWITCH-ASSY

27045-5452

$418.08

28012

REFLECTOR-REFLEX

28012-1077

$21.76

92002

BOLT,FLANGED,6X25

92002-1582

$4.17

92145

SPRING,REAR BRAKE SWITCH

92145-0724

Unavailable

92152

COLLAR,6.15X10.15X6

92152-1535

$2.84

92154

BOLT,FLANGED,6X12

92154-1050

$1.68

92172

SCREW,5X16

92172-0322

$1.57

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.20

92210

NUT,FLANGED,5MM

92210-0007

$1.90

92210A

NUT,WELL,5MM

92210-0498

$5.58

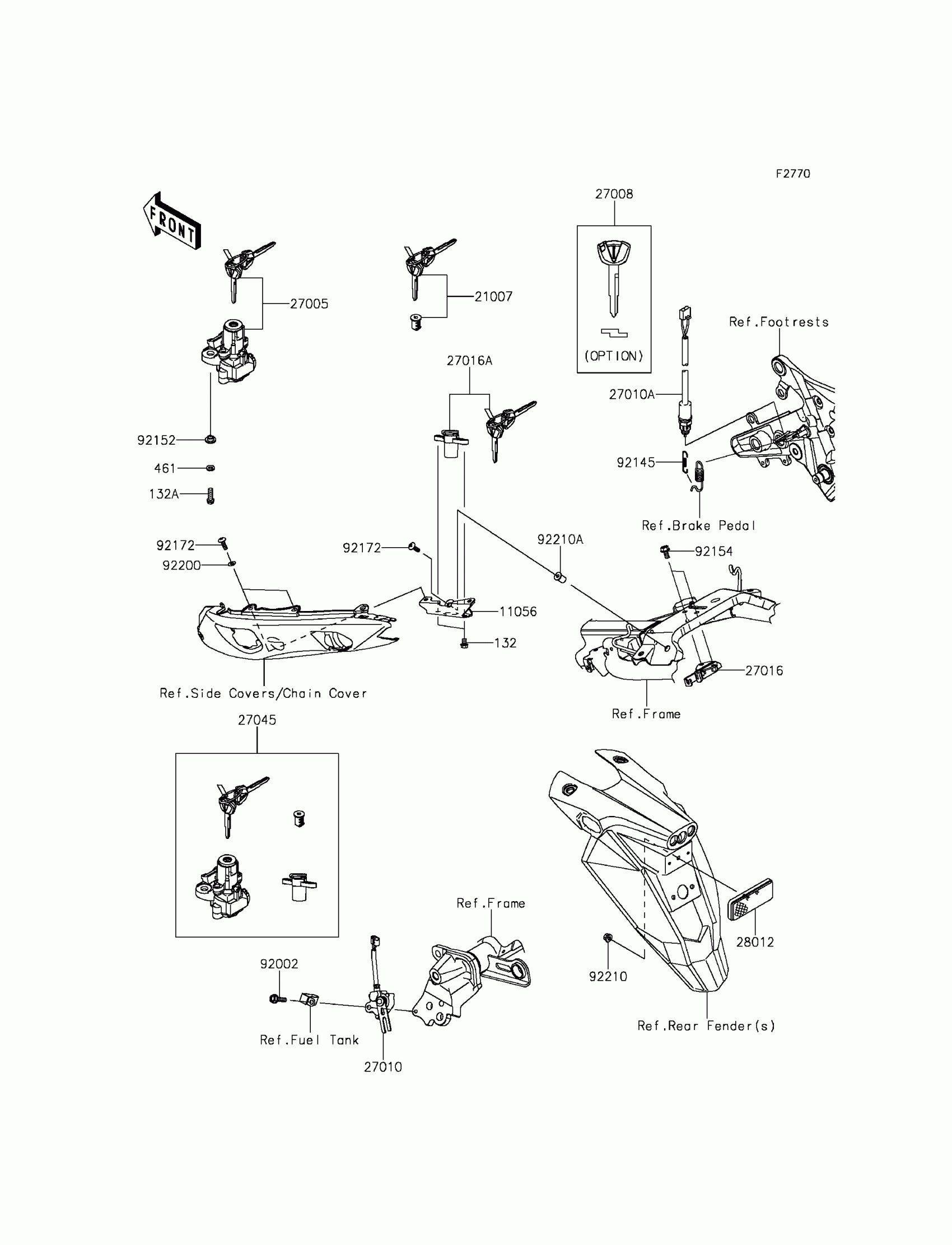

Kawasaki ER-6n Ignition Switch Diagram
