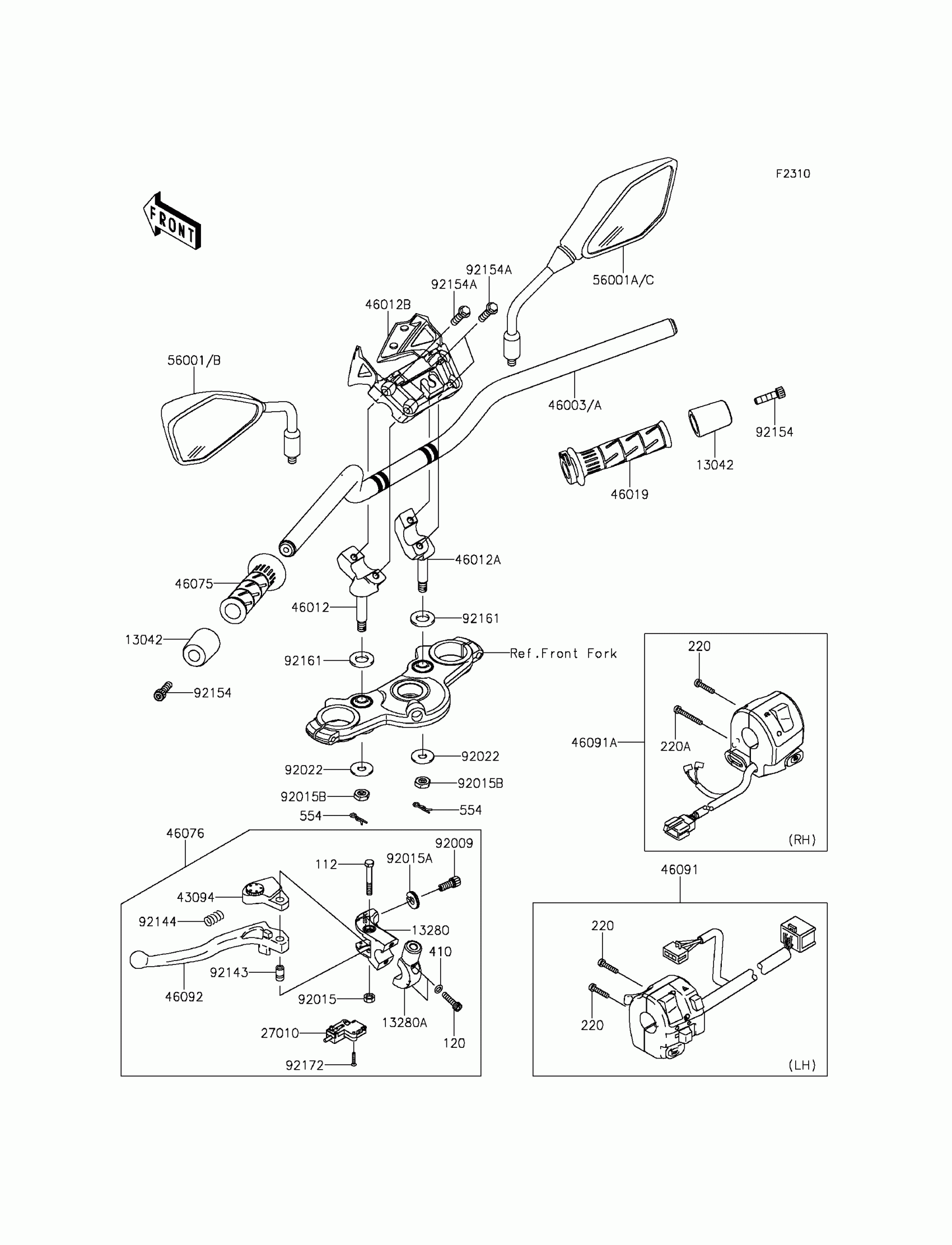

Kawasaki ER-6n Handlebar Diagram
#
Description
Price
112
BOLT-UPSET,6X45
112BB0645
$3.74
120
BOLT-SOCKET,6X25
120CB0625
$2.62
220
SCREW-PAN-CROS,5X25
220AB0525
$3.52
220A
SCREW-PAN-CROS,5X40
220AB0540
$2.06
410
WASHER-PLAIN-SMALL,6MM
410AB0600
$0.77
554
PIN-SNAP
554DB0800
$1.36
13042
WEIGHT,HANDLE
13042-5002
$51.69
13280
HOLDER,CLUTCH LEVER
13280-0306
$53.68
13280A
HOLDER,CLUTCH LEVER
13280-0307
$36.45
27010
SWITCH,CLUTCH,BLACK
27010-1094
$28.59
43094
ADJUSTER,CLUTCH LEVER
43094-0556
$39.77
46003
HANDLE,BLACK
46003-0588-10
$121.11
46012
HOLDER-HANDLE,LWR,LH,F.S.BLACK
46012-0303-18R
Unavailable
46012A
HOLDER-HANDLE,LWR,RH,F.S.BLACK
46012-0304-18R
$38.30
46012B
HOLDER-HANDLE,UPP,F.S.BLACK
46012-0318-18R
Unavailable
46019
GRIP-ASSY,THROTTLE
46019-0060
$32.34
46075
GRIP,HANDLE,LH
46075-0564
$20.01
46076
LEVER-ASSY-GRIP,CLUTCH
46076-0081
$110.23
46091
HOUSING-ASSY-CONTROL,LH
46091-0214
$153.00
46091A
HOUSING-ASSY-CONTROL,RH
46091-0246
$183.00
46092
LEVER-GRIP,CLUTCH
46092-0031
$25.63
56001B
MIRROR-ASSY,LH
56001-0272
$87.38
56001C
MIRROR-ASSY,RH
56001-0273
$81.92
92009
SCREW,CABLE ADJUST,8MM,BLACK
92009-1134
$15.16
92015
NUT,LOCK,6MM,BLACK
92015-1191
Unavailable
92015A
NUT,CABLE ADJUST LOCK,8MM,BLK
92015-1197
$9.91
92015B
NUT,LOCK,10MM
92015-1962
$6.11
92022
WASHER,10.2X28X2
92022-1088
$4.69
92143
COLLAR
92143-1379
$9.51
92144
SPRING
92144-1467
$6.51
92154
BOLT,SOCKET,8X30
92154-0440
$3.74
92154A
BOLT,FLANGED,8X30
92154-1246
$2.00
92161
DAMPER
92161-0037
$1.86
92172
SCREW,3X16
92172-0183
$2.15
