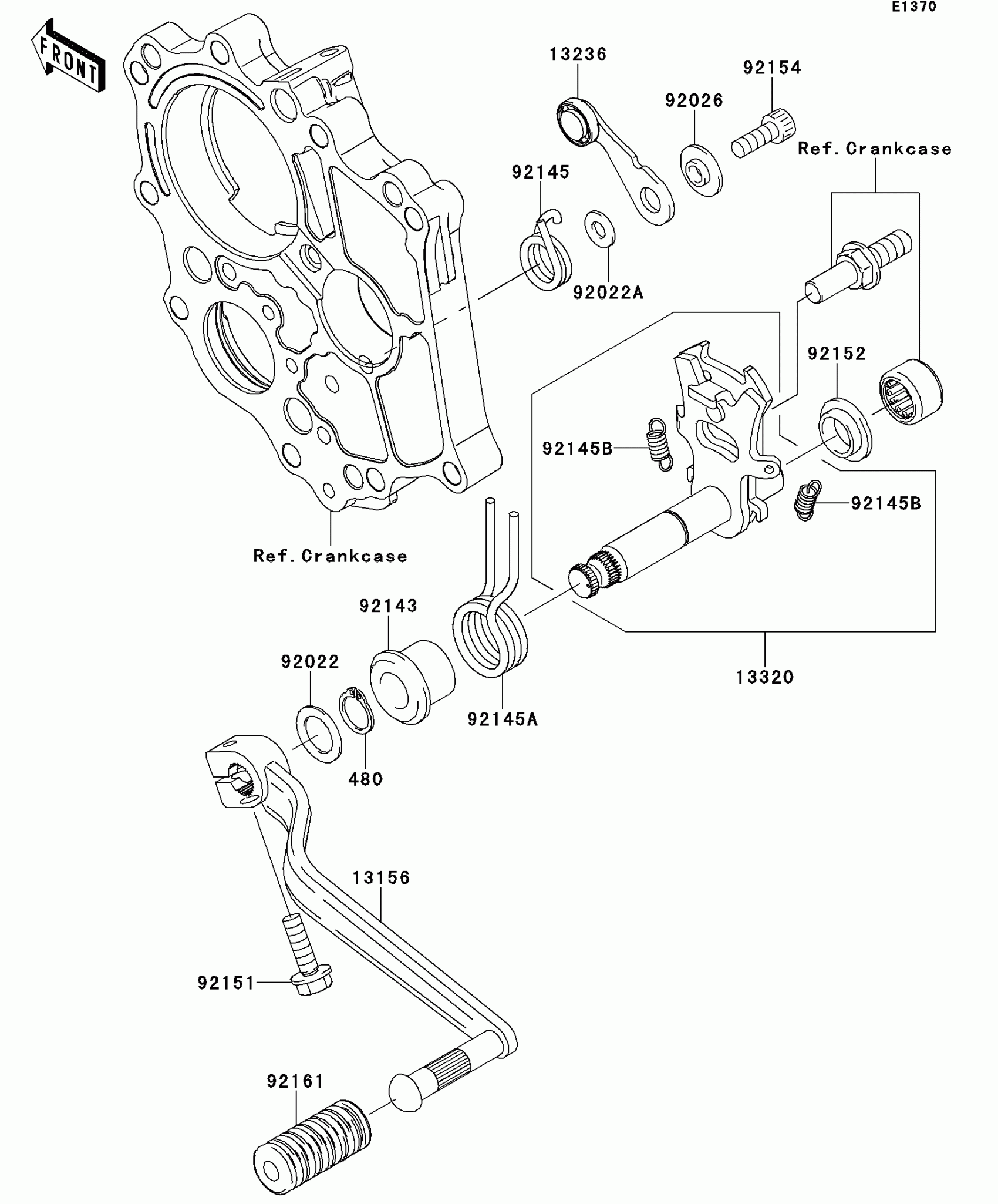

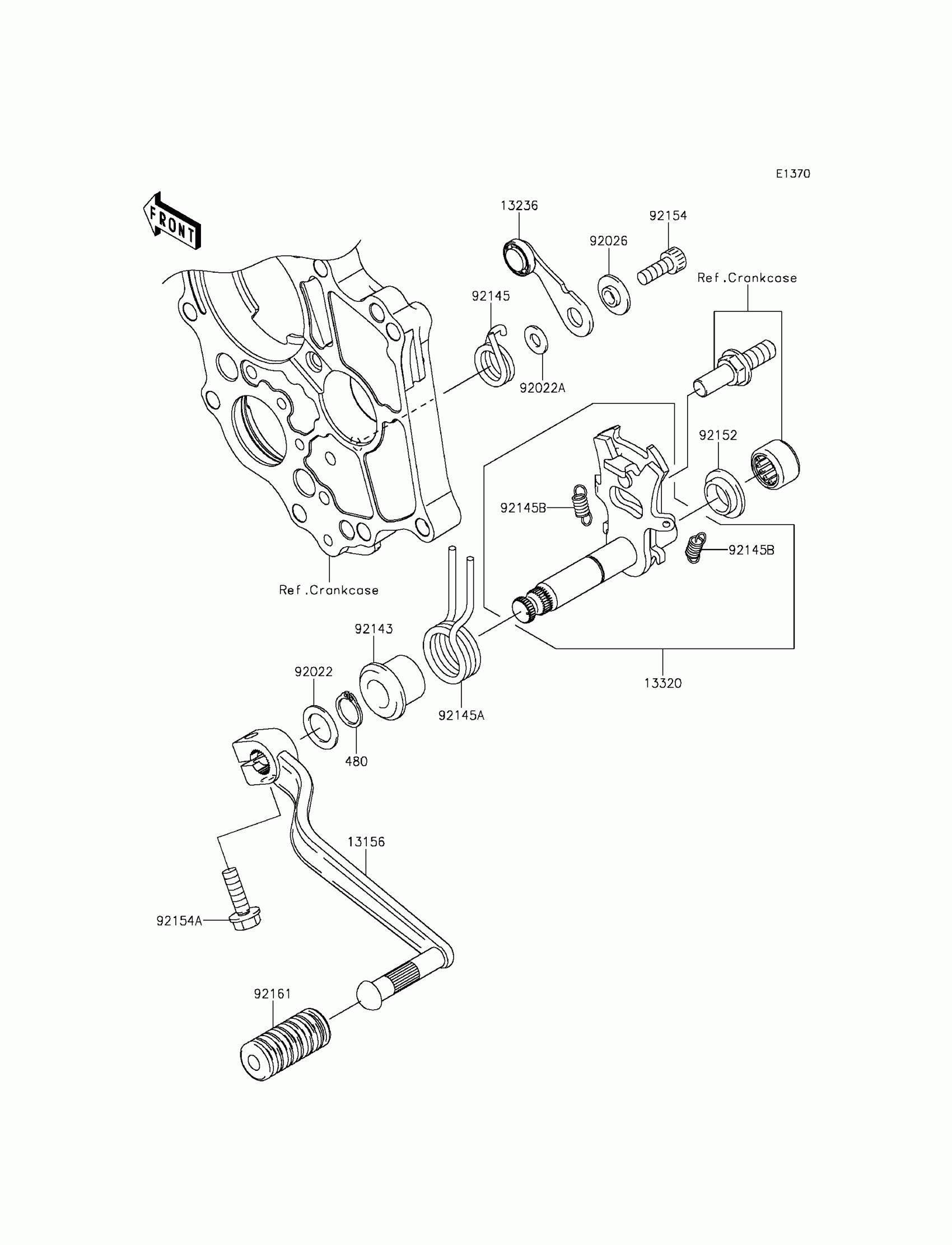

Kawasaki ER-6n Gear Change Mechanism Diagram

Description

Price

13156

LEVER-CHANGE,PEDAL

13156-0130

$52.65

13236

LEVER-COMP,POSITION

13236-0170

$9.03

13320

LEVER-ASSY,CHANGE SHAFT

13320-0019

$65.73

92022

WASHER,13.3X20X1

92022-1496

$2.99

92022A

WASHER,6X12.8X1.2

92022-1827

$3.57

92026

SPACER

92026-1217

$4.18

92143

COLLAR,RETURN SPRING

92143-1498

$8.10

92145

SPRING,POSITION

92145-0304

$2.95

92145A

SPRING,RETURN

92145-0326

$5.27

92145B

SPRING,5.5X0.7X18

92145-0703

$3.24

92151

BOLT,FLANGED,6X20

92151-1226

$1.76

92152

COLLAR

92152-1075

$3.19

92154

BOLT,SOCKET,6X16

92154-0235

$2.08

92161

DAMPER,CHANGE PEDAL

92161-1300

$4.65

480

CIRCLIP-TYPE-C,13MM

480J1300

$2.99
