2010 Kawasaki Er-6n Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2010 Kawasaki Er-6n, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

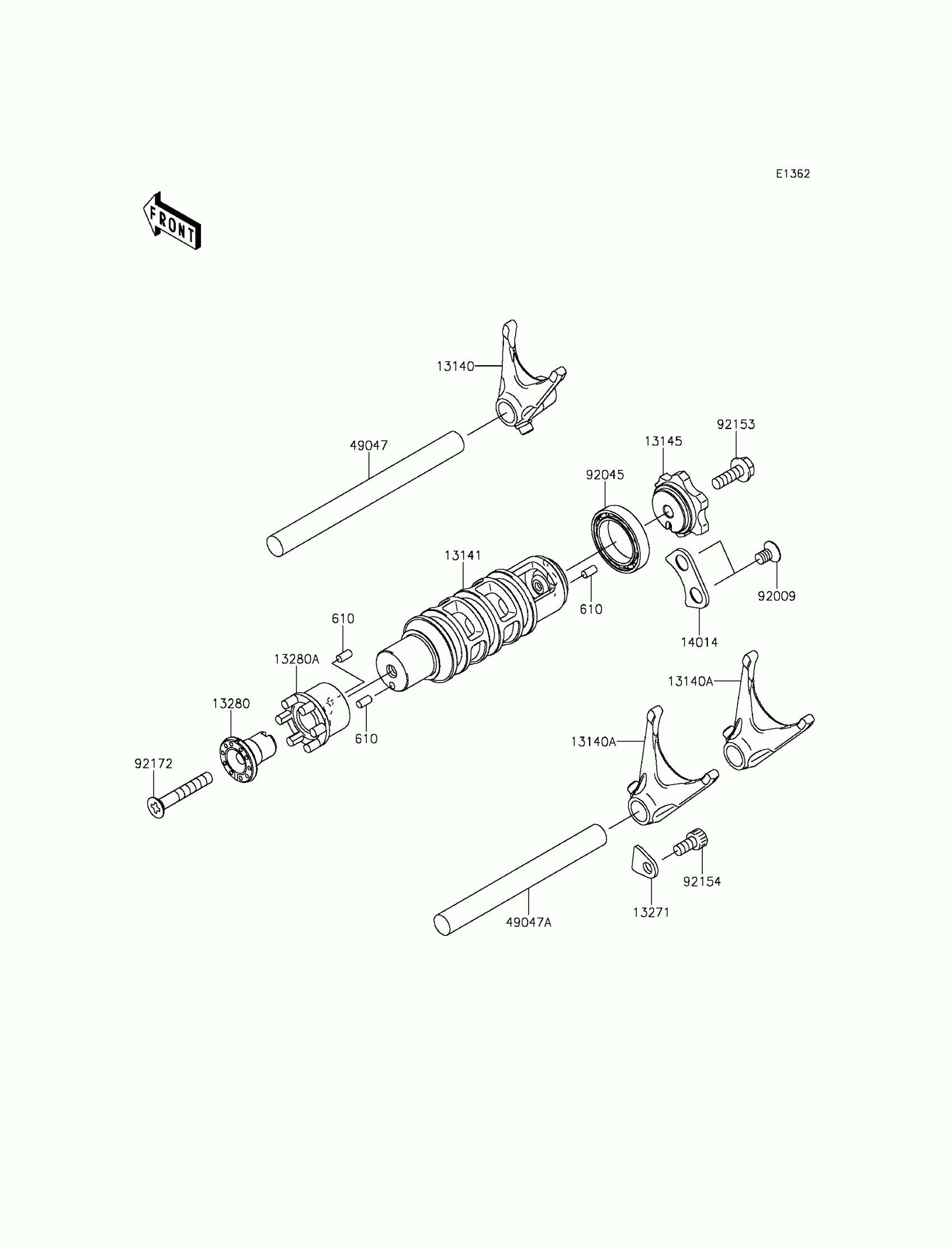

2010 Kawasaki Er-6n Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13140

FORK-SHIFT,INPUT

13140-0025

1
Out of stock

13140A

FORK-SHIFT,OUTPUT

13140-0026

1
Out of stock

13141

DRUM-CHANGE

13141-0018

1
Out of stock

13145

CAM-CHANGE DRUM

13145-0020

1
Out of stock

13271

PLATE

13271-0626

1
Out of stock

13280

HOLDER,NEUTRAL SWITCH

13280-0183

1
Out of stock

13280A

HOLDER

13280-0192

1
Out of stock

14014

PLATE-POSITION

14014-0018

1
Out of stock

49047

ROD-SHIFT,INPUT

49047-0029

1
Out of stock

49047A

ROD-SHIFT,OUTPUT

49047-0030

1
Out of stock

92002

BOLT,SOCKET,6X12

92002-1796

1
Out of stock

92009

SCREW,6X10

92009-1375

1
Out of stock

92045

BEARING-BALL,6805

92045-1122

1
Out of stock

92153

BOLT,FLANGED,6X18

92153-0958

1
Out of stock

92172

SCREW-CSK-CROS,6X40

92172-0209

1
Out of stock

610

ROLLER,4X8

610A0408

1
Out of stock
