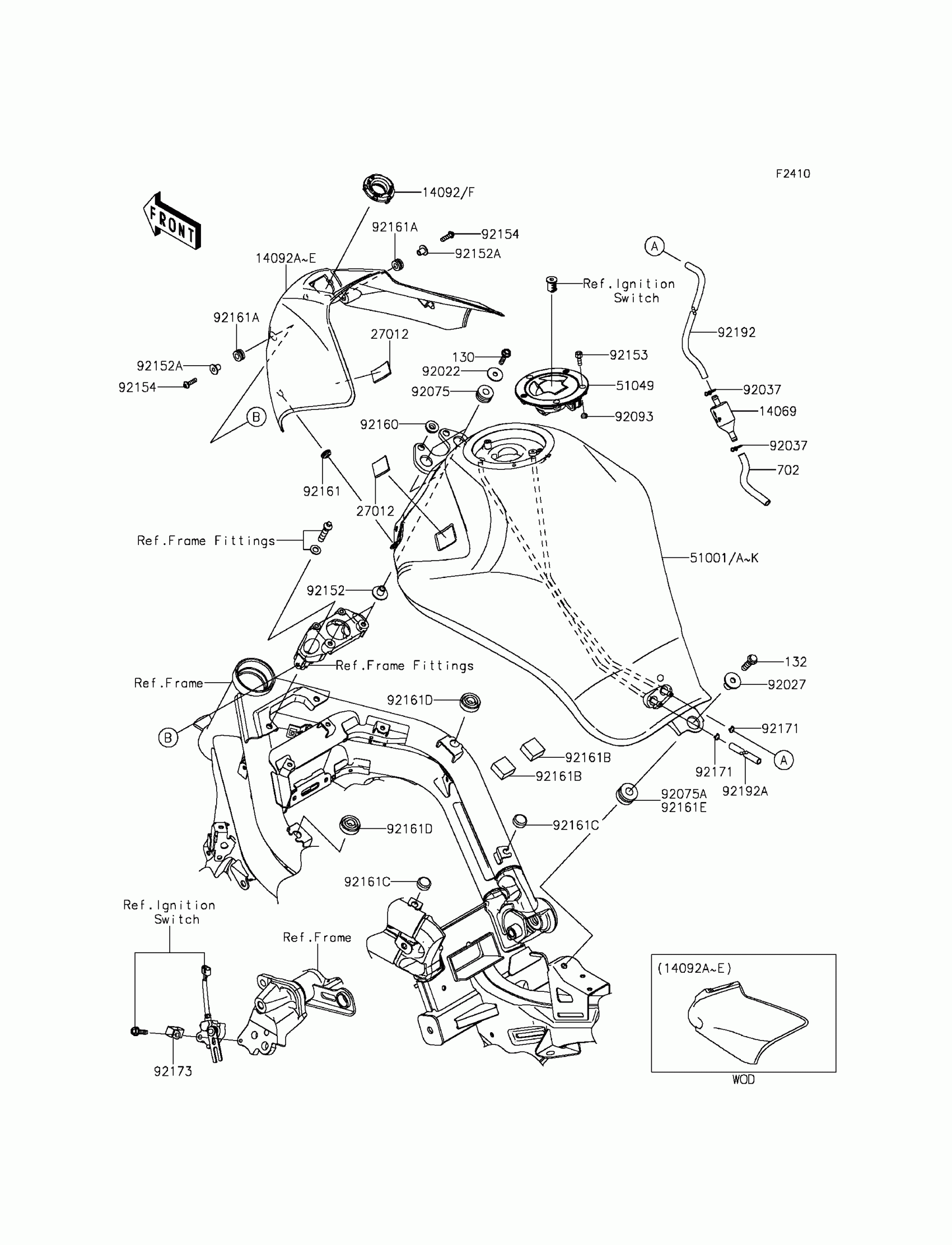

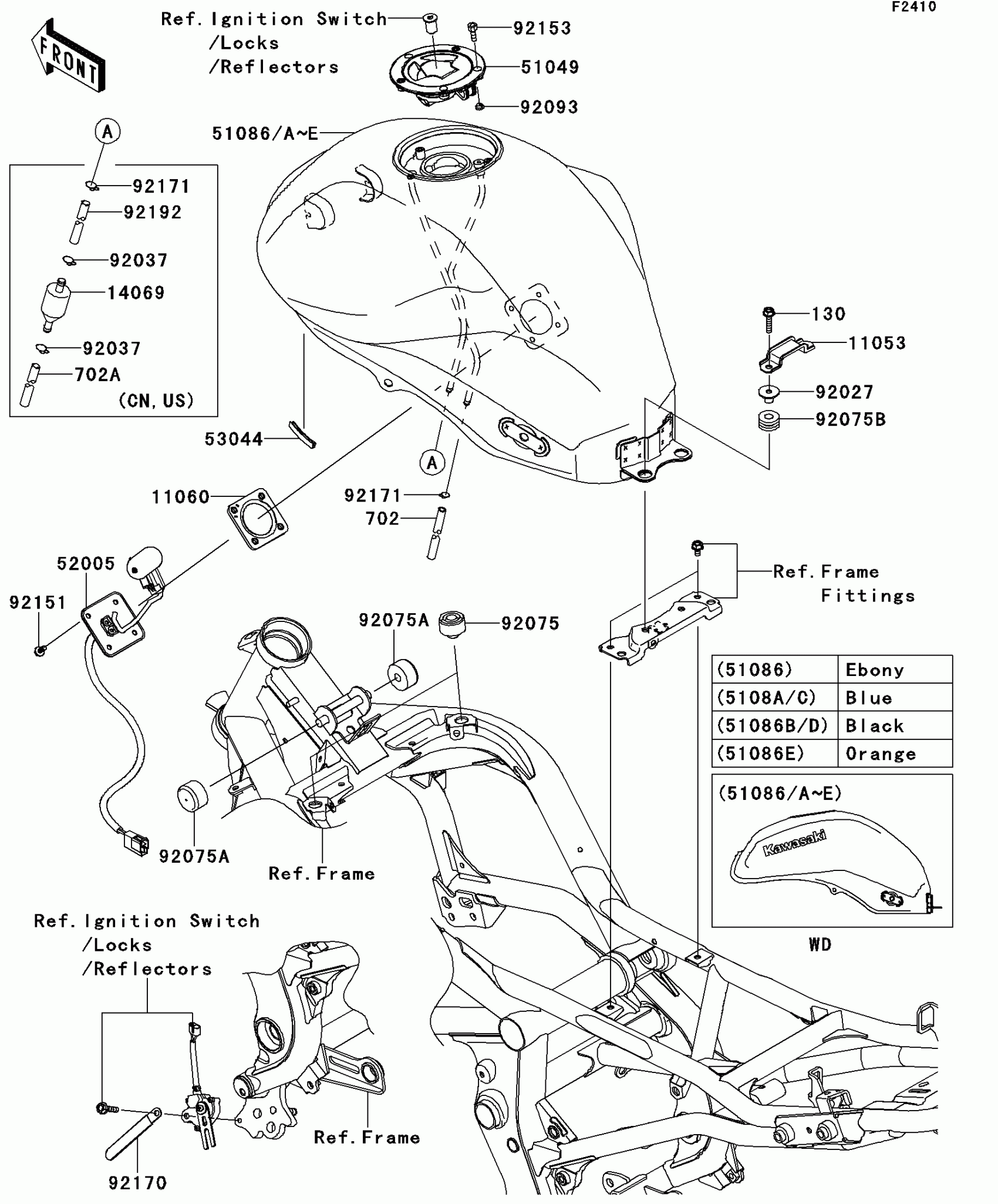

Kawasaki ER-6n Fuel Tank Diagram
#
Description
Price
14069
BREATHER,FUEL TANK
14069-1004
$10.19
14092B
COVER,TANK,C.L.GREEN
14092-0731-51P
$201.93
14092C
COVER,TANK,U.C.WHITE
14092-0731-53Q
$201.93
14092E
COVER,TANK,M.F.S.BLACK
14092-0731-739
$201.93
14092F
COVER,IGNITION SW.
14092-1033
$5.01
27012
HOOK,DUAL LOCK FASTENER
27012-0717
$7.64
51001I
TANK-COMP-FUEL,M.C.GRAY
51001-0708-51A
Unavailable
51001K
TANK-COMP-FUEL,M.S.BLACK
51001-0708-660
$1,091.78
51049
CAP-TANK,FUEL
51049-0039
$136.23
92022
WASHER,7X24X1.6
92022-228
$3.92
92027
COLLAR,L=19.3
92027-1780
$6.57
92037
CLAMP,TUBE
92037-147
$7.34
92075
DAMPER,10X24X12
92075-1690
$5.00
92093
SEAL,FUEL TANK CAP
92093-1030
$7.77
92152
COLLAR,6.5X10X13.1
92152-0910
$1.63
92152A
COLLAR,5.6X8X11.2
92152-1562
$2.67
92153
BOLT,SOCKET,5X16
92153-1616
$1.34
92154
BOLT,SOCKET,5X20
92154-0210
$2.12
92160
DAMPER
92160-1613
$3.74
92161
DAMPER
92161-0631
$7.37
92161A
DAMPER,8X16X8.6
92161-0685
$6.61
92161B
DAMPER,T=13
92161-0792
$3.71
92161C
DAMPER,10X20X8
92161-0855
$4.25
92161D
DAMPER,14X30X10
92161-1368
$2.32
92161E
DAMPER,12X28X17
92161-1494
$3.02
130
BOLT-FLANGED,6X25
130CA0625
$4.45
132
BOLT-FLANGED-SMALL,8X30
132BA0830
$4.45
702
TUBE-RUBBER
702A07100
$13.38
92171
CLAMP,8X0.7
92171-1973
$1.34
92173
CLAMP
92173-0833
$3.74
92192
TUBE,6X9X631
92192-0966
$12.11
92192A
TUBE,6X9X821
92192-1091
$13.43
