2016 Kawasaki Er-6n Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 2016 Kawasaki Er-6n, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

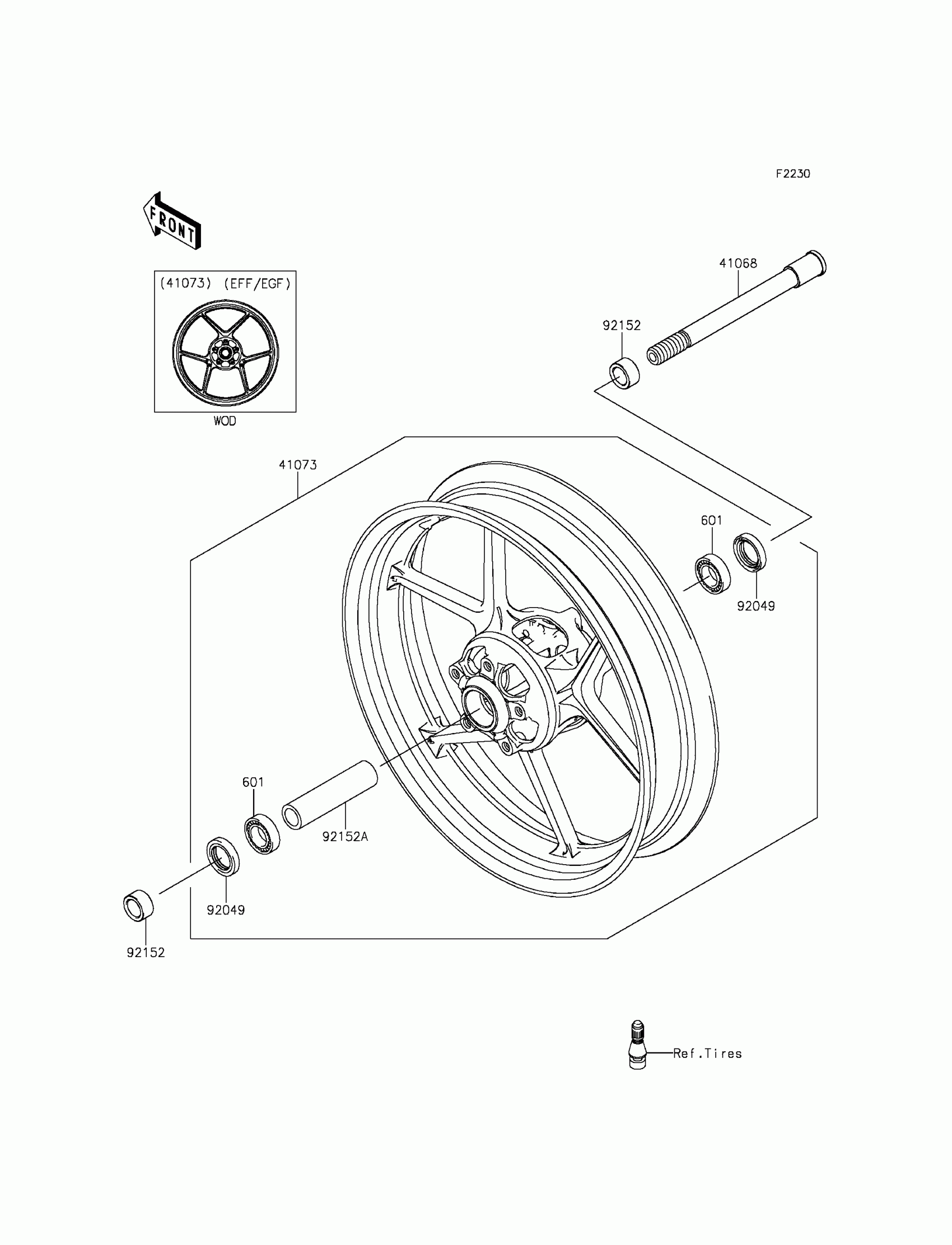

2016 Kawasaki Er-6n Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

1

$26.40

In stock

41068

AXLE,FR

41068-0059

1

$85.12

In stock

41073

WHEEL-ASSY,FR,G.BLACK

41073-0567-QT

1

$759.46

In stock

92049

SEAL-OIL,BJN30427

92049-0130

1
Out of stock

92152

COLLAR,20X30X15.5

92152-0946

1

$9.96

In stock

92152A

COLLAR,20.2X28X115

92152-0958

1

$28.95

In stock
