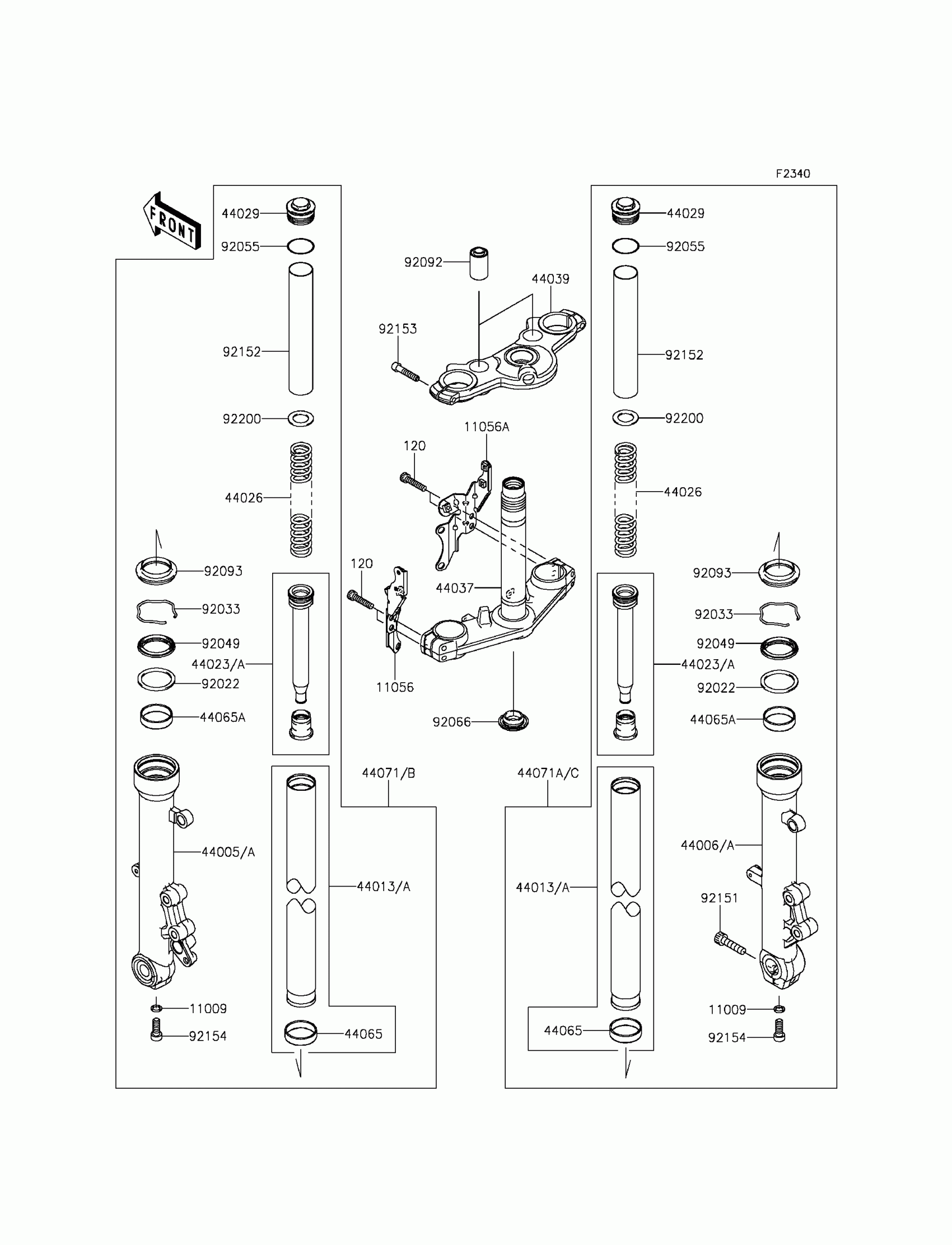

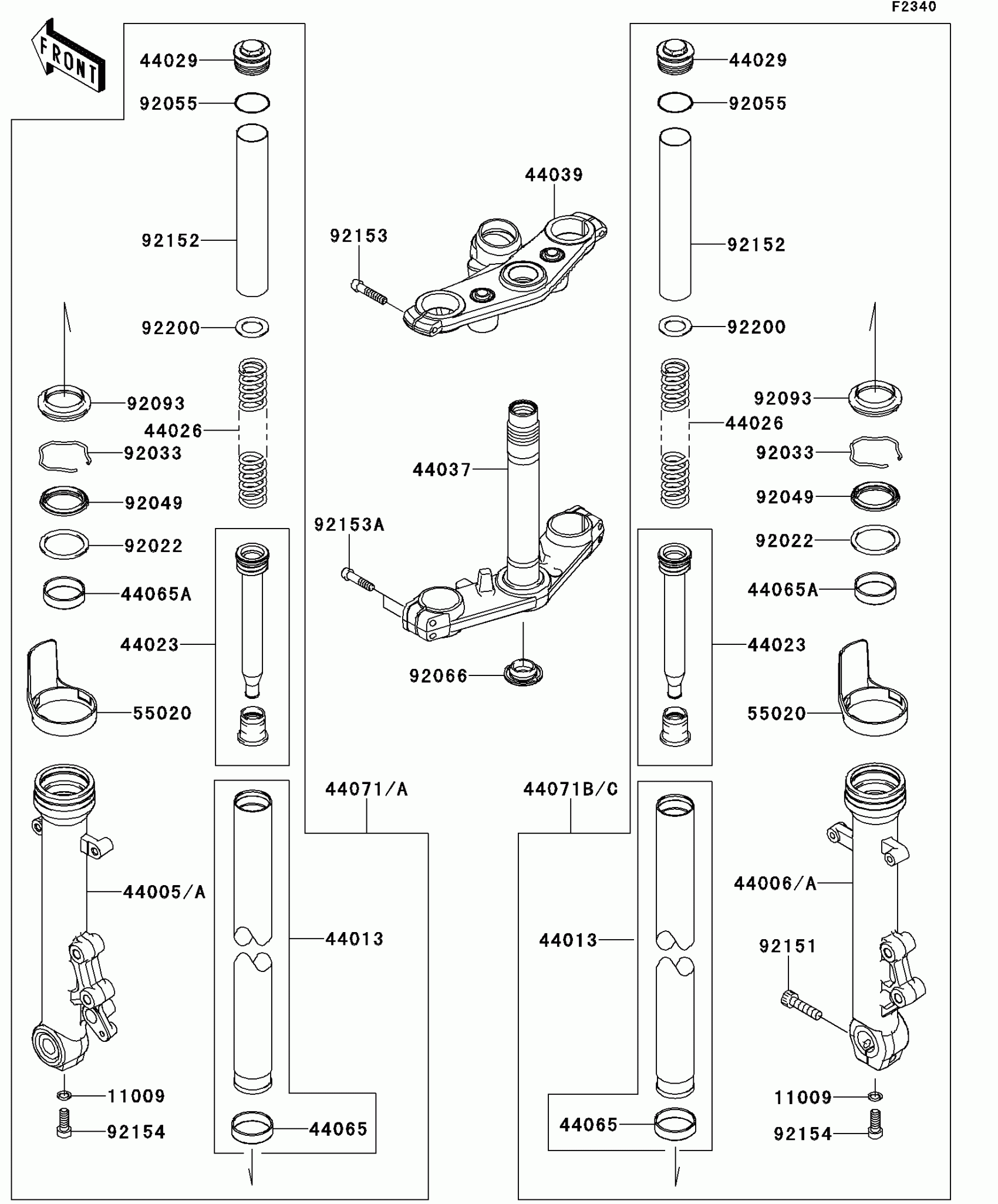

Kawasaki ER-6n Front Fork Diagram
#
Description
Price
120
BOLT-SOCKET,8X35
120CA0835
$2.80
11009
GASKET,10.5X15X1.5
11009-1325
Unavailable
11056
BRACKET,FORK COVER,LH
11056-0884
Unavailable
11056A
BRACKET,FORK COVER,RH
11056-0885
Unavailable
44005A
PIPE-LEFT FORK OUTER,S.BLACK
44005-0108-32A
$312.25
44006A
PIPE-RIGHT FORK OUTER,S.BLACK
44006-0108-32A
$312.20
44013A
PIPE-FORK INNER
44013-0263
$459.67
44023A
CYLINDER-SET-FORK
44023-0128
$110.11
44026
SPRING-FRONT FORK
44026-0165
$61.36
44029
SEAT-FORK SPRING
44029-0005
$44.62
44037
HOLDER-FORK UNDER,F.S.BLACK
44037-0119-18R
$377.28
44039
HOLDER-FORK UPPER,F.S.BLACK
44039-0121-18R
$377.28
44065
BUSHING-FRONT FORK,INNER TUBE
44065-0014
$29.57
44065A
BUSHING-FRONT FORK,OUTER TUBE
44065-1115
$28.71
44071B
DAMPER-ASSY,FORK,LH,S.BLACK
44071-1110-32A
$650.15
44071C
DAMPER-ASSY,FORK,RH,S.BLACK
44071-1111-32A
$650.12
92022
WASHER,FORK OUTER TUBE
92022-1298
$8.58
92033
RING-SNAP
92033-1036
$6.51
92049
SEAL-OIL
92049-0073
$22.70
92055
RING-O
92055-1321
$1.35
92066
PLUG
92066-0032
$11.66
92092
BUSHING-RUBBER
92092-1090
$7.56
92093
SEAL,FORK OUTER TUBE
92093-1472
$23.76
92151
BOLT,SOCKET,10X40
92151-1357
$3.99
92152
COLLAR,FORK
92152-0767
$13.68
92153
BOLT,SOCKET,8X40
92153-0506
$7.57
92154
BOLT,SOCKET,FORK CYLINDER
92154-0296
$3.52
92200
WASHER
92200-1302
$4.87
