Description

Price

482

CIRCLIP-TYPE-E,10MM

482EA0100

$1.04

482A

CIRCLIP-TYPE-E

482EA5000

$1.34

14092

COVER,PIVOT,LH

14092-0738

$49.44

14092A

COVER,PIVOT,RH

14092-0739

$45.12

32085

STOPPER,REAR STEP

32085-0047

$5.57

34028

STEP,RUBBER

34028-0133

$14.85

34028A

STEP,FR,LH

34028-0303

Unavailable

34028B

STEP,FR,RH

34028-0304

Unavailable

34028C

STEP,RR,LH

34028-0314

$45.71

34028D

STEP,RR,RH

34028-0315

$45.71

35063

STAY,STEP,LH,F.S.BLACK

35063-0871-18R

$345.41

35063B

STAY,STEP,RH,F.S.BLACK

35063-0872-18R

$345.41

55020

GUARD,STEP STAY,RH

55020-0742

$15.45

92043

PIN,12X37.5

92043-0026

$5.57

92043A

PIN,6X40

92043-0200

$3.02

92075

DAMPER

92075-1067

$4.69

92140

BALL,6.35MM

92140-0008

Unavailable

92145

SPRING,STEP RETURN

92145-0723

$3.67

92145A

SPRING

92145-1319

$1.81

92152

COLLAR,6.8X10X15.1

92152-0975

$3.02

92152A

COLLAR,10.6X13.8X15

92152-0976

$4.10

92153

BOLT,SOCKET,6X23

92153-1267

$2.80

92154

BOLT,SOCKET,5X16

92154-0026

$2.55

92154A

BOLT,BANK SENSOR

92154-0838

$5.33

92154B

BOLT,SOCKET,8X30

92154-0842

$4.10

92161

DAMPER

92161-0631

$7.37

92161A

DAMPER,14X26X13.9

92161-0946

$1.63

92161B

DAMPER,12X20X1

92161-1407

$0.85

92161C

DAMPER

92161-1523

$3.72

92172

SCREW-PAN-WP-CROS,5X14

92172-0473

$2.32

92200

WASHER,16X26X2.3

92200-0772

$3.74

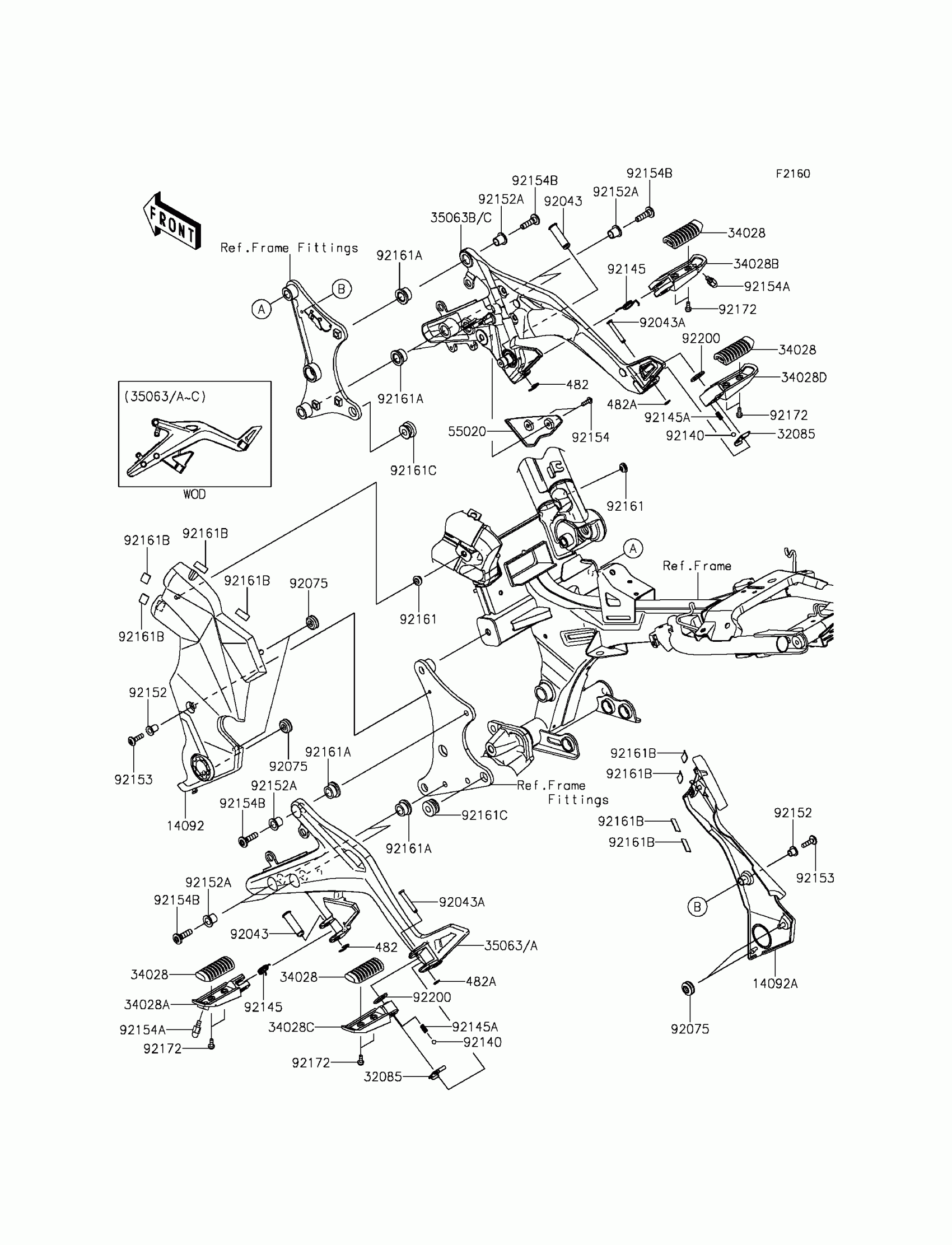

Kawasaki ER-6n Footrests Diagram

CIRCLIP-TYPE-E,10MM

CIRCLIP-TYPE-E

COVER,PIVOT,LH

COVER,PIVOT,RH

STOPPER,REAR STEP

STEP,RUBBER

STEP,FR,LH

STEP,FR,RH

STEP,RR,LH

STEP,RR,RH

STAY,STEP,LH,F.S.BLACK

STAY,STEP,RH,F.S.BLACK

GUARD,STEP STAY,RH

PIN,12X37.5

PIN,6X40

DAMPER

BALL,6.35MM

SPRING,STEP RETURN

SPRING

COLLAR,6.8X10X15.1

COLLAR,10.6X13.8X15

BOLT,SOCKET,6X23

BOLT,SOCKET,5X16

BOLT,BANK SENSOR

BOLT,SOCKET,8X30

DAMPER

DAMPER,14X26X13.9

DAMPER,12X20X1

DAMPER

SCREW-PAN-WP-CROS,5X14

WASHER,16X26X2.3
