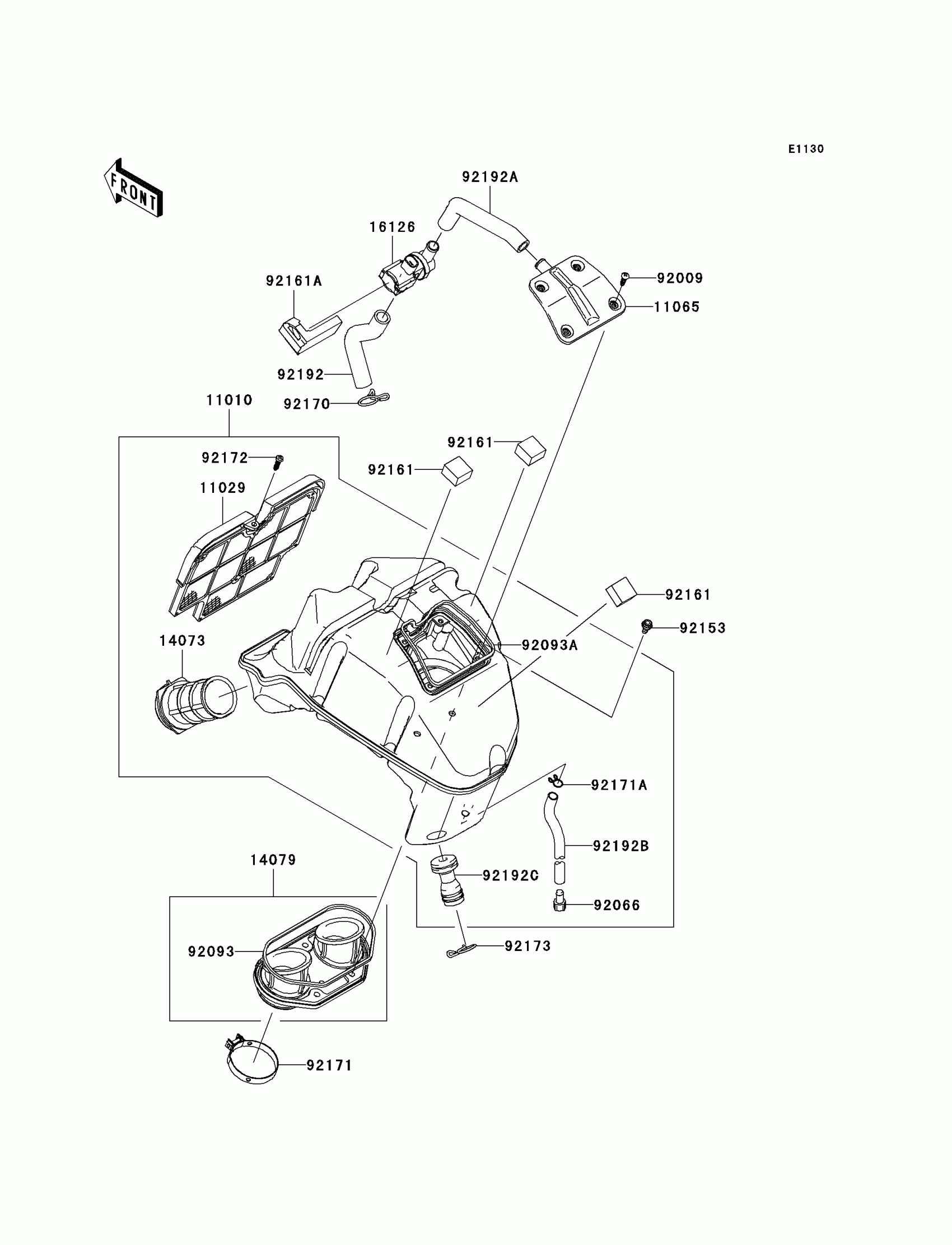

Kawasaki ER-6n (European) Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0156

$364.50

11029

ELEMENT-ASSY-AIR FILTER

11029-0011

$55.27

11065

CAP,UPPER CASE

11065-0120

$24.81

14073

DUCT,INLET

14073-0210

$30.70

14079

HOLDER-ASSY

14079-0064

$59.20

16126

VALVE,AIR SWITING

16126-0019

$90.36

92009

SCREW,TAPPING,5X16

92009-1984

$1.82

92066

PLUG,DRAIN,8.5X15

92066-0127

$8.19

92093

SEAL

92093-0046

$7.90

92093A

SEAL,CAP

92093-0142

$7.75

92153

BOLT,SOCKET,6X12

92153-0759

$1.55

92161

DAMPER,T=15

92161-0302

$3.66

92161A

DAMPER

92161-0309

$13.81

92170

CLAMP

92170-1017

$3.57

92171

CLAMP

92171-0314

$3.12

92171A

CLAMP,DRAIN

92171-1584

$5.98

92172

SCREW,TAPPING,5X20

92172-0298

$2.41

92173

CLAMP,22X2

92173-0001

$2.38

92192

TUBE,HEAD-ASV

92192-0232

$8.76

92192A

TUBE,A/C-ASV

92192-0680

$11.58

92192B

TUBE,8X12X245

92192-0709

$8.94

92192C

TUBE,BREATHER

92192-0818

$13.02
