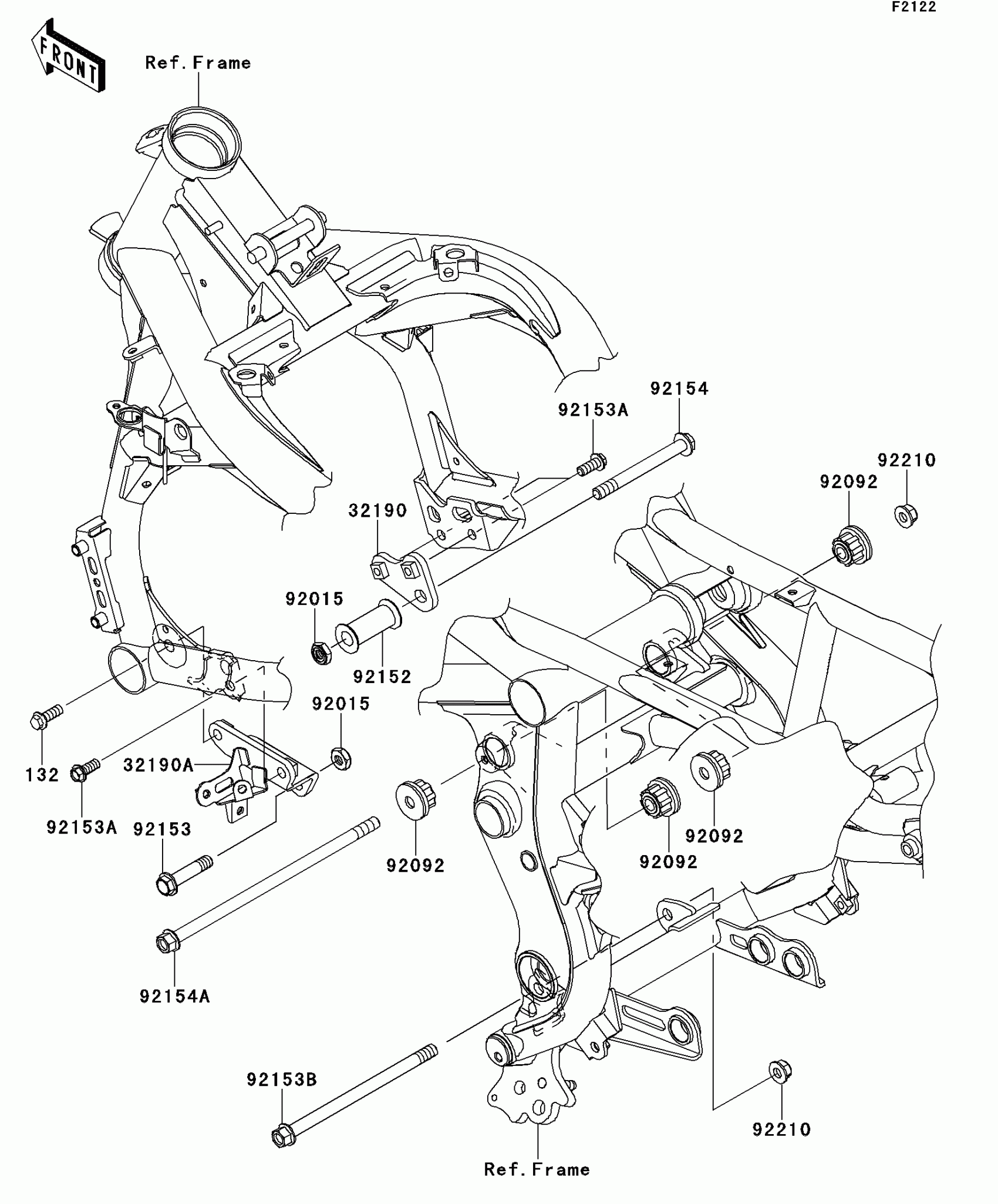

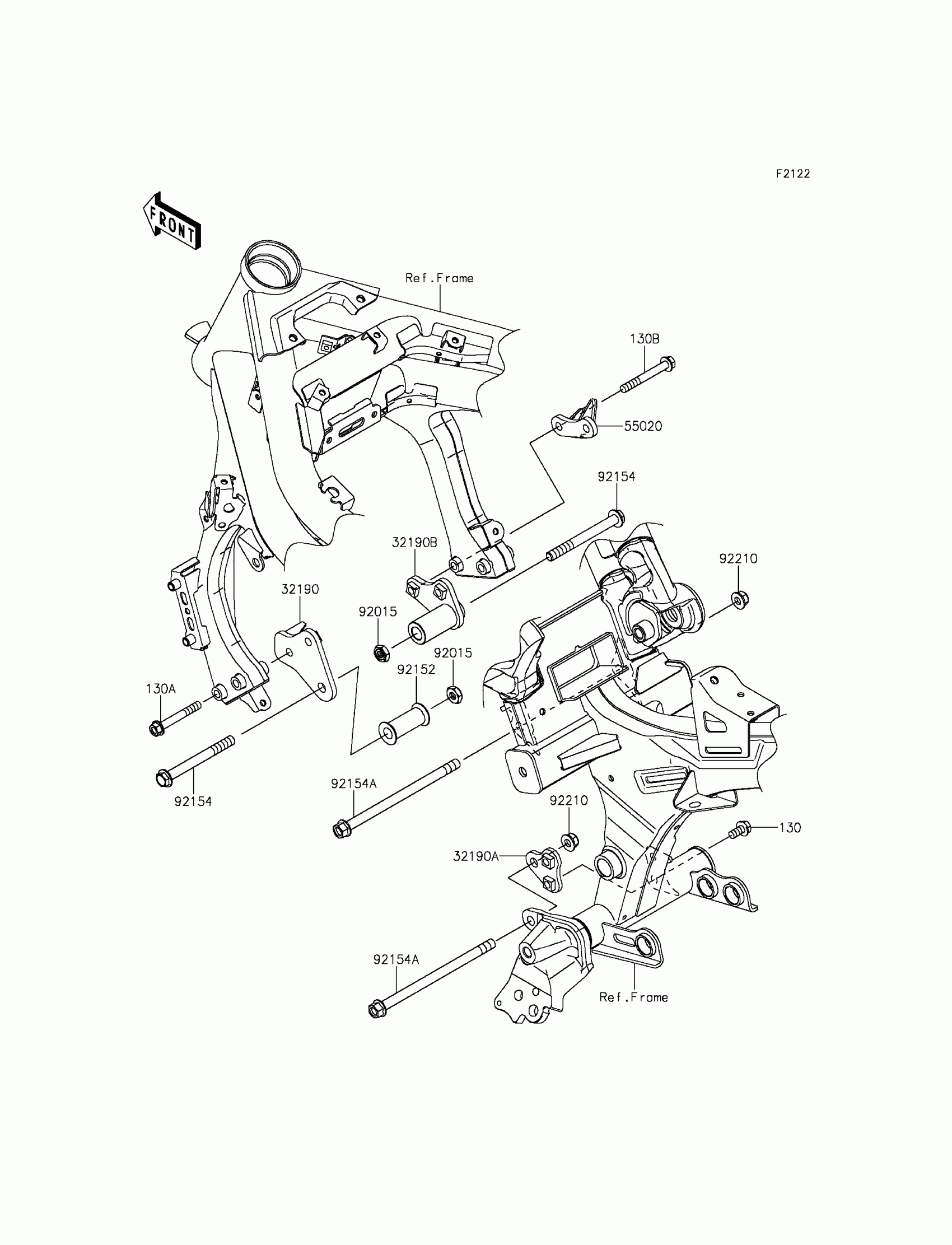

Kawasaki ER-6n Engine Mount Diagram

Description

Price

130

BOLT-FLANGED,8X16

130BA0816

$1.12

130A

BOLT-FLANGED,8X55

130BA0855

$2.25

130B

BOLT-FLANGED,8X65

130CA0865

$2.32

32190

BRACKET-ENGINE,FR,LH

32190-0558

$31.74

32190A

BRACKET-ENGINE,RR,RH

32190-0560

$6.63

32190B

BRACKET-ENGINE,FR,RH

32190-0599

$51.16

55020

GUARD,RESERVOIR

55020-0847

$13.99

92015

NUT,LOCK,10MM,BLACK

92015-1188

$6.22

92152

COLLAR,11X26X50.8

92152-0963

$14.90

92154

BOLT,FLANGED,10X110

92154-0716

$17.30

92154A

BOLT,FLANGED,10X170

92154-0840

$19.32

92210

NUT,LOCK,FLANGED,10MM

92210-1081

$12.35
